Place of Origin: | Shanghai, China |
---|---|
Brand Name: | DIKAI |
Certification: | CE |
Model Number: | D-EP |
Minimum Order Quantity: | 1 set |
Price: | US $1500-2080 per set |
Packaging Details: | Control Box |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T |
Supply Ability: | 80 set per month |
Name: | D-EP Thermal Inkjet | Print Tech: | HP TIJ 2.5 |
---|---|---|---|
Print Height: | Max 50.8mm | Head Quantity Supported: | Max 4 Heads |
Print Resolution: | 150-600 DPI | Print Speed: | 120m/min |
Ink Type: | Water/Solvent Based | Ink System: | UISS Ink System |
Optional: | Encoder Assembly | Warranty: | 1-Year |
Highlight: | 2 Heads Thermal Inkjet Printing,Water Based Thermal Inkjet Printing,25.4mm Date Batch Printing Machine |
D-EP Automatic Date Code Printing Machine Thermal Inkjet Printer
Thermal inkjet technology (thermal inkjet technology)
TIJ, for short, uses a thin film resistor to heat less than 0.5% of the ink in the ink ejection area to form a bubble. This bubble expands at a very fast speed (less than 10 microseconds), forcing ink droplets to be ejected from the nozzle. The bubbles continue to grow for a few microseconds and then disappear back to the resistor. When the bubble disappears, the ink in the nozzle retracts. Then surface tension will generate suction.
Print Tech | HP TIJ2.5 |
Print Height | Max 50.8mm |
Head Quantity Supported | 4 heads |
Print Resolution | 150-600DPI |
Print Speed | 120m/min |
Print content
|
Text, Time, Image, Database, Counter, Variable Barcode, Julian date, shift code, UDI, GS1, DATAMATRIX |
Ink Type | Water/Solvent based |
Ink System | Can use together with UISS ink system |

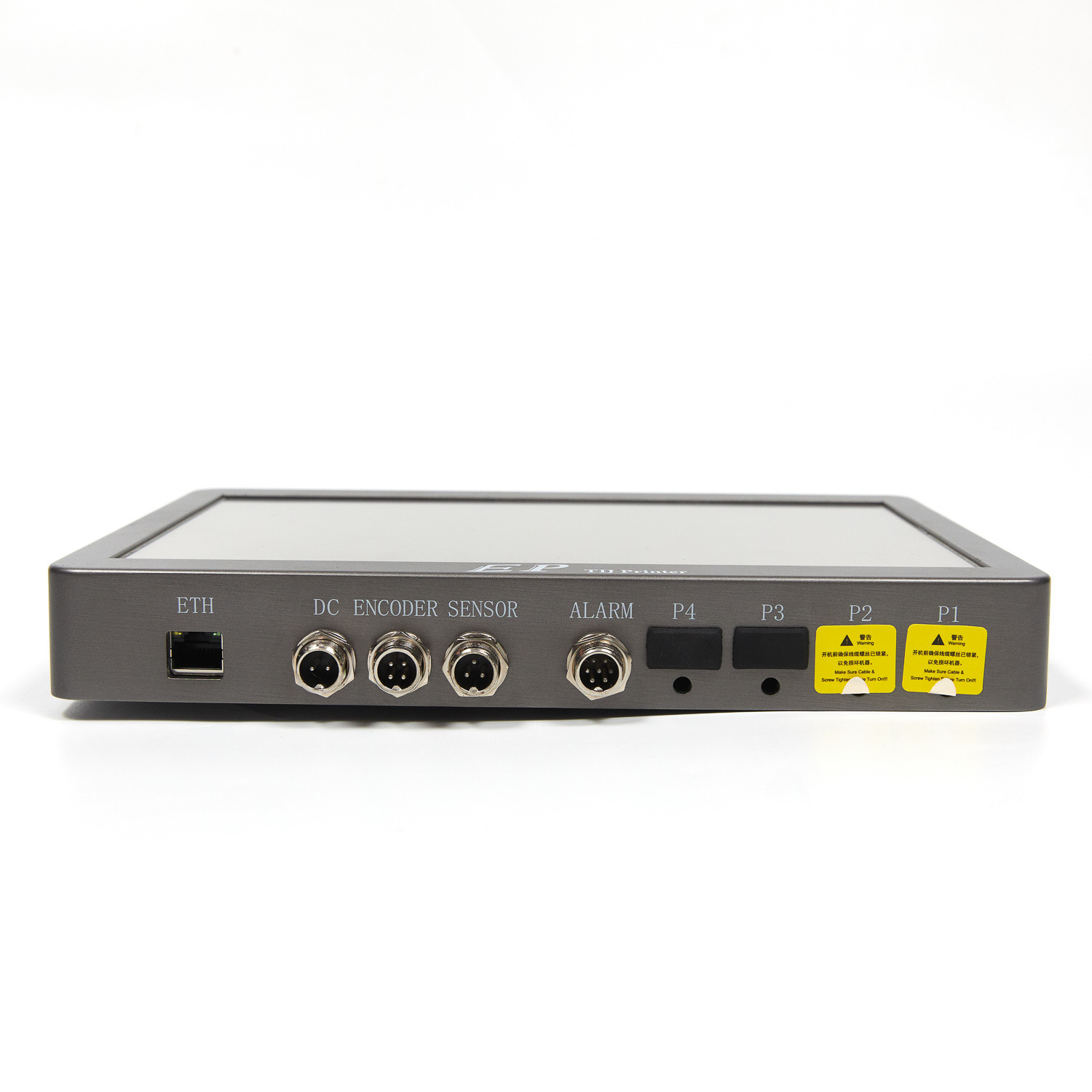

Interface | Warning Light/ USE |
Sensor | Simulation sensor/ External sensor |
Encoder | Simulation sensor/ External sensor |
The inkjet printer deflects the ink dots out of the normal flight path and shoots them at the surface of the work object, and controls the position of each ink droplet by using the electricity charged to the ink droplets. Usually, the ink drops only change in the vertical direction, so the printed object and the nozzle must move relatively before the data we want to print can be formed.
The printer logo has the following advantages:
non-contact
Because it is sprayed ink, it does not need to be in direct contact with the surface of the work, and will not damage the surface of the sprayed object.
Fast speed
Taking the production of soda cola as an example, the labeling speed can reach more than 1000 bottles per minute.
Easily edit and modify the content of jet printing data.
You can also add changeable data such as date and time, serial number, batch number, etc. when editing content without connecting to a computer, and insert the USB flash drive directly when printing pictures.
The surface materials of inkjet printers are widely used.
The inkjet printer has a variety of inks to choose from, whether it is paper, plastic, metal, glass, hard surface or soft and fragile surface.
Material Type
Metal Industrial Parts/ Metalized Labels/ High Barrier Films/ Machined Metal Parts/ Formed Metal Parts/ Containers/ Caps/ Aluminum Foil Lids/ Seal Wrappers/ Seal Bags/ Pouches/ Plastic Films/ Medicines/ Dispatch Boxes/ Decorative Labels/ Customized Packages/ Corrugate/ Cardboard Boxes
Industries
Soft Drinks/ Snack Food/ Pet Food/ Oil and Gas/ Extrusion/ Electronics/ Electrical/ Cosmetics/ Construction/ Confectionery/ Beverage/ Beer&Cider/ Automative/ Aerospace/ Pharmaceuticals/ Personal Care/ Industrial Components/ Food/ Dairy
