Place of Origin: | Shanghai, China |
---|---|
Brand Name: | DIKAI |
Certification: | CE |
Model Number: | DLF300 |
Minimum Order Quantity: | 1 set |
Price: | US $ 5600-7200 per set |
Packaging Details: | Printer & Control Box in one carton, Mounting Bracket in another carton. |
Delivery Time: | 10-14 work days |
Payment Terms: | T/T |
Supply Ability: | 80 set per month |
Product Name: | DLF Fiber Laser Machine | Marking Speed: | Max 200M/Min |
---|---|---|---|
Marking Area: | Standard 110mm*110mm | Line Speed: | 200m /min |
Operation System: | CE | Optic System Life Time: | 100,000 Hours |
Electrical Power Supply: | 800W | Interface: | Rs-232, Ethernet, USB |
Suitable Material: | Metal, Paper, Plastic, Film | Warranty: | 1 Year |
Highlight: | 26 Fonts Fiber Laser Marking Machine,Stainless Steel Fiber Laser Marking Machine,800W Metal Laser Engraving Machine |

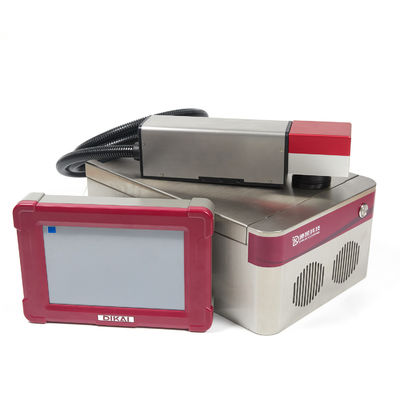

30W Fiber Laser Marking Machine Real Time Date Printer for Packagings
DLF-200/300 Fiber Laser is a compact size, lower maintenance, no consumables coding system and it provides permanent & high quality codings. The laser adopts intelligent vector control algorithm, marking speed is greatly improved. It can be commonly used in food, cosmetics and other industries to print high contrast and permanent message & logo on hard plastic, metal and other materials. The identification will be cleaner than CO2 laser marking on the non-metal applications. It is very suitable for the mark on films of flexible packagings.
Fiber Laser printer Spcifications:
Model | DLF200 | DLF300 | |
Application | Food&Beverage, Tubes,Metal , Electronics, Pharmaceutical, etc. | ||
Scan mode | X.Y axial simultaneous scan | ||
Marking mode | Flying mark | 120m/min | 200m/min |
Static mark | Multiple products can be mark simultaneously | ||
Marking laser | Type | Fiber Laser | |
Wavelength | 1064nm | ||
Output | 20W | 30W | |
Guide laser | Red light positioning | ||
Marking area | 110*110, 150*150, 175*175mm | ||
Focal distance | 163, 210, 254mm | ||
Scan speed | ≤8000mm/s | ||
Software controller | Linux system, 10 inch touch screen | ||
Character type | Fonts | Single/Double font, Dot-matrix font | |
Bar code | Code39/Code25/EAN-13/Code128, etc | ||
QR code | PDF147/QRCODE/DATAMATRIX | ||
Graphic | DXF/PLT format vector image input/output | ||
Marking condition | Marking status | Operation, Preparation, Error status | |
Character size | 0.1mm~Max Marking Area | ||
Input/Output | Two-way input/Three-way Output, support custom | ||
Connection | SD card/USB 2.0/Communication interface | ||
Laser installation direction | Arbitrary direction | ||
Cooling | Air cooling | ||
Power & Temp | Supply voltage | 100-220V AC, 50-60Hz | |
Power | 300W | ||
Workign temp | 0-40℃ | ||
Working humidity | 10%-90%(non-condensation) | ||
IP rate | IP54 | ||
Dimension | Weight | Laser body: 3.0KG; Controller: 1.7KG; | |
Specification | Laser body: 354mm*79mm*95mm; (L*W*H) Controller Screen: 305mmx207mmx56mm; (L*W*H) Controller box: 450mm*300mm*180mm; (L*W*H) |
||
*Note: Marking speed depends on packaging material and print content. |
Fiber Laser Printer Advantages:
1. No need maintenance
Something that businesses always have to consider is their overheads and costs, and fiber lasers are brilliant at keeping theses costs down. Not only are they a cost-effective solution in themselves which more than return their value in terms of their output, but they have extremely maintenance.
2. Compact size
You'll typically find that fiber lasers are smaller and more compact than many of their counterparts (making them easier to install into machines), which also makes them lighter too.
3. Low sensitivity
The way in which a fiber laser has been built and constructed means that is has been designed for low sensitivity. Other types of laser can be extremely sensitive, and if knocked can fall completely out of alignment, rendering them useless until fixed by and expert.
The way in which a fiber laser has been designed is the opposite to this, meaning you'll never have to worry about precise alignment or sensitivity! However, we're not saying you shouldn't treat your fiber laser delicately!
4. Superior perfomance
You'll also find that fiber lasers offer a superior performance over many of their counterparts. Fiber lasers provide a much higher level beam quality which can be highly focused to achieve extremely accurate levels of precision, as well as increased power densities.
This also means that tasks can be completed at a quicker rate and at a much lower power consumption. Again, the less power used means the less it will cost the business!
5. High reliability
Enhanced anti-electromagnetic design ensures stable operation in harsh environment
6. Ease of integration
Compact independent design, can be better integrated into the existing production line, can adapt to a variety of installation situations.
Print Samples:
