DK Coding, Marks Each Moment
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | DIKAI |
| Certification: | CE |
| Model Number: | DLC150 |
| Minimum Order Quantity: | 1 set |
| Price: | US $ 6284-4084 per set |
| Packaging Details: | Printer & Control Box in one carton, Mounting Bracket in another carton. |
| Delivery Time: | 10-14 work days |
| Payment Terms: | T/T |
| Supply Ability: | 80 set per month |
| Product Name: | DLC140i 30W CO2 Laser Coding Machine | Marking Speed: | 230 M/Min |
|---|---|---|---|
| Marking Area: | Standard 110mm*110mm Optional | CPS: | 1300 |
| Operation System: | CE | Optic System Life Time: | 100,000 Hours |
| Electrical Power Supply: | 750W | Interface: | Rs-232, Ethernet, USB |
| Suitable Material: | Metal, Paper, Plastic, Film | Warranty: | 1 Year |
| Highlight: | 50X50mm CO2 Laser Marking Machine,IP55 CO2 Laser Marking Machine,40w Laser Engraving Machine |
||

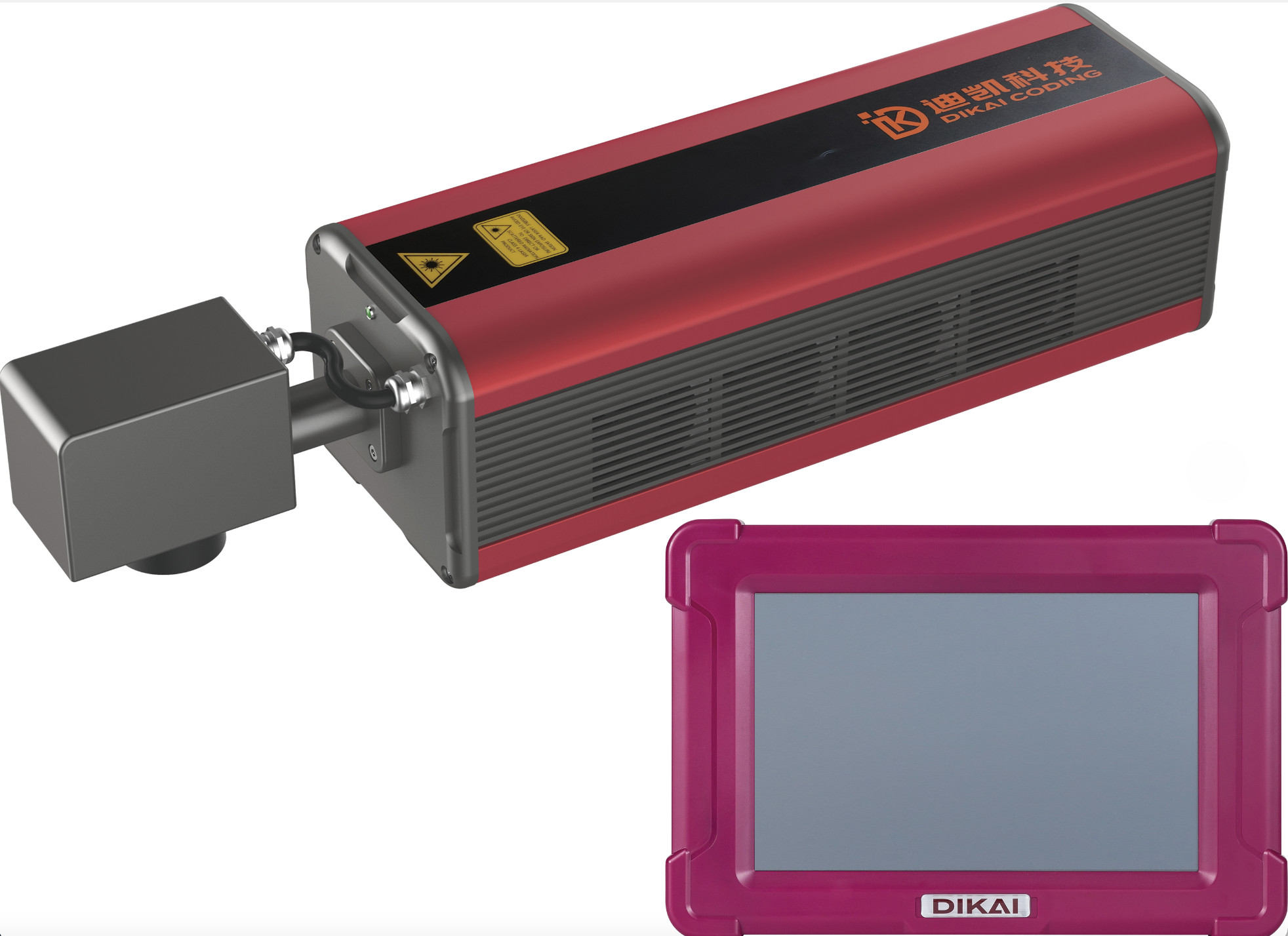

DlC150 50W CO2 Laser Marking Machine Metal Engraving Machine QR Code Marking
| Model | DLC130 | DLC150 | |
| Laser Type | Co2 Laser, wavelength=10.6μm, 10.2μm, 9.3μm,MTBF 50,000 hours | ||
| Laser Power | 30W | 50W | |
| Features | |||
| Scan Speed | ≤12000mm/s | ≤12000mm/s | |
| Speed | 200m/min | 300m/min | |
| Lines | unlimited within marking area | ||
| Height | 0.80mm - max. marking area | ||
| Font | 26 fonts, multiple languages, custom fonts | ||
| Bar Codes | Code39/Code25/EAN-13/Code128, etc. | ||
| QR Codes | PDF147/QR CODE/DATAMATRIX | ||
| Graphic | DXF/PLT format vector image input/output | ||
| Variable | serial number, text, date, time, counter, shift code | ||
| Marking Area | 50*50, 70*70, 90*90, 110*110, 140*140, 175*175, 210*210, 250*250, ~500 mm | ||
| Focal Distance | 75, 100, 130, 150, 200, 250, 300, 355, 435, 585, 720mm | ||
| Functions | 10.1 inch Color Touch Screen, QWEERTY or AZERTY Virtual Keyboard, Quick Icon Wizard Operation, Online Help, Multi-Language, Ethernet Remote PC Operation |
||
| Materials | Anodised aluminium | ||
| Input/Output | |||
| Sensor | NPN / PNP /24V sensor or Triger Signal | ||
| Encoder | Encoder or synchronzing signal | ||
| Signal Input | Two way input, support custom | ||
| Signal Output | Three-way output, support custom | ||
| Communication | SD card/USB 2.0/Communication interface | ||
| Facilities Condition | |||
| Power Supply | 110-220V AC,50-60Hz | ||
| Cooling | Air Cooling | ||
| Environment | 5-40C,10%-90%RH,no-condensing | ||
| IP Rate | IP54 | ||
| Optional | Joint bar, Mounting bracket, Fume extractor | ||
* The quantity of characters printed each second and production line speed depends on the surface material and marking content.
Laser Marker for Engraving, Printing and Coding Applictions
Easy-to-use Industrial Laser Markers to Apply Clean, Crisp Codes on Products
Laser marking is a non-contact printing method that marks or engraves high quality 1D or 2D bar barcodes, multiple lines of text, batch number, lot codes, logos etc on various products for tracking and tracing purposes.
Laser Markers offer advantanges over technologies including mark quality, permanence and fewer consumables. The Dikai line of laser marking machines includes CO2 Laser Marker, Fiber Laser Marker and UV Laser Marker in different power outputs to address a range of substrates and applications. In addition, Dikai even offers a comprehensiive portfolio of laser accessories including lensens and beam turning units to simplify integration into your production lines and maximize the laser's performance.
As line speeds increase to cope with more demanding production targets, manufacturers need easier, more efficient laser marking systems to print high quality permanent codes consistently on their products.
Dikai high performance CO2 laser marking machine deliver superior code quality along with reliability across a wide array of substrates including paperboard, plastic, PET, glass, coated metals. Dikai CO2 lasers can handle a variety of applications, form simple date coding to printing larger, more complex meassages.
Advantages of CO2 Lasers
