Place of Origin: | Shanghai |
---|---|
Brand Name: | DIKAI |
Model Number: | DSU5000 |
Minimum Order Quantity: | 1 set |
Price: | inquiry |
Delivery Time: | 10-14 work days |
Payment Terms: | T/T |
Supply Ability: | 80 sets per month |
Name: | DSU5000 UV Laser | Applications: | HDPE, Such As Food, Pipes, Chemical Products Etc. |
---|---|---|---|
Laser Type: | UV Laser | Wavelength: | 355nm |
Output: | 5W | Guide Laser: | Infrared Beam Positioning |
Scan Speed: | ≥12000mm/s | Cooling: | Water Cooling |
Power: | 1200W | Dimension: | 780mm*660mm*1480mm |
High Light: | 1200W UV Laser Marking Machine,Water Cooling UV Laser Marking Machine,355nm Laser Marking Machine For Glass |
UV Laser Marking Machine For Glass And All Metal And Part Non-Metal Material

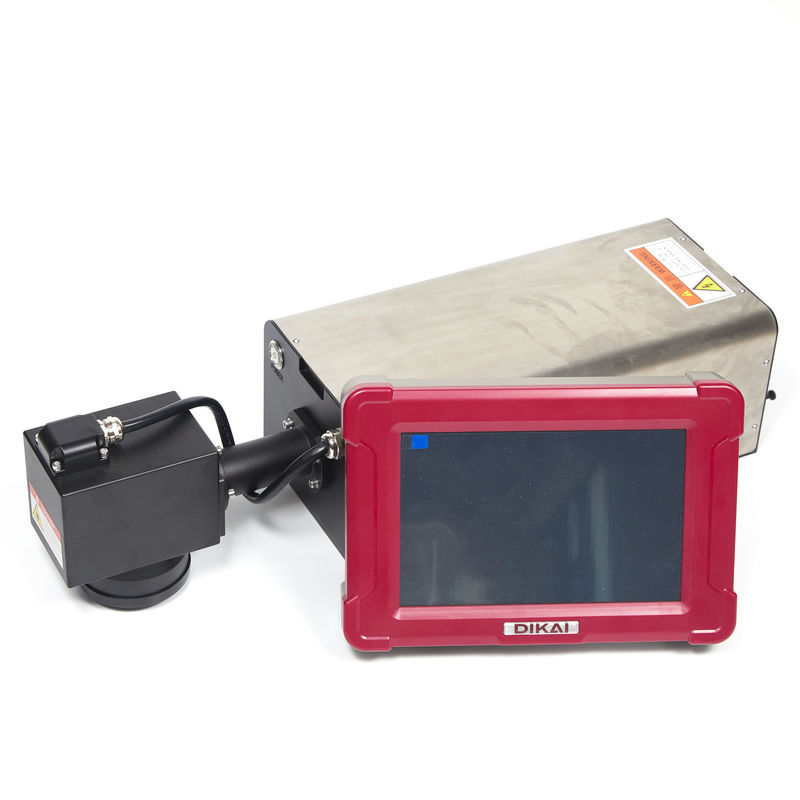

DSU5000 UV Laser
DSU5000 Laser coding machine, using a new intelligent vector control algorithm, marking speed greatly improved. The unique laser control technology can easily mark the best printing effect on the film material. Compact size, low maintenance, no consumbale, to provide permanent and high contrast marking to ensure product can be tracking, anti-counterfeiting and anti-channelization.
UV laser systems for permanent marking. The pharmaceutical, medical device, and cosmetic industries can utilize UV laser marking machines to deter tampering and counterfeiting, helping to ensure lifetime brand protection and tacebility.
Dikai is a global supplier of UV laser marking systems to provide permanent, high-grade readable codes regradless of product positioning to help consistently meet code quality requirements for potimal supply chain and vision system readability.
The ultraviolet laser marking machine belongs to a series of laser marking machines, but it is developed by using a 355nm ultraviolet laser. Compared with infrared laser, this machine adopts the third-order intracavity frequency doubling technology, and the 355 ultraviolet light focusing spot is extremely small, which can greatly reduce the mechanical deformation of materials and has little influence on processing heat. Because it is mainly used for ultra-fine marking and engraving, it is especially suitable for marking food and pharmaceutical packaging materials, making micropores, dividing glass materials at high speed and cutting complex patterns on silicon wafers.
Principe
The ultraviolet laser marking machine is a series of laser marking machines, so its principle is similar to that of laser marking machines, which use laser beams to mark permanent marks on the surfaces of various substances. The marking effect is to directly break the molecular chain of substances by short-wavelength laser (unlike the evaporation of surface substances produced by long-wavelength laser to expose deep substances), so as to show the patterns and characters to be etched.
High speed, High quality
Easy to install
Permanent identification
Low maintenance, Non consumable
Specifications
Applications | HDPE, Such as food, pipes, chemical products etc. | |
Scan Mode | X.Y axial simultaneous sacn | |
Marking Mode | 9000mm/s (Depend on Materials) | |
Marking Lase | Stastic Mark | Multiple products can be mark simultaneously |
Laser Type | UV Laser | |
Wavelength | 355nm | |
Output | 5W | |
Guide Laser | Infrared Beam Positioning | |
Marking Area | 70*70 110*110 175*175 300*300mm Optional | |
Scan Speed | ≥12000mm/s | |
Software Controller | WinCE Touch Screen | |
Character Type | Fonts | Single/ Double Font |
Bar Codes | Code39/Code25/EAN-13/Code128 | |
2D Codes | QRCode & DM | |
Graphic | PLT Input/Output | |
Marking Conditions | Marking Status | Product quantity etc. |
Character Size | 0.1mm-110mm | |
Input/Output | Sensor/Encoder | |
Connection | SD card/USB2.0/Communication interface | |
Laser Installation Direction | No Limited | |
Cooling | Water Cooling | |
Power&Temp | Supply Voltage | AC220V 50Hz |
Power | 1200W | |
Storage Temperature | -10℃-45℃(No freeze) | |
Working Temperature | ||
Environment Resistance | Storage Humidity | 10%-85% (No condensation) |
Workin Humidity | ||
Pollution Degree | No chemicals are produces | |
Dimension | Weight | 120KG |
Specification | 780mm*660mm*1480mm | |
*Print characters per second, production line speed depends on packaging material and print content |
