36mm*32mm Black Hot Ink Rollers Customized For MRP Expiry Date

36mm*32mm Black Hot Ink Rollers Customized For MRP Expiry Date
36mm*32mm Black Hot Ink Rollers Customized For MRP Expiry Date 36mm*32mm Black Hot Ink Rollers Customized For MRP Expiry Date 36mm*32mm Black Hot Ink Rollers Customized For MRP Expiry Date 36mm*32mm Black Hot Ink Rollers Customized For MRP Expiry Date 36mm*32mm Black Hot Ink Rollers Customized For MRP Expiry Date 36mm*32mm Black Hot Ink Rollers Customized For MRP Expiry Date 36mm*32mm Black Hot Ink Rollers Customized For MRP Expiry Date 36mm*32mm Black Hot Ink Rollers Customized For MRP Expiry Date 36mm*32mm Black Hot Ink Rollers Customized For MRP Expiry Date
Basic Information
Place of Origin: Shanghai
Brand Name: DIKAI
Model Number: DKW816
Minimum Order Quantity: 120 pieces
Price: US $1 / piece
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100000 Pieces per Month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Name: DKW816 Hot Ink Roll Type: Solid Ink Roller
Colors: Black, Red, White, Blue Outer Diameter: 36mm, 40mm
Other Sizes: Can Be Customized Life Time: At Least 80,000 Lines/ Roll
Length: 10, 16, 32, 36, 40mm Brand Name: DIKAI
High Light:

36mm*32mm Hot Ink Rollers

,

Customized Hot Ink Rollers

,

Customized Black Ink Roller

Hot Ink Rollers 36mm*32mm Black Hot Ink Rolls For MRP Expiry Date 2 Buyers
Product Overview



Dikai DKW816 HOT INK ROLLER
Dikai DKW816 HOT INK ROLLER is suitable to be used on any ink roll coders available in the market to print MFG/ EXP date and lot/ batch numbers, etc on packing films like PP, PE, PVC etc. With excellent characteristics, they are able to produce at high speed with instant dry and highly legible printing that has a good adhesion and rub resistant property.
Features
(1) Various colors

(2) Consistent life

(3) Quick dry ink, provides no mess and solvent free printing

36mm*32mm Black Hot Ink Rollers Customized For MRP Expiry Date 0
36mm*32mm Black Hot Ink Rollers Customized For MRP Expiry Date 1
Black Ink Roller
36mm*32mm Black Hot Ink Rollers Customized For MRP Expiry Date 2

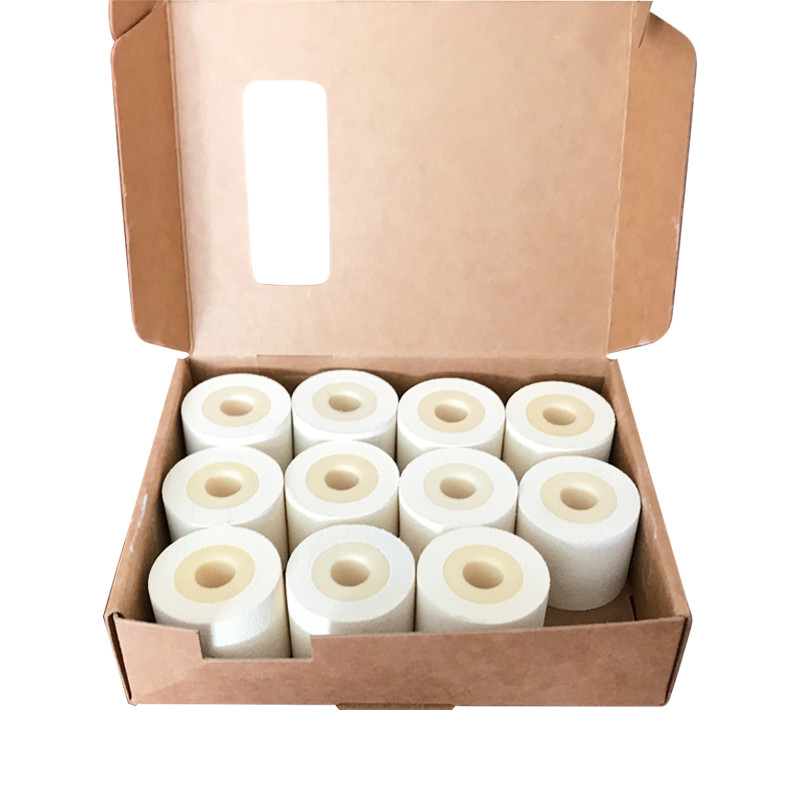

White Ink Roller
36mm*32mm Black Hot Ink Rollers Customized For MRP Expiry Date 3

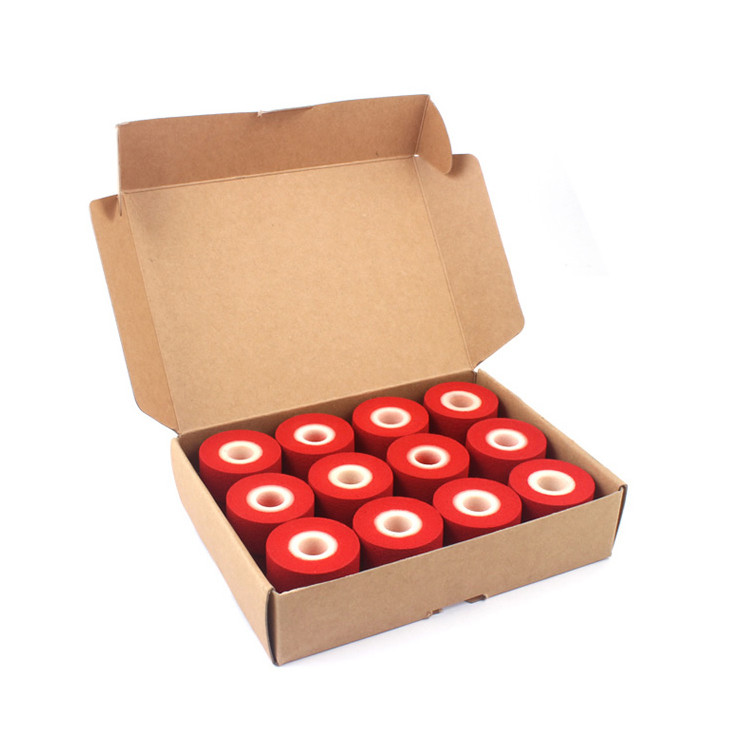

Red Ink Roller
Specification
1
Size
Φ36 x 10mm, Φ36 x 16mm, Φ36 x 32mm, Φ40 x 40mm and
other sizes and specifications can be customized
2
Temperature range
90 - 125°C

Packaging & Shipping
36mm*32mm Black Hot Ink Rollers Customized For MRP Expiry Date 4
1. Initial position of the character wheel and installation of the head Before installing the printer head on the frame, rotate the character wheel of the head to the initial position: that is, the two notches on the rubber wheel of the character wheel are in the vertical position and the character wheel is locked. Install the print head on the frame through the connecting block. At this time, the lower notch on the rubber wheel of the character wheel should face the rubber wheel, but not contact with it.
2. Installation bracket The frame of the coding machine should be installed in a place that does not affect the packaging machine and is convenient for printer operation; After the frame is installed, it should be firm enough, and the cots and film guide rollers of the packaging machine should be ensured, otherwise, the film running stability of the packaging film will be affected. After the frame is installed, the packaging film should be able to easily bypass between the character wheel of the printer and the cots, and at the same time form a certain wrap angle on the cots.
3. Installation of the proximity switch (or photoelectric switch) The printing signal of the coding machine is generated by the proximity switch (or photoelectric switch). When using the proximity switch, the sensing piece is usually installed on the horizontal sealing cutter shaft or other shafts synchronized with the cutter shaft of the packaging machine, so that the proximity switch can generate a printing signal every time the cutter shaft rotates, and drive the printer to complete printing once. The sensing piece shall be metal sheet with a width of about 15mm. If photoelectric switch is used, the color code photoelectric sensor is used to sense the color code on the packaging film to generate a printing signal.
4. The printing signal provided by the packaging machine is obtained by the packaging machine, and a pair of normally open contacts of relays controlled by the color standard photoelectric eye or synchronized with the cutter shaft can be adopted.

Tag:

36mm Hot Ink Rollers,

36mm Printing Ink Roller,

Rub Resistant Solid Ink Roller
