Place of Origin: | Shanghai, China |
---|---|
Brand Name: | DIKAI |
Certification: | CE |
Model Number: | D05S |
Minimum Order Quantity: | 1 set |
Price: | US $ 3500-3200 / set |
Packaging Details: | Printer & Control Box in one carton, Mounting Bracket in another carton. |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T |
Supply Ability: | 600 sets per month |
Name: | D05S Thermal Transfer Overprinter | Print Head: | 53mm Width, 300 Dpi (12dots/mm) |
---|---|---|---|
Max Print Area: | 53mm*150mm | Print Speed: | 2-36m/minute |
Consumable: | Thermal Transfer Ribbon | After-sales Service Provided: | 24-hour Online Service |
Print Contents: | QR Code, Bar Code, Image, Variable Information, Etc. | Optional: | Mounting Bracket, TTR Ribbon Encoder, Rubber Pad, Etc |
Advantage: | Intermittent And Continuous Mode Combined | Warranty: | 1-Year |
Application: | Information Coding | Interface: | USB; RS232 |
Highlight: | Pneumatic Thermal Transfer Overprinter,Continuous Thermal Transfer Overprinter,60Hz Bar Code Printing Machine |
Printing Area Automatic Pneumatic Continuous QR Code Bar Code Date Coding Machine TTO Printer For Packaging Machine

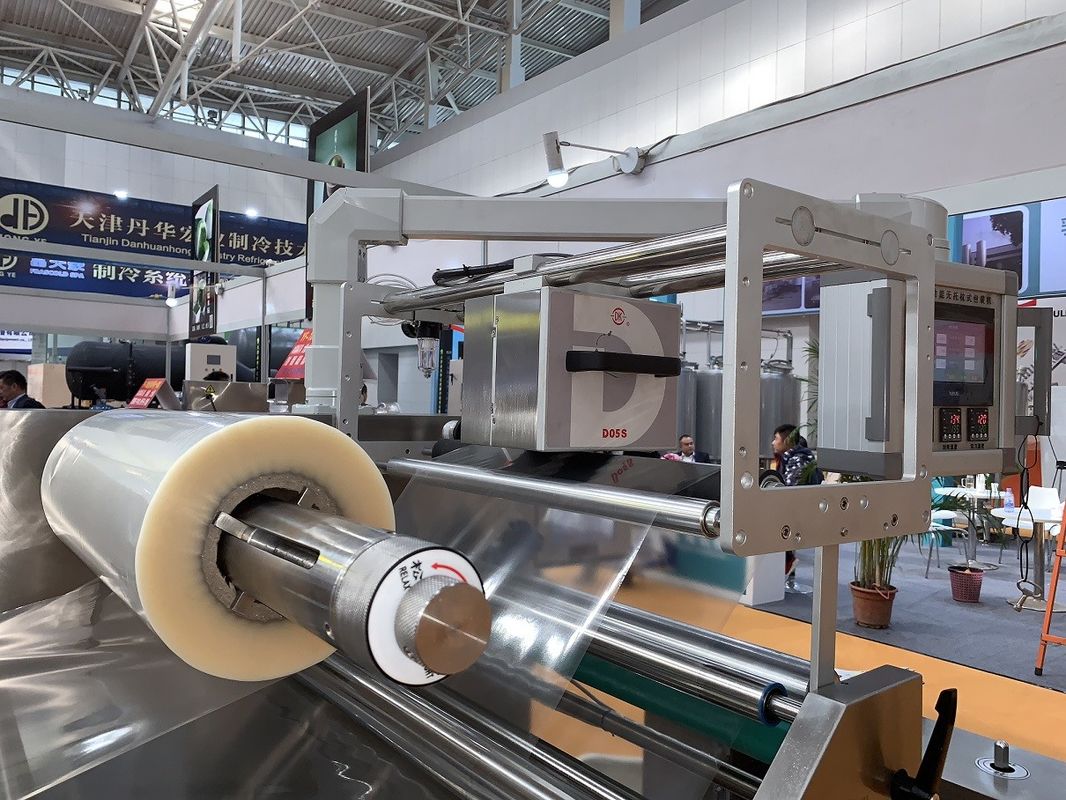

DIKAI D05S Qr Code Printing Machine Thermal Transfer Overprinter (TTO)
Intermittent jet printing
Intermittent jet printing is suitable for the production line where the packaging film moves intermittently (stops/starts). Spray printing is performed at the stop time (dwell) in the motion cycle. According to the signal sent by the packaging machine, the printer lowers the print head onto the material and prints along the film. After completion, the print head is raised and moved to the starting position, waiting for the next package.
Continuous jet printing
On the continuous streamline, the packaging materials should be spray printed while the film is moving. Move between the thin film print head and the impression roller. When the packaging machine sends out the start signal, the printing head presses against the impression roller and starts printing. When the film is pulled through the stuffer, the jet printer performs jet printing on each package. The stop printing signal will raise the print head.
D05S Automatic thermal transfer printer is a mature and economical solution, which is suitable for users who are ready to migrate from non-digital solutions such as hot stamping and roller printing to digital solutions. This solution is very suitable for low-speed intermittent and continuous motion flexible packaging applications, providing high reliability and efficiency, and is suitable for marking variable high-definition images on flexible packaging and labels at an economical price.
Technical Details:
Specification | |
---|---|
Print Head | Kyocera, 53mm; 300DPI |
Print Area |
Intermittent: 53mm*70mm |
Ribbon Size | 55mm*600m |
Printing Frequency |
Intermittent: up tp 350PPM |
Environmental Operation Temperature | 0-40℃ |
Relative Humidity | 10%~95% (non-condensing) |
Power | AC110~220V, 50/60Hz, 150W |
Air Supply | 6bar/ 90PSI(MAX) dry uncontaminated |
Weight | Print head: 8.5kg, Control box: 2.0kg |
Dimension(L*W*H) |
Print Unit: 210mm*210mm*185mm |
What is TTO Printing?
TTO stands for Thermal Transfer Overprinter. TTO Printer is an ideal printing product for most flexible film packaging applications. The printing process produces a very high-resolution code onto the package that is easy to read and ensures no degradation of the aesthetic quality of the packaging film artwork and design.
What are the benefits of thermal transfer overprinter technology?
Improved Print Quality: TTO Printing technology virtually eliminates human error and downtime that occurs when operators incorrectly insert stamps, make spelling mistakes, and lose stamps.
Increased uptime: TTO Printers design ensures that it is fast and simple to change ribbons and the ribbon length can be very long (up to 1,200m). Software control of ribbon tension and movement (which are critical parameters in any ribbon-based coding technology) ensures the amount of unused ribbon is kept to a minimum.
● Optimizing your benefits:
Can print real-time date, time and batch No.; can edit print text as you want; super 650-meter ribbon reducing the frequency of changing, saving your production time; user friendly interface making it easy to operate; easy-to-learn editing software.
● High Quality Print:
High-Resistance Codes: Thermal transfer overprinter can be used in flexible packaging printing creates a highly resistant product that is able to withstand any chemicals, humidity, UV rays, abrasion and climatic changes that your packaging may encounter on its journey through the supply chain.
● Protect your Channel:
Variable barcodes and QR codes help track the products through distribution software, anti-counterfeit and avoid mixing, thus to protect your sales channel.
● Protect your products:
Thermal transfer overprinters will not do harm to the package, extending the valid period; TTO prints clear mark avoids the product being removed from the goods shelf at an early time.
● Protect your Safety:
The cassette of thermal transfer overprinter protects the ribbon and keeps it clean, ensuring the safety of production and products, thus influencing the safety of the company in a profound way.
