DK Coding, Marks Each Moment
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | DIKAI |
| Certification: | CE |
| Model Number: | D02 |
| Minimum Order Quantity: | 1 set |
| Price: | US $ 2200-2500 / set |
| Packaging Details: | Printer & Control Box in one carton, Mounting Bracket in another carton. |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 600 sets per month |
| Name: | D02 Thermal Transfer Overprinter | Print Head: | 24mm Width, 200 Dpi (8dots/mm) |
|---|---|---|---|
| Max Print Area: | 24mm*40mm | Print Speed: | 2-30m/minute |
| Consumable: | Thermal Transfer Ribbon | After-sales Service Provided: | 24-hour Online Service |
| Print Contents: | Image, Variable Information, Etc. | Optional: | Mounting Bracket, TTR Ribbon |
| Advantage: | Intermittent | Application: | Information Coding |
| Highlight: | 50Hz Packing Date Printing Machine,150W Packing Date Printing Machine,24x40mm Multifunction Printer Machine |
||
Durable Multi-Functional Tto Printer For Production Line

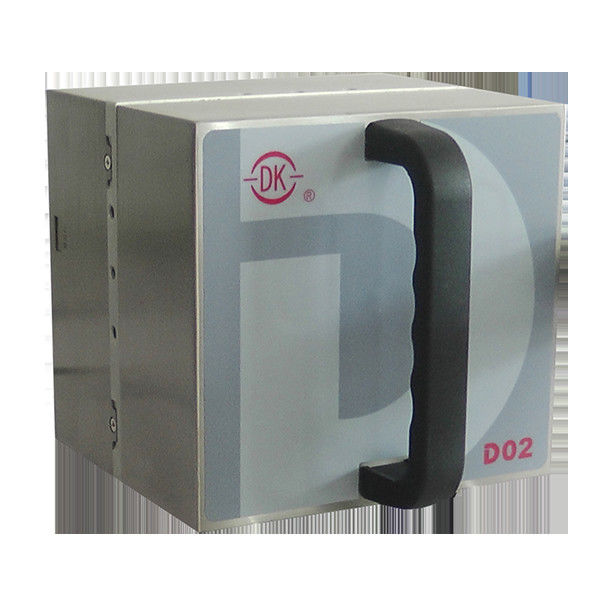

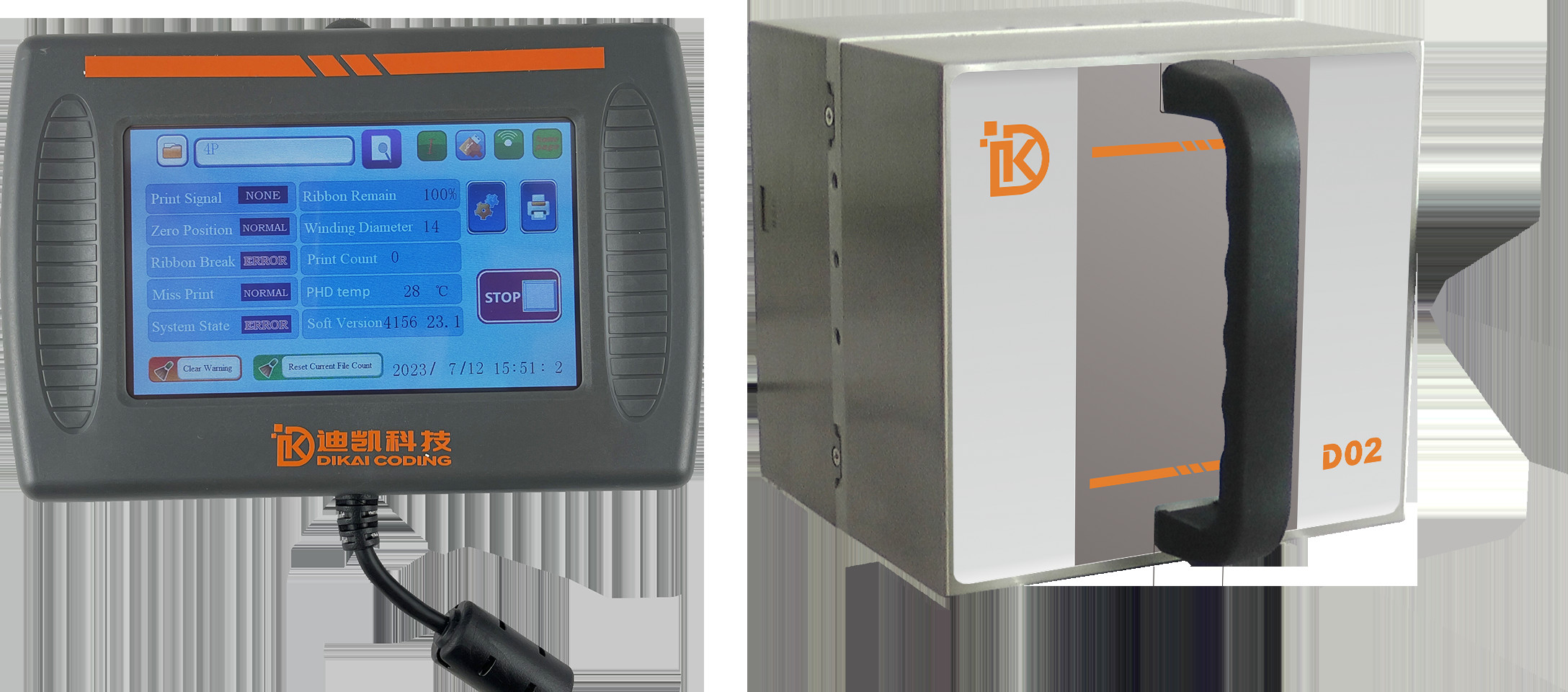

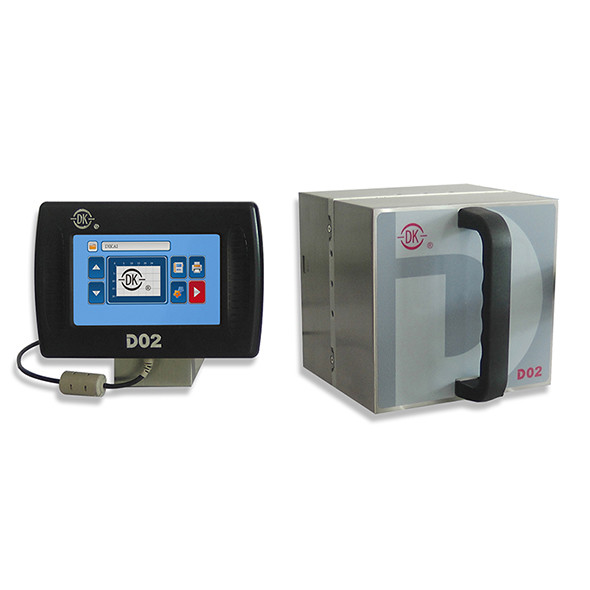

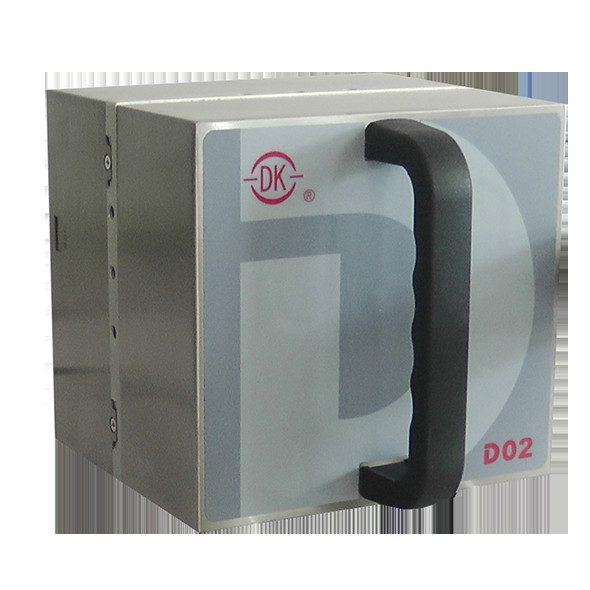

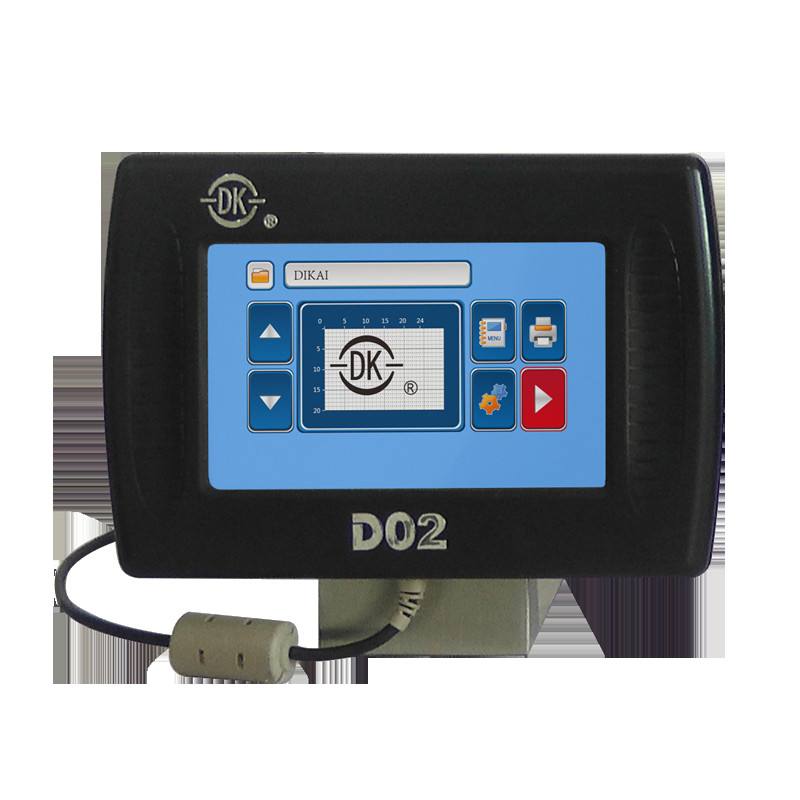

D02 TTO Printer Thermal Transfer Overprinter
Technical Details:
| Specification | |
|---|---|
| Print Head | Kyocera, 24mm; 200DPI |
| Print Area |
Intermittent: 24mm*400mm
|
| Ribbon Size | 25mm*500m |
| Printing Frequency |
Intermittent: up tp 120PPM
|
| Environmental Operation Temperature | 0-40℃ |
| Relative Humidity | 10%~95% (non-condensing) |
| Power | AC110~220V, 50/60Hz, 150W |
| Air Supply | 6bar/ 90PSI(MAX) dry uncontaminated |
| Weight | Print head: 5kg, Control box:0.4kg |
| Dimension(L*W*H) |
Print Unit: 210mm*210mm*185mm Controller Box: 233mm*180mm*128mm |
TTO thermal transfer printer has reliable structural design and professional technology, including direct ribbon drive and improved ribbon box design without wearing parts, and does not need preventive maintenance inspection at all. Each print head has a row of heating elements, and the heat generated by these elements melts the ink. At the same time, the ink is transferred to the substrate by air pressure to realize printing. Its advantages are easy coloring, difficult erasing of printed contents, uniform and clear printing, and suitability for various packages.
Key Benefits
Dikai D02 Thermal transfer overprinter's digital technology delivers clean, crisp codes, with no manual adjustment required as ribbons and printhead are automatically recognized and adjusted to code. Our TTO printer cna print barcodes, logos, before dates, shift codes and real-time time codes, in a variety of thermal trasnfer ribbons grades and colors. The D02 thermal transfer overprinter is a robust one-box solution which provides high-quality printing and uptime to developing coding markets in Asia, Eastern Europe, Lastin and South.
● High Quality Print:
High-Resistance Codes: Thermal transfer overprinter can be used in flexible packaging printing creates a highly resistant product that is able to withstand any chemicals, humidity, UV rays, abrasion and climatic changes that your packaging may encounter on its journey through the supply chain.
● Protect your Channel:
Variable barcodes and QR codes help track the products through distribution software, anti-counterfeit and avoid mixing, thus to protect your sales channel.
● Protect your products:
Thermal transfer overprinters will not do harm to the package, extending the valid period; TTO prints clear mark avoids the product being removed from the goods shelf at an early time.
● Protect your Safety:
The cassette of thermal transfer overprinter protects the ribbon and keeps it clean, ensuring the safety of production and products, thus influencing the safety of the company in a profound way.
