Brand Name: | DIKAI |
---|---|
Model Number: | DLF |
Minimum Order Quantity: | 1 |
Price: | USD $ 5400-6900 / set |
Packaging Details: | Carton Box |
Delivery Time: | 15 working days |
Payment Terms: | T/T |
Supply Ability: | 100 sets per month |
Model Name: | DLF200 | Power Output: | 20W |
---|---|---|---|
Characters/S: | 700* | Codes Support: | Barcode, QR-code |
Fonts: | 26 Languages, Multi - Language Support, Support User - Defined Fonts | Functions: | 10.1 Inch Touch Screen, Virtual Keyboard, Iconic Interface |
Highlight: | 264V PVC Pipe Laser Printing Machine,30w PVC Pipe Laser Printing Machine,IP65 Online Laser Marking Machine |

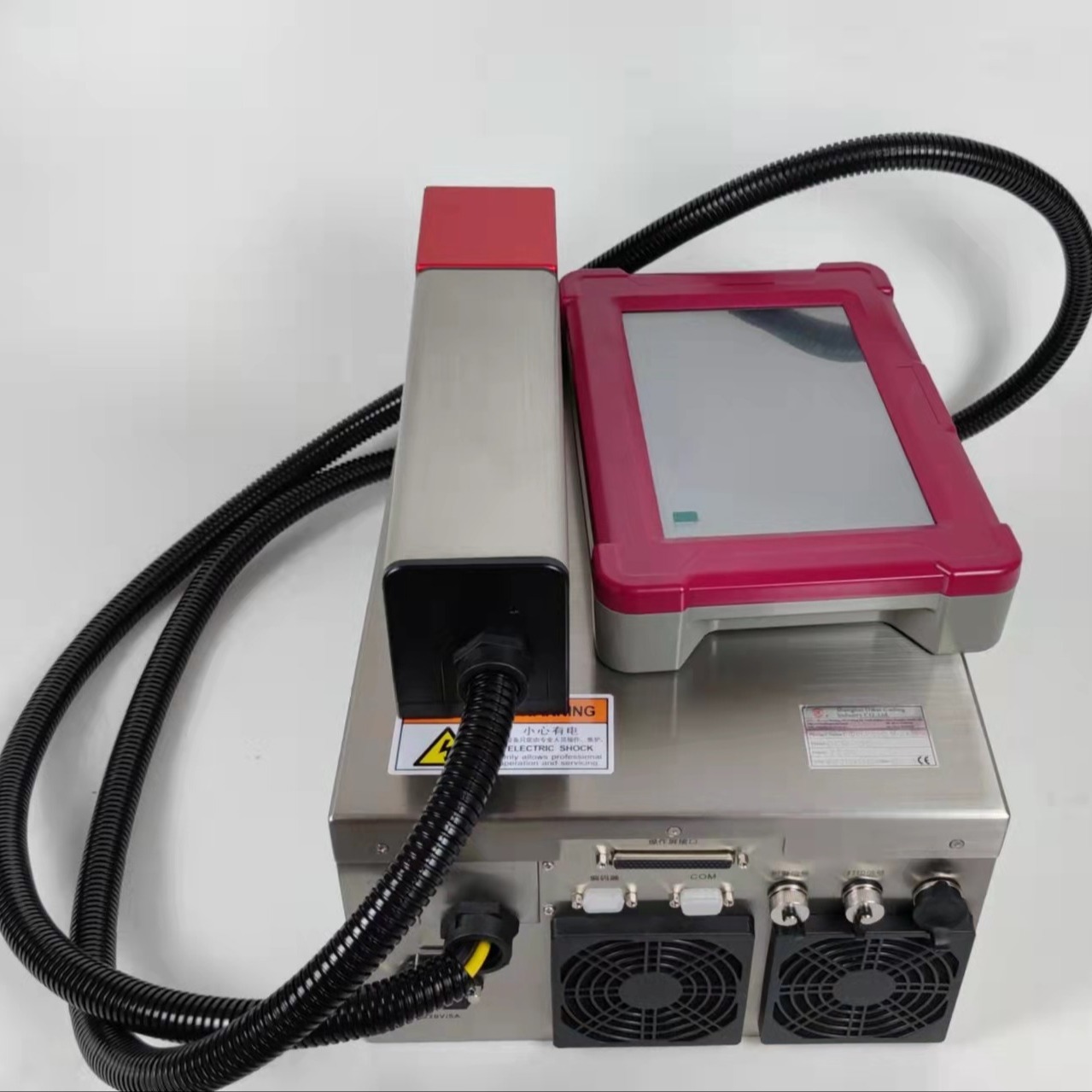

Plastic Bag/Cable/PVC Pipe Batch Code 30w Fiber Online Laser Marking Printer Laser Marking Machine Laser Printer Machine
DLF200 has smaller size, lower maintenance, no consumables and provides permanent high-quality coding. Can be commonly used in food, cosmetics and other industries of flexible packaging, hard plastic (PE/PP), metal and other materials. It can print high contrast logo, to ensure the traceability of the product permanently.
At the same time in the non - metal printing coding, the identification will be cleaner than CO2 laser printer, very suitable for the identification on flexible packaging films.
High speed, high quality, high reliability
Faster coding speed, up to 700 characters/s.
The new intelligent control algorithm provides high quality marking technology
Enhanced anti-electromagnetic design ensures stable operation in harsh environment
It can run 24 hours continuously
Ease of integration
Compact independent design, can be better integrated into the existing production line
Compact size, can adapt to a variety of installation space
Abundant identification information, permanent identification
Almost unlimited font, graphics and bar code applications
Permanent identification, the most reliable anti - counterfeiting string selection
Easy to operate and low maintenance, no consumables
Innovative interface is easy to learn and easy to understand, more convenient and fast operation
Efficient fan cooling design for low maintenance and high life
Average fault-free service up to 100000 hours
No consumables required
Technical Specifications:
Model Name | DLF200 |
Laser Type | Adjustable pulse fiber laserλ=1064nm, MTBF>=100, 000 hours |
Power Output | 20W |
Characters/S | 700* |
Line Speed | 120m/min* |
Number of Lines | Limited only by character height and allowable print area |
Characters Height | 0.8mm to allowable area |
Fonts | 26 languages, multi - language support, support user - defined fonts |
Codes Support | Barcode, QR-code |
Document Type | BMP/DXF/HPGL/JPEG |
Graphic Element | Points, lines, arcs, rectangles, polygons, ellipses, circles |
Variable Data | Serial number, text, date, time, counter, shift code |
Print Area | 50*50mm 70*70mm 110*110mm 140*140mm 175*175mm 210*210mm |
Lens | 63mm, 100mm, 163mm, 210mm, 254mm, 330mm |
Functions | 10.1 Inch touch screen, Virtual keyboard, Iconic interface |
Outside | Stainless steel support structure, anodized alumina |
I/O | PN/PNP/24V - detector |
Speed Detection | Encoder or synchronizing signal |
Input Signal | Start, stop, interlock |
Output Signal | Status indication, cooling device control, machine remote control |
Communication | RS-232, Ethernet (10/100 Mbit), USB port |
Power | 90-264V AC, 47-63Hz, 800W |
Cooling system | Air cooling |
Operation Environment | -6-45ºC, 10%-90%RH, non-condensing |
IP Rating | IP55 |
Optional | Infrared beam positioning; Infrared beam focusing; Network and remote control software (TCP/IP) |
* The quantity of characters printed each second and production line speed depends on the surface material and marking content.
