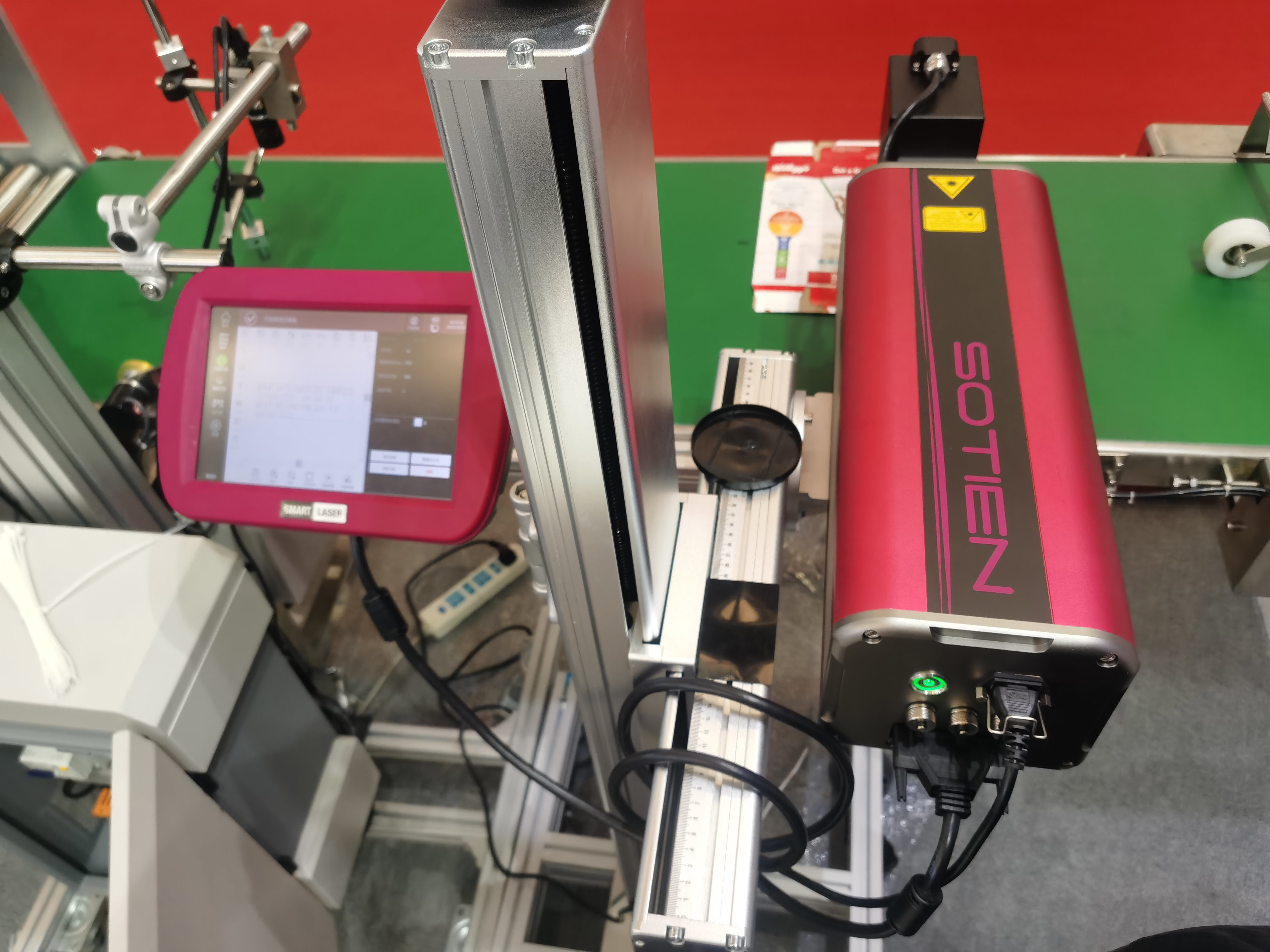

Auto Online Flying CO2 Laser Marking Machine 30W Expiry Batch Code Laser Printer

Auto Online Flying CO2 Laser Marking Machine 30W Expiry Batch Code Laser Printer

Auto CO2 Laser Marking Machine

Online CO2 Laser Marking Machine

30W Batch Code Laser Printer

Place of Origin:

Shanghai, China

Brand Name:

DIKAI

Certification:

CE

Model Number:

DLC150i

Contact Us
Request A Quote
Product Details
Product Name:
DLC150i 30W CO2 Laser Coding Machine
Marking Speed:
300 M/Min
Marking Area:
Standard 110mm*110mm Optional
CPS:
1500
Operation System:
CE
Optic System Life Time:
100,000 Hours
Electrical Power Supply:
750W
Interface:
Rs-232, Ethernet, USB
Suitable Material:
Metal, Paper, Plastic, Film
Warranty:
1 Year
Highlight:

Auto CO2 Laser Marking Machine

,

Online CO2 Laser Marking Machine

,

30W Batch Code Laser Printer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
US $ 20527-17342 per set
Packaging Details
Printer & Control Box in one carton, Mounting Bracket in another carton.
Delivery Time
5-8 working days
Payment Terms
T/T
Supply Ability
80 set per month
Product Description

Auto Online Flying 30W CO2 Laser Marking Machine Expiry Date Batch Code Laser Printer for Plastic Bags Cable Wire PET Bottle



DLC130 DLC140 DLC160 DLC130i DLC150i
CO2
30W 40W 60W 30W 50W
9.3 μm 10.2 μm 10.6 μm 9.3 μm 10.2 μm 10.6 μm 9.3 μm 10.2 μm 10.6 μm 9.3 μm 10.2 μm 10.6 μm 9.3 μm 10.2 μm 10.6 μm

1200 * 1300 * 1500 * 1200 * 1500 *
200 M/Min * 230 M/Min * 300 M/Min * 200 M/Min * 300 M/Min *
Unlimited Within Marking Area
0.8mm~Max Marking Area
26 Fonts, Custom Fonts
Code128, Code 39, Data-Matrix Code, QR Code
BMP/DXF/HPGL/JPEG
Point, Linear arc, Rectangle, Polygon, Ellipse, Circle
Serial Number, Text, Date, Time, Counter, Shift Code
50*50mm to 400*400mm (Optional), 110mm*110mm Standard
136mm (Standard Lens)
10.1 inch Color Touch Screen, QWERTY or AZERTY Virtual Keyboard, Quick Icon Wizard Operations, Online Help, Language
Simple/Traditional Chinese, English,Other Languages Are Customizable
Anodized Alumina Construction
Red LED Aiming

NPN/PNP, NPN Is Defult
Encoder or Synchronizing Signal
Start, Stop, Interlock Signal
Operation Status Indication, Cooling Device Control, Machine Remote Control
RS232, Ethernet (10/100 MBit), USB Port

100 - 240 VAC,47-63Hz,750W
Air Cooling
5-45℃,10-90%RH,No Condensation
IP55
Bracket, Air Extractor

* The quantity of characters printed each second and production line speed depends on the surface material and marking content.



Auto Online Flying CO2 Laser Marking Machine 30W Expiry Batch Code Laser Printer 0

Advantages of CO2 Lasers

  •  Permanence of codes: Tamper-proof CO2 laser marks survive for the entire life of the product
  •  High quality codes: CO2 lasers provide unique marks that can enhance product and brand perception
  •  Low carbon footprint: With limited consumables, CO2 lasers marking technology can aid in sustainability and green initiatives
  •  Virtually no consumables: CO2 lasers significantly reduce the cost and hassle of consumables like inks and other fluids
  •  Less maintenance: CO2 lasers are virtually maintenance-free, leading to enhanced ease of operation



CO2 lasers provide three different wavelengths for broad substrate coverage

  •  10.6μm: Ideally suited to most standard consumer packaged goos applications that mark paper, cardboard, various plastics, adn labels as well as wood and glass products
  •  10.2μm: Best applied to laminated cartons commonly used in many cosmetic and pharmaceutical applications.
  •  9.3μm:Specifically suited for marking on PET plastic, typical of beverage products.

Auto Online Flying CO2 Laser Marking Machine 30W Expiry Batch Code Laser Printer 1

CO2 Laser Etching Systems built for Adaptablility

Due to the type of technology used and the life of the components, CO2 lasera are almost always far cheaper than Nd:Yag, Vanadate and Fiber based companions.

There are a multitude of CO2 laser engraving machines available on the market today, so it can get very confusing, especially when taking into account all the different claims and features.

We provide a range of laser systems, including our own. They are hassle-free, easy-to-use, packed with useful features alongside robust, good quality software. Crucially, they are cost-effective.

Advantages of co2 laser marking machine: Compared with traditional marking technology, CO2 laser marking machine has the advantages of clear laser marking, high speed and high yield. Graphics, characters and serial numbers can be edited by software, which is convenient to change. In addition, the laser has 30,000 hours of maintenance-free, no consumables, low use cost and power saving.
