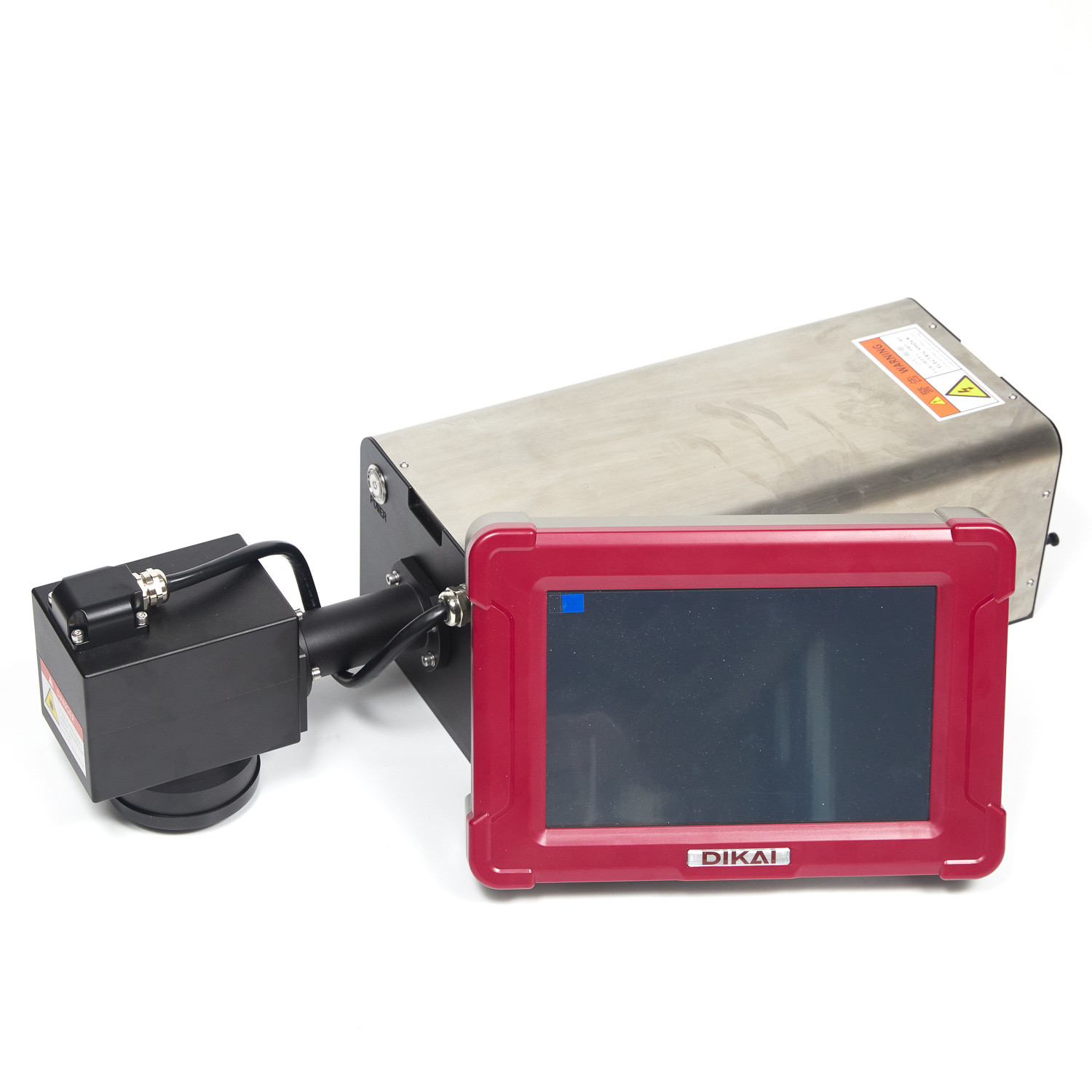

Printer UV Laser Marking Machine 5W 50Hz IR Beam Positioning For HDPE

Printer UV Laser Marking Machine 5W 50Hz IR Beam Positioning For HDPE
Printer UV Laser Marking Machine 5W 50Hz IR Beam Positioning For HDPE Printer UV Laser Marking Machine 5W 50Hz IR Beam Positioning For HDPE Printer UV Laser Marking Machine 5W 50Hz IR Beam Positioning For HDPE Printer UV Laser Marking Machine 5W 50Hz IR Beam Positioning For HDPE Printer UV Laser Marking Machine 5W 50Hz IR Beam Positioning For HDPE Printer UV Laser Marking Machine 5W 50Hz IR Beam Positioning For HDPE Printer UV Laser Marking Machine 5W 50Hz IR Beam Positioning For HDPE Printer UV Laser Marking Machine 5W 50Hz IR Beam Positioning For HDPE Printer UV Laser Marking Machine 5W 50Hz IR Beam Positioning For HDPE
Basic Information
Place of Origin: Shanghai
Brand Name: DIKAI
Model Number: DSU5000
Minimum Order Quantity: 1 set
Price: inquiry
Delivery Time: 10-14 work days
Payment Terms: T/T
Supply Ability: 80 sets per month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Name: DSU5000 UV Laser Applications: HDPE, Such As Food, Pipes, Chemical Products Etc.
Laser Type: UV Laser Wavelength: 355nm
Output: 5W Guide Laser: IR Beam Positioning
Scan Speed: ≥12000mm/s Cooling: Water Cooling
Power: 1200W Dimension: 780mm*660mm*1480mm
High Light:

5W UV Laser Marking Machine

,

50Hz UV Laser Marking Machine

,

HDPE Laser Printer Machine

UV Laser Printer Coding Machine Laser Marking Machine for plastic bottle

DSU5000 UV Laser

DSU5000 Laser coding machine, using a new intelligent vector control algorithm, marking speed greatly improved. The unique laser control technology can easily mark the best printing effect on the film material. Compact size, low maintenance, no consumbale, to provide permanent and high contrast marking to ensure product can be tracking, anti-counterfeiting and anti-channelization.
UV laser systems for permanent marking. The pharmaceutical, medical device, and cosmetic industries can utilize UV laser marking machines to deter tampering and counterfeiting, helping to ensure lifetime brand protection and tacebility.
Dikai is a global supplier of UV laser marking systems to provide permanent, high-grade readable codes regradless of product positioning to help consistently meet code quality requirements for potimal supply chain and vision system readability.

The power of UV laser marking machine is 3 watts, 5 watts, 10 watts, 15 watts, etc. UV laser marking machine is mainly used in plastic cosmetics, medicines, foods, PCB boards, two-dimensional codes, metal surface coatings, plastic buttons, decorations, charger plugs, etc. The higher the power, the higher the price. 3 watts -5 watts is widely used in industry at present, especially because their prices are moderate and can meet most of the requirements.
The ultraviolet laser marking machine can also mark cosmetics, mobile phones, medicines, food packaging, metals, glasses, plastics, polymer materials, building materials, special materials ABS, flexible PCB boards, plastic buttons, silicon wafer micropores, electronic components, communication equipment, LCD liquid crystal glass and many other products.

Principe
The ultraviolet laser marking machine is a series of laser marking machines, so its principle is similar to that of laser marking machines, which use laser beams to mark permanent marks on the surfaces of various substances. The marking effect is to directly break the molecular chain of substances by short-wavelength laser (unlike the evaporation of surface substances produced by long-wavelength laser to expose deep substances), so as to show the patterns and characters to be etched.

High speed, High quality

  • Up to 700 characters per second
  • New intelligent control algorithm
  • Enhanced anti-electromagnetic interference design ensure stable operation in harsh environments



Low maintenance, Non consumable

  • Innovative interact, easy to learn and understand
  • One-button startup
  • MTBF more than 20,000 hours
  • Non-consumable, cost saving


Printer UV Laser Marking Machine 5W 50Hz IR Beam Positioning For HDPE 0

Specifications

Applications HDPE, Such as food, pipes, chemical products etc.
Scan Mode X.Y axial simultaneous sacn
Marking Mode 9000mm/s (Depend on Materials)
Marking Lase Stastic Mark Multiple products can be mark simultaneously
Laser Type UV Laser
Wavelength 355nm
Output 5W
Guide Laser Infrared Beam Positioning
Marking Area 70*70 110*110 175*175 300*300mm Optional
Scan Speed ≥12000mm/s
Software Controller WinCE Touch Screen
Character Type Fonts Single/ Double Font
Bar Codes Code39/Code25/EAN-13/Code128
2D Codes QRCode & DM
Graphic PLT Input/Output
Marking Conditions Marking Status Product quantity etc.
Character Size 0.1mm-110mm
Input/Output Sensor/Encoder
Connection SD card/USB2.0/Communication interface
Laser Installation Direction No Limited
Cooling Water Cooling
Power&Temp Supply Voltage AC220V 50Hz
Power 1200W
Storage Temperature -10℃-45℃(No freeze)
Working Temperature
Environment Resistance Storage Humidity 10%-85% (No condensation)
Workin Humidity
Pollution Degree No chemicals are produces
Dimension Weight 120KG
Specification 780mm*660mm*1480mm
*Print characters per second, production line speed depends on packaging material and print content
