DK Coding, Marks Each Moment
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | DIKAI |
| Certification: | CE |
| Model Number: | D05S |
| Minimum Order Quantity: | 1 set |
| Price: | USD $ 3900-4500 / set |
| Packaging Details: | Printer & Control Box in one carton, Mounting Bracket in another carton. |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 700 sets per month |
| Name: | Thermal Transfer Overprinter | Print Head: | 53mm Width, 300 Dpi (12dots/mm) |
|---|---|---|---|
| Print Area: | Continuous: 53*190mm; Intermittent: 53*70mm | Print Speed: | Continuous: Max. 40 Meters/minute; Intermittent: 450PPM |
| Consumable: | Thermal Transfer Ribbon | After-sales Service Provided: | Overseas Third-party Support Available |
| Print Contents: | Bar Code, QR Code, Image, Variable Information, Etc. | Optional: | Mounting Bracket, Encoder, TTR Ribbon, Rubber Pad, Etc |
| Advantage: | Intermittent And Continuous Mode Combined | Warranty: | 1-Year |
| Application: | Information Coding, Barcode Print, QR Code Printer, Batch Number Code | Interface: | USB |
| High Light: | 53mm packing date printing machine,D05S packing date printing machine,D03S TTO date printer machine |
||

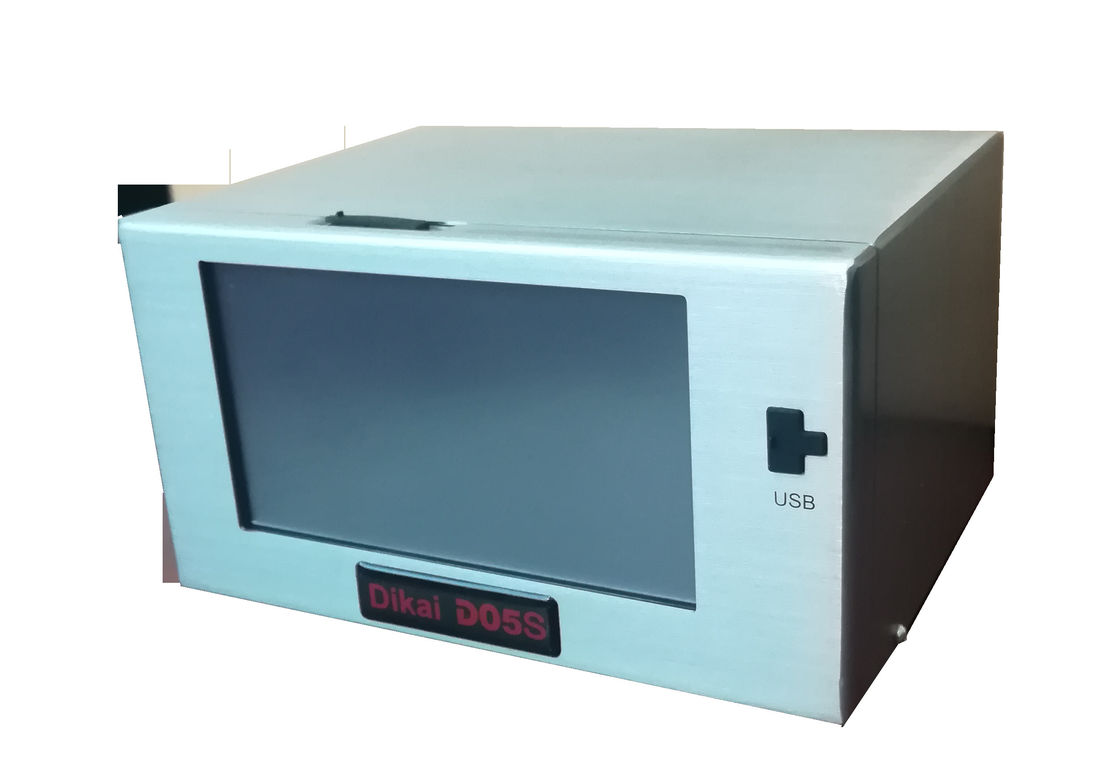

DK Smart Date Printer D05S TTO Date Batch Code QR Code Printer for Flow Packaging Machines
Quick Details
DIKAI D05S is one of most cost-effective smart coding machines, mainly used in flexible film packaging area such as food, beverage, pharmaceutical, daily chemical, seed, etc.
S Series TTO Advantages: Bi-moto control, up to 0.1mm precise print gap; wider print speed range, 20mm/s to max 670mm/s; add ribbon save modes, improve the usage rate; suitable for automatic material handing line, avoid miss prints and print position deviation, add network interface can communicate to related system.
It has two types: Right hand machine & Left hand machine
Benefits
Thermal transfer overprinters use a high-resolution thermal printhead, which melts a wax and/or resin-based ink from a very thin thermal transfer ribbon coating onto the surface of your product.
● High Quality Print:
High-Resistance Codes: Thermal transfer overprinter can be used in flexible packaging printing creates a highly resistant product that is able to withstand any chemicals, humidity, UV rays, abrasion and climatic changes that your packaging may encounter on its journey through the supply chain.
● Optimizing your improvements:
Thermal transfer overprinters have 300 DPI resolution ratios; improve the cosmetic level of your packaging; make you more outstanding and appealing among competitors.
● Optimizing your benefits:
Can print real-time date, time and batch No.; can edit print text as you want; super 650-meter ribbon reducing the frequency of changing, saving your production time; user friendly interface making it easy to operate; easy-to-learn editing software. Optimizing your Production line and reducing the cost.
● Protect your products:
Thermal transfer overprinters will not do harm to the package, extending the valid period; TTO prints clear mark avoids the product being removed from the goods shelf at an early time.
● Protect your value:
Thermal transfer overprinter has different dimensions of print head (32mm&53mm) and ribbon (22, 25, 30, 33, and 55) meet variable demands of printing; print gap of TTO can be as small as 0.5mm; super-clear and super adhesive prints protect you from customer complaints. Reduce the cost in every possible ways.
● Protect your Channel:
Variable barcodes and QR codes help track the products through distribution software, anti-counterfeit and avoid mixing, thus to protect your sales channel.
● Protect your Safety:
The cassette of thermal transfer overprinter protects the ribbon and keeps it clean, ensuring the safety of production and products, thus influencing the safety of the company in a profound way.
● Protecting our environment:
Thermal transfer overprinters are energy-saving; low consumption; environment friendly.
● High Speed:
Smooth, waxy surface of the thermal transfer ribbon creates less friction when applying your code onto the product, making it ideal for faster production lines.
● Efficient printing:
Thermal transfer overprinters are designed for reduced downtime and maximised ribbon economy keep your business running smoothly.
Application:
* Horizontal Continuous packaging machine
* Vertical Intermittent packaging machine
* Labeling Machine
* Feeder
Technical Details:
| Specification | |
|---|---|
| Print Head | Kyocera, 53mm; 300DPI |
| Print Area |
Intermittent: 53mm*70mm Continuous: 53mm*190mm |
| Ribbon Size | 53mm*600mI |
| Printing Frequency |
Intermittent: up tp 350PPM Continuous: up to 40 meters/ minute |
| Environmental Operation Temperature | 0-40℃ |
| Relative Humidity | 10%~95% (non-condensing) |
| Power | AC110~220V, 50/60Hz, 150W |
| Air Supply | 6bar/ 90PSI(MAX) dry uncontaminated |
| Weight | Print head: 9.5kg, Control box: 2.0kg |
| Dimension(L*W*H) |
Print Unit: 210x210x180mm Controller Box: 175x235x110mm |
Print Samples
