DK Coding, Marks Each Moment
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | DIKAI |
| Certification: | ISO9001 |
| Model Number: | DC800 |
| Minimum Order Quantity: | 1 set |
| Price: | $4680 |
| Packaging Details: | Carton Box |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Print Speed: | Up To 206m/min | Print Lines: | 1 To 5 Lines (5x5 Dots) |
|---|---|---|---|
| Print Height: | 34 Dots | Control System: | Linux |
| Nozzle: | 60μm Nozzle | Material: | Stainless Steel |
| Protection Rate: | IP54 | Power Input: | 1 Phase AC100-120/220-240V±10%, 50/60Hz, 150VA |
| Net Weight: | 20kg | Working Temperature: | 0~45℃ |
| Humidity: | Max 90%, No Condensation | Communication: | RS485, Ethernet |
| High Light: | Industrial CIJ Printers,Continuous Inkjet Printer IP54,RS232 Continuous Inkjet Printer |
||

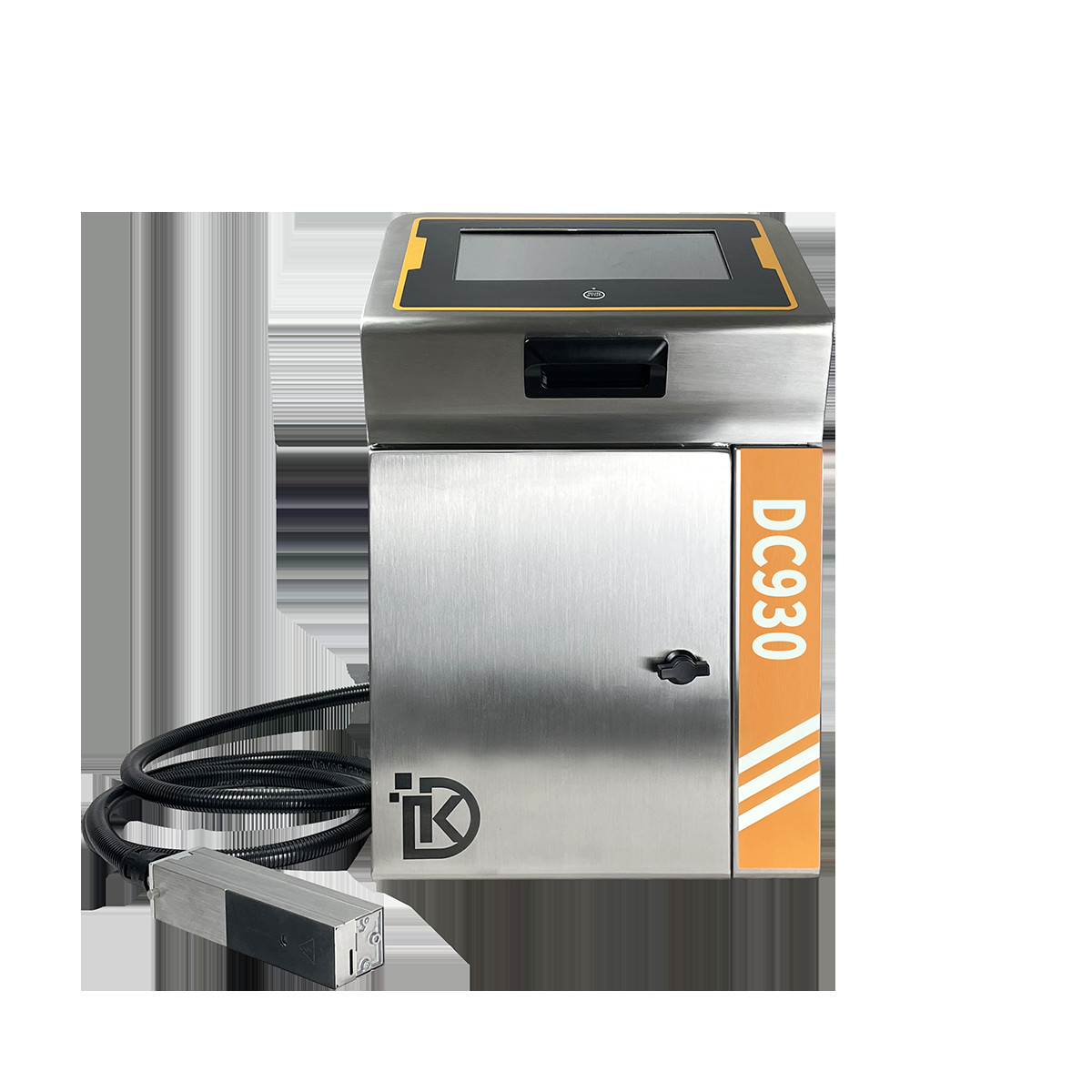

DC800 Series 34 Dots CIJ Continuous Inkjet Printers
Full line of industrial continuous inkjet printers for marking and coding applications
Ideal for marking on flat or curved surfaces, continuous inkjet printer technology is a non-contact printing method that can utilize a range of continuous inkjet inks to print on almost any substrate.
DIKAI offers a range of CIJ printers and deep application expertise to help you identify the right printing solutions for your needs. Our inkjet printers are:
Printing speed, high speed up to 430 m/min(DC880S model)
Multi nozzle: 60μm, 50μm
Various ink colors:black, white, blue, red, etc.
Easy to maintain
Online editing
Widely used in food, beverage, chemical, cable pipe and other industries
Print batch codes, serial numbers, barcodes, and traceability information on products and packaging with DIKAI continuous inkjet printers. DIKAI will help you select the ideal printers and inks for your production or packaging operation. Talk to a DIKAI application expert.
Printer Specifications:
| Model | DC810 |
| Print Height | 34 dots |
| Print Lines | 1-4 Lines (7x5 dots) |
| 1-5 Lines (5x5 dots) | |
| Max. Line Speed | 206m/min |
| Print Font | 5x5, 7x5, 9x6, 12x8, 12x12CH, 16x11, 16x16CH |
| 19x14, 24x17, 24x24CH, 32x22CH | |
| Nozzle | 60u nozzle with temp control |
| Supported Fonts | Letters, Arabic numerals and common symbols, serial numbers, automatic dates, user-defined characters, bar codes, QR codes, external data, can directly edit Chinese characters and trademark patterns |
| Print Distance | 2-30mm(Standard: 10mm) |
| Print Direction | 360° all-round printing |
| Operation Interface | 10.1” Touch Screen |
| System Language | Multilingual including Chinese simplified, Chinese Traditional, English, German, Portuguese, Russian, Spanish, Thai, Arabic, Croatian, Persian, Slovak etc. |
| Consumable | Ink: 500ml；Additive: 750ml |
| Protection Level | IP55 |
| Data Storage | 1000+ print files |
| Interface | USB, RS485, Ethernet |
| Umbilical Cable Length | Standard Length 3m |
| Operating Temperature | 0-45℃ |
| Humidity Range | Relative Humidity 30-90%, Non-Condensing |
| Power Supply | 1 Phase AC100-120/220-240V±10%, 50/60Hz, 150VA |
| Net Weight | 20KG |
| Dimension | 443mm x 320mm x 603mm |
Features:
1. Simplicity
●Based on Linux system, and easily to operate interface.

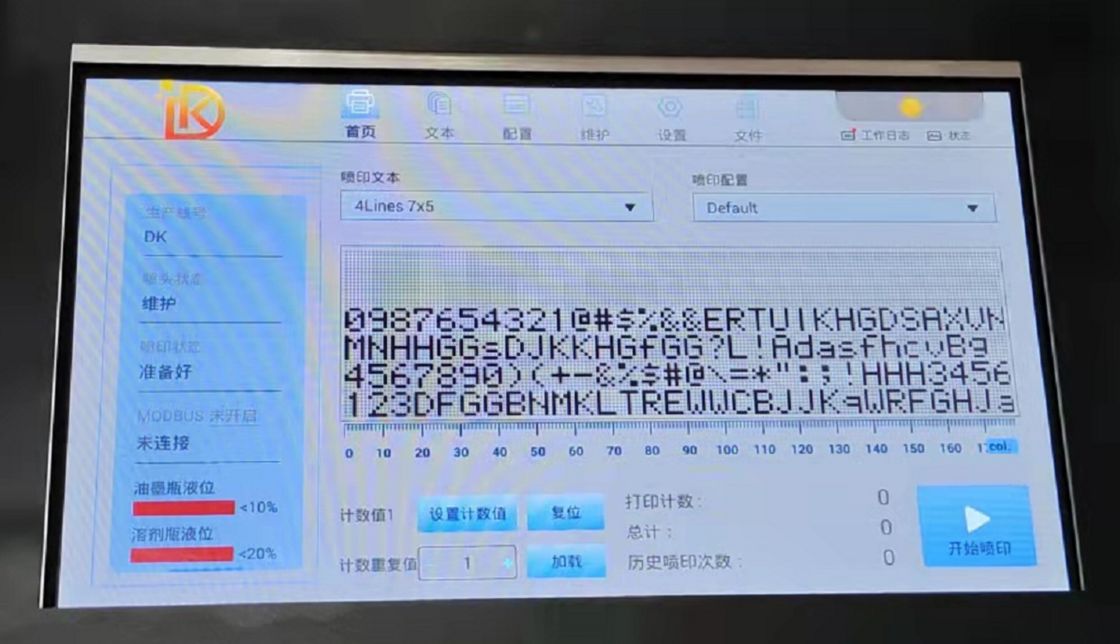

●WYSIWYG 10.1-inch HD Touchscreen and user-friendly interface
●Integrally designed nozzle with high-precision molding and superior sealing
2. User Friendly
●Newly upgraded editor for all kinds of message including barcode
●USB & Ethernet ports available for easy acquiring external data
3. Intelligent
●Scalable and expandable
●Support external data input.
●Multi-language operating system and input method,
●Supportive of customized font and complex graphics
4. Reliable
●Stainless steel cabinet, hygienic and easy-to-clean with high capability of anti-electromagnetic interference.
●New generation of gem nozzle with temperature control to ensure stable and reliable production
●IP55 design for harsh environment
