DK1500A Hot Ink Roll Coder / Serial Number Printing Machine 70m/min

DK1500A Hot Ink Roll Coder / Serial Number Printing Machine 70m/min
DK1500A Hot Ink Roll Coder / Serial Number Printing Machine 70m/min DK1500A Hot Ink Roll Coder / Serial Number Printing Machine 70m/min DK1500A Hot Ink Roll Coder / Serial Number Printing Machine 70m/min DK1500A Hot Ink Roll Coder / Serial Number Printing Machine 70m/min DK1500A Hot Ink Roll Coder / Serial Number Printing Machine 70m/min DK1500A Hot Ink Roll Coder / Serial Number Printing Machine 70m/min DK1500A Hot Ink Roll Coder / Serial Number Printing Machine 70m/min DK1500A Hot Ink Roll Coder / Serial Number Printing Machine 70m/min DK1500A Hot Ink Roll Coder / Serial Number Printing Machine 70m/min
Basic Information
Place of Origin: Shanghai, China
Brand Name: DIKAI
Model Number: DK-1500
Minimum Order Quantity: 1 set
Price: US $750
Packaging Details: Carton Box
Delivery Time: 5-8 work days
Payment Terms: T/T
Get Best Price Contact Now
Name: DK-1500 Ink Roll Coder Print Area: T:≤13lines,max20 R:≤10lines,max13
Type Sizes: "T-Type:2.0T,2.5T,3.0T,2.5*7T R-Type:3.5R,4.5R,5.5R" Pouch Length: "≥38mm(4-up Printer) ≥75mm(2-up Printer)"
Ink Roll Required: 36*32mm,36*35mm,36*40mm Eletricity: AC220±10V，50/60Hz
Print Speed: 900PPM, 70 Meters/minute Print Contents: MFG/EXP Date, Lot Number, Serial Number
Power: 130W, 2A Fuse



DK-1500 Hot Ink Roller Coding Machine
DK-1500 Expiry Date Printer is an electronic continuous motion coder designed to be integrated on packing machines to print at a max speed of 900 PPM. Print area up to 13 lines so you can print MFG/ EXP date, lot number, etc on flexible packing films. Widely used in industries like food, daily chemicals, daily tissue, rice, seed, etc. Since its first launch in 2011, our cumulative sales quantity had reached 100, 000 sets in the market. We can say it's an almost maintenance free model, largely saving your costs.
Features

Occasion of use: It can be equipped with all types of pillow or vertical packing machine. Beautiful appearance, Easy to install.

Stable operation: The mold of key parts improves the stability of the equipment. The new temperature control system keeps the temperature stable, greatly prolongs the service life compared with the temperature control meter, and also ensures the printing effect of the ink roll. Easy to use: Adopt friendly and simple operation interface to ensure users learn to operate quickly. The way to change the Brass Characters and ink roll is simple and easy to learn.


DK1500A Hot Ink Roll Coder / Serial Number Printing Machine 70m/min 0
DK1500A Hot Ink Roll Coder / Serial Number Printing Machine 70m/min 1
Installation on Flow Packer
DK1500A Hot Ink Roll Coder / Serial Number Printing Machine 70m/min 2
Print Sample
DK1500A Hot Ink Roll Coder / Serial Number Printing Machine 70m/min 3

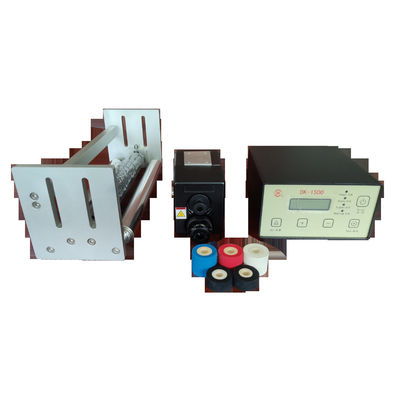

Mounting Bracket (optional)
Product Specification
Model Number
DK-1500 Expiry Date Printer
Print Contents
MFG/ EXP date, Lot Number, Serial Number
Print Area
max 13 lines, 20 characters/ line
Print Speed
up to 900 PPM
Surface Speed
max 70 meters/ minute
Power Supply
AC100-AC230V 50/60 Hz
Print Direction
Left/ Right Hand Optional
Printer Unit Dimension
120mm*100mm*170mm (L*W*H)
Controller Dimension
180mm*180mm*102mm (L*W*H)

Tag:

230V Ink Roll Coding Machine,

140W Box Coding Machine,

900 PPM Box Coding Machine
