DK Coding, Marks Each Moment
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | DIKAI |
| Certification: | CE |
| Model Number: | D03S |
| Minimum Order Quantity: | 1 set |
| Price: | USD $ 2700-3200 / set |
| Packaging Details: | Printer & Control Box in one carton, Mounting Bracket in another carton. |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 700 sets per month |
| Name: | Thermal Transfer Overprinter | Print Head: | 32mm Width, 300 Dpi (12dots/mm) |
|---|---|---|---|
| Print Area: | Continuous: 32*100mm; Intermittent: 32*60mm | Print Speed: | Continuous: Max. 40 Meters/minute; Intermittent: 450PPM |
| Consumable: | Thermal Transfer Ribbon | After-sales Service Provided: | Overseas Third-party Support Available |
| Print Contents: | Bar Code, QR Code, Image, Variable Information, Etc. | Optional: | Mounting Bracket, Encoder, TTR Ribbon, Rubber Pad, Etc |
| Advantage: | Intermittent And Continuous Mode Combined | Warranty: | 12 Months |
| Application: | Vertical Packaging Machine/Flow Packaging Machine | Interface: | USB |
D03S 32MM Printhead Manufacture Date Printer QR Code Printing Machine
Quick Details

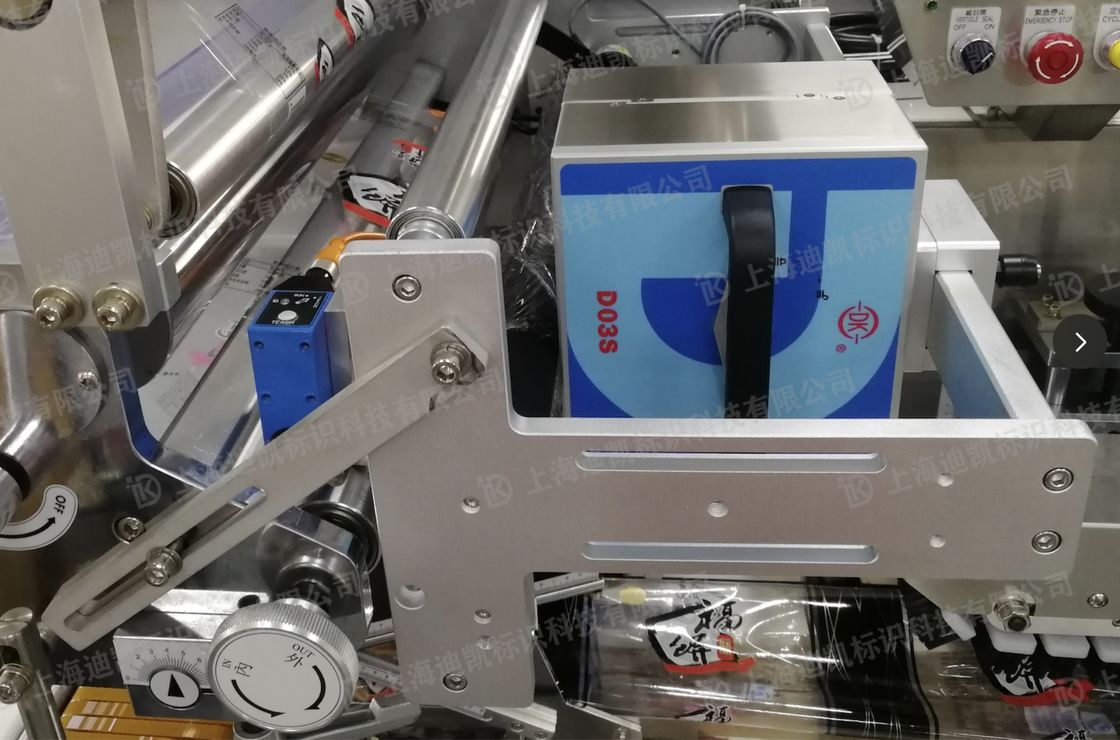

DIKAI D03S Thermal Transfer Printer was designed by our own R&D department. it was released in 2013, intermittent and continuous mode combined in one machine, suitable for both horizontal and vertical packing machines. D03S adpots 300dpi printhead to print bar codes, QR codes, dates, real time, graphics, pictures, logos and other variable information directly onto packaging, substrate and other materials. The size, position and content of information can be fixed or altered at the D03S user interface.
S Series Advantages: Bi-moto control, up to 0.1mm precise print gap; wider print speed range, 20mm/s to max 670mm/s; add ribbon save modes, improve the usage rate; suitable for automatic material handing line, avoid miss prints and print position deviation, add network interface can communicate to related system.
Benefits
Thermal transfer overprinters use a high-resolution thermal printhead, which melts a wax and/or resin-based ink from a very thin thermal transfer ribbon coating onto the surface of your product.
● High Quality Print:
High-Resistance Codes: Thermal transfer overprinter can be used in flexible packaging printing creates a highly resistant product that is able to withstand any chemicals, humidity, UV rays, abrasion and climatic changes that your packaging may encounter on its journey through the supply chain.
● Optimizing your improvements:
Thermal transfer overprinters have 300 DPI resolution ratios; improve the cosmetic level of your packaging; make you more outstanding and appealing among competitors.
● Optimizing your benefits:
Can print real-time date, time and batch No.; can edit print text as you want; super 650-meter ribbon reducing the frequency of changing, saving your production time; user friendly interface making it easy to operate; easy-to-learn editing software. Optimizing your Production line and reducing the cost.
● Protect your products:
Thermal transfer overprinters will not do harm to the package, extending the valid period; TTO prints clear mark avoids the product being removed from the goods shelf at an early time.
● Protect your value:
Thermal transfer overprinter has different dimensions of print head (32mm&53mm) and ribbon (22, 25, 30, 33, and 55) meet variable demands of printing; print gap of TTO can be as small as 0.5mm; super-clear and super adhesive prints protect you from customer complaints. Reduce the cost in every possible ways.
● Protect your Channel:
Variable barcodes and QR codes help track the products through distribution software, anti-counterfeit and avoid mixing, thus to protect your sales channel.
● Protect your Safety:
The cassette of thermal transfer overprinter protects the ribbon and keeps it clean, ensuring the safety of production and products, thus influencing the safety of the company in a profound way.
● Protecting our environment:
Thermal transfer overprinters are energy-saving; low consumption; environment friendly.
● High Speed:
Smooth, waxy surface of the thermal transfer ribbon creates less friction when applying your code onto the product, making it ideal for faster production lines.
● Efficient printing:
Thermal transfer overprinters are designed for reduced downtime and maximised ribbon economy keep your business running smoothly.

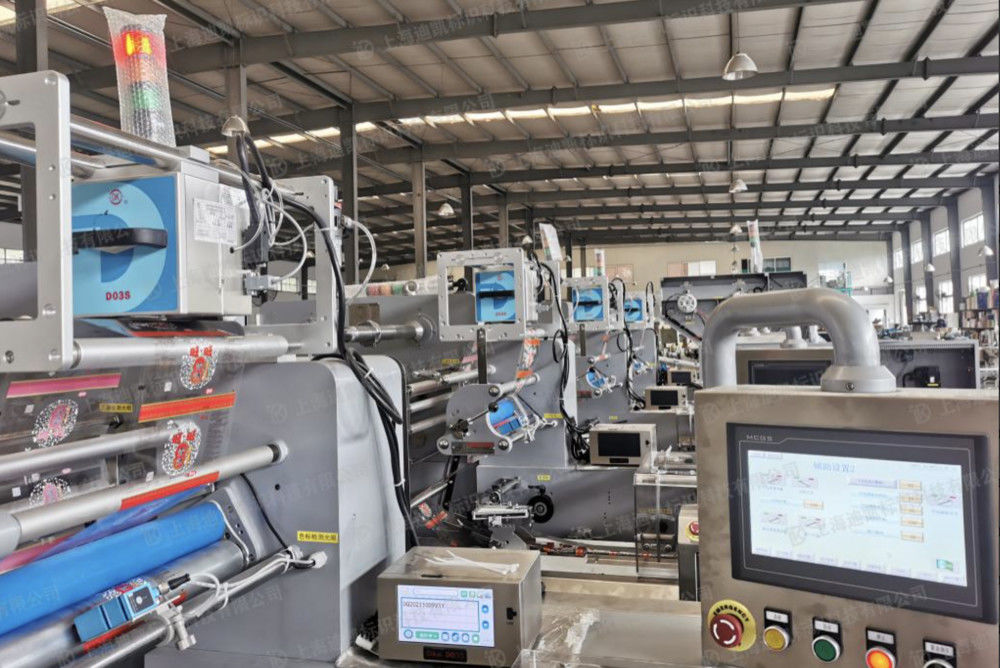

Application:
* Horizontal Continuous packaging machine
* Vertical Intermittent packaging machine
* Labeling Machine
* Feeder
Technical Details:
| Specification | |
|---|---|
| Print Head | Kyocera, 32mm; 300DPI |
| Print Area |
Intermittent: 32mm*60mm Continuous: 32mm*100mm |
| Ribbon Size | 33mm*500mI |
| Printing Frequency |
Intermittent: up tp 350PPM Continuous: up to 40 meters/ minute |
| Environmental Operation Temperature | 0-40℃ |
| Relative Humidity | 10%~95% (non-condensing) |
| Power | AC110~220V, 50/60Hz, 150W |
| Air Supply | 6bar/ 90PSI(MAX) dry uncontaminated |
| Weight | Print head: 8.5kg, Control box: 2.0kg |
| Dimension(L*W*H) |
Print Unit: 188mm*190mm*180mm Controller Box: 210mm*180mm*155mm |
Print Samples
