DK Coding, Marks Each Moment
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | DIKAI |
| Certification: | CE |
| Model Number: | DLF500 |
| Minimum Order Quantity: | 1 set |
| Price: | US $ 12000-15000 per set |
| Packaging Details: | Printer & Control Box in one carton, Mounting Bracket in another carton. |
| Delivery Time: | 10-14 work days |
| Payment Terms: | T/T |
| Supply Ability: | 80 set per month |
| Product Name: | DLF200 Fiber Laser Marking Machine ；Metal Engraving Machine | Marking Speed: | Max 700 Characters / S |
|---|---|---|---|
| Marking Area: | Standard 110mm*110mm Optional | Line Speed: | 0-120 M /min |
| Optic System Life Time: | 100,000 Hours | Interface: | Rs-232, Ethernet, USB |
| Suitable Material: | Metal, Paper, Plastic, Film | Laser Power: | 30W ；customized |

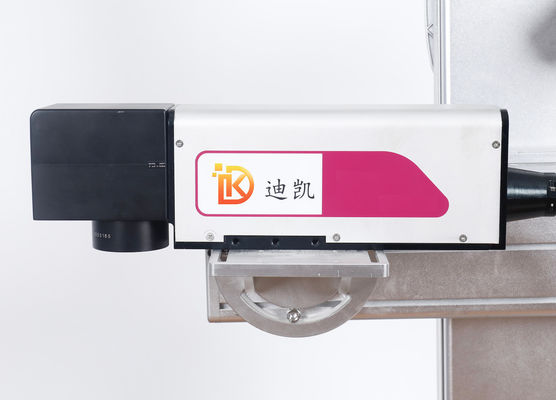

RS232 30W Fiber Laser Marking Machine QR Code For Packaging Machine
Fiber laser marking machines description
DLF fiber laser has smaller size, lower maintenance, no consumables and provides permanent high-quality coding. Can be commonly used in food, cosmetics and other industries of flexible packaging, hard plastic (PE/PP), metal and other materials. It can print high contrast logo, to ensure the traceability of the product permanently.
At the same time in the non - metal printing coding, the identification will be cleaner than CO2 laser printer, very suitable for the identification on flexible packaging films.
The DLF series fiber laser printer can produce unlimited lines of text in any orientation, and in many fonts and sizes. Equally suitable for both graphics and 2D Date Matrix codes. With the aim of maintaining production uptime, 100,000 hours of laser life, easy installation, and compact footprint, the DLF200, DLF300 and DLF500 are flexible and adaptable fiber laser machines euqally suited for static and intermittent coding, as well as marking on-the-fly applications from low to high prodcution line speeds.
Fiber laser marking machines are designed to meet the needs of manufacturers who mark codes and other information on robust, high-density materials such as metals and plastics
Fiber laser marking machines details
| Model | DLF200 | DLF300 | DLF500 |
| Laser Type | Fiber laser, wavelength=1064nm | ||
| Laser Power | 20W | 30W | 50W |
| Features | |||
| CPS | 700 * | 900 * | 1200 * |
| Max Speed | 120 M/Min * | 180 M/Min * | 200 M/Min * |
| Lines | Unlimited Within Marking Area | ||
| Character Heigth | 0.8mm~Max Marking Area | ||
| Font | 26 Fonts, Custom Fonts | ||
| Bar Codes | Code128, Code 39, Data-Matrix Code, QR Code | ||
| Logo/Graphic | BMP/DXF/HPGL/JPEG | ||
| Graphic Elements | Point, Linear arc, Rectangle, Polygon, Ellipse, Circle | ||
| Variable Data | Serial Number, Text, Date, Time, Counter, Shift Code | ||
| Marking Area | 50*50mm to 450*450mm (Optional), 110mm*110mm Standard | ||
| Focal Distance | 184mm (Standard Lens) | ||
| User Interface | 10.1 inch Color Touch Screen, QWERTY or AZERTY Virtual Keyboard, Quick Icon Wizard Operations, Online Help, Language | ||
| Language | Simple/Traditional Chinese, English,Other Languages Are Customizable | ||
| Material | Stainless Steel + Anodized Alumina Construction | ||
| Aiming | Red LED Aiming | ||
| Input/Output | |||
| Sensor/Triger | NPN/PNP, NPN Is Defult | ||
| Encoder | Encoder or Synchronizing Signal | ||
| Signal Input | Start, Stop, Interlock Signal | ||
| Signal Output | Operation Status Indication, Cooling Device Control, Machine Remote Control | ||
| Communication | RS232, Ethernet (10/100 MBit), USB Port | ||
| Facilities Condition | |||
| Power Supply | 100 - 240 VAC,47-63Hz,500W | ||
| Cooling | Air Cooling | ||
| Op Environment | 5-45℃,10-90%RH,No Condensation | ||
| IP Rating | IP55 | ||
| Optional | Bracket, Air Extractor | ||
* The quantity of characters printed each second and production line speed depends on the surface material and marking content.
Fiber laser marking machines features:
High speed
Faster coding speed, up to 700 characters/s.
high quality
The new intelligent control algorithm provides high quality marking technology
high reliability
Enhanced anti-electromagnetic design ensures stable operation in harsh environment
Ease of integration
Compact independent design, can be better integrated into the existing production line
Compact size, can adapt to a variety of installation space
Fiber Laser Marking Machine application
1. Medical devices: These machines are also used in the medical industry for marking medical devices, such as surgical instruments, implants, and prosthetics.
2. Electronics: These machines are used in the electronics industry for marking circuit boards, components, and other electronics with permanent identificationinformation.
Why choose our fiber laser machines, printers, and markers?
Dikai's laser solutions offer flexible positioning using the beverage beam delivery for the smallest footprint on both conveyor and bottle table applications. Exceptional wavelength capabilities, flexible i-Tech scanhead, and unique mirror beam control underpins performance. Modular design enable simple integration into the challenging PET production lines.
Our main products are: Thermal Transfer Overprinter, Ink Roll Coder, Hot Stamper Machine, Laser Printer, Thermal Inkjet Printer and related consumables. Dikai has been committed to flexible packaging coding solutions in long term. Dikai has accumulated more than 40 authorized patents and owns one US invention patent.
