DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20

DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20

Print Speed max 600PPM Hot Ink Roll Coder

Print Area T-Type:≤13lines

max20 Ink Roll Coding Machine

Print Area R-Type:≤10lines

max13 Ink Roller

Place of Origin:

Shanghai, China

Brand Name:

DIKAI

Certification:

CE; ISO 9001

Contact Us
Request A Quote
DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20 DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20 DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20 DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20 DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20 DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20
Product Details
Voltage:
AC220+10V,50/60Hz
Power:
140W,2A Fuse
Print Speed:
Max 600PPM, 50 Meters/minute
Print Area:
T:≤13lines,max20; R:≤10lines,max13
Type Sizes:
T-Type:2.0T,2.5T,3.0T,2.5*7T; R-Type:3.5R,4.5R,5.5R
Pouch Length:
≥38mm(4-up Printer); ≥75mm(2-up Printer)
Ink Roll Size:
36*32mm,36*35mm,36*40mm
Print Frequency:
≤300times/min
Dimensions:
Printer Unit: 94mm*100mm*166mm
Weight:
Print Unit:4KG; Controller Box:2KG
Print Contents:
MFG/EXP Date, Lot Number, Serial Number
Core Components:
PC Board
Automatic Grade:
Automatic
Driven Type:
Electric
Packaging Material:
Paper
Highlight:

Print Speed max 600PPM Hot Ink Roll Coder

,

Print Area T-Type:≤13lines

,

max20 Ink Roll Coding Machine

,

Print Area R-Type:≤10lines

,

max13 Ink Roller

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$600-800
Delivery Time
5-8 working days
RELATED PRODUCTS
Good price Automatic 210V Ink Roll Coding Machine 36mm 2A fuse MFG Date Printing Machine online

Automatic 210V Ink Roll Coding Machine 36mm 2A fuse MFG Date Printing Machine

Get Best Price
Good price 130W Hot Ink Roll Coder 36x35mm 300 PPM Expiry Date Code Printer online

130W Hot Ink Roll Coder 36x35mm 300 PPM Expiry Date Code Printer

Get Best Price
Good price Hot Ink Roll 2.0T 2.5T Automatic Batch Printing Machine / MRP Batch Coding Machine online

Hot Ink Roll 2.0T 2.5T Automatic Batch Printing Machine / MRP Batch Coding Machine

Get Best Price
Good price Industrial 2.5T 50Hz Hot Ink Roll Coder AC 220V Batch Coding Printing Machine online

Industrial 2.5T 50Hz Hot Ink Roll Coder AC 220V Batch Coding Printing Machine

Get Best Price
CONTACT US
info@dikaicoding.net
86-21-51086700
Contact Now
Product Description

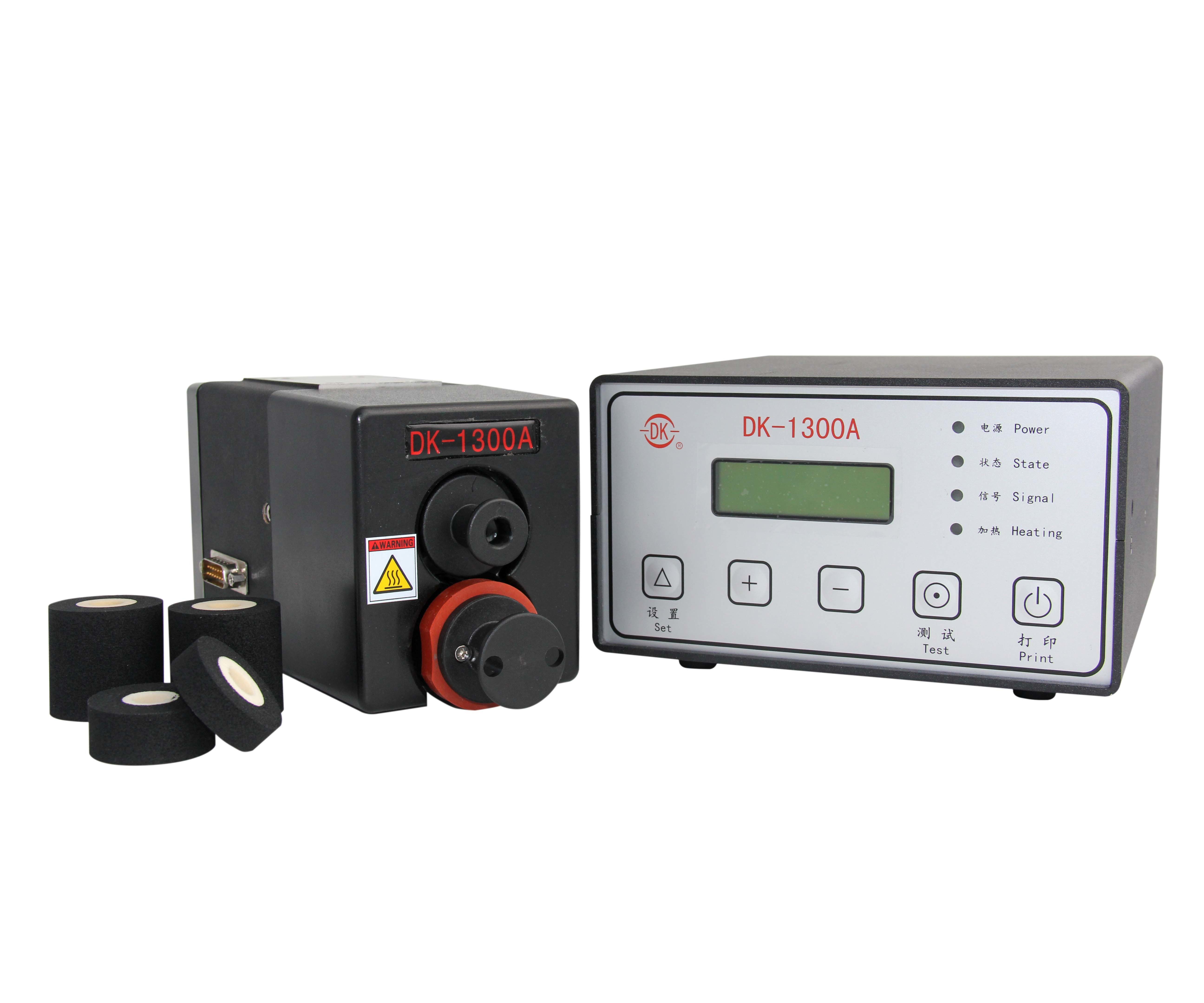

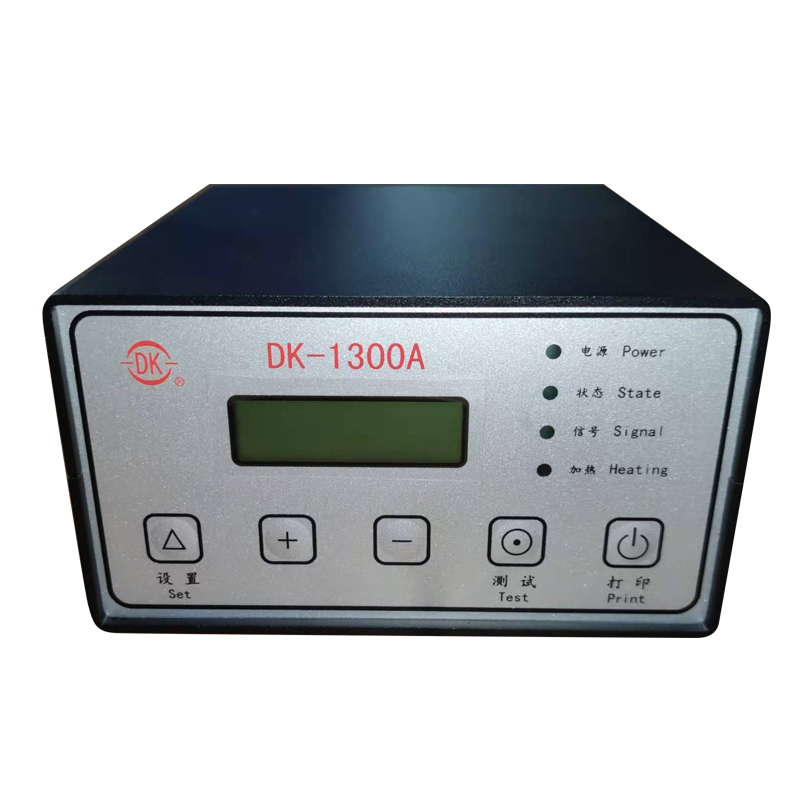

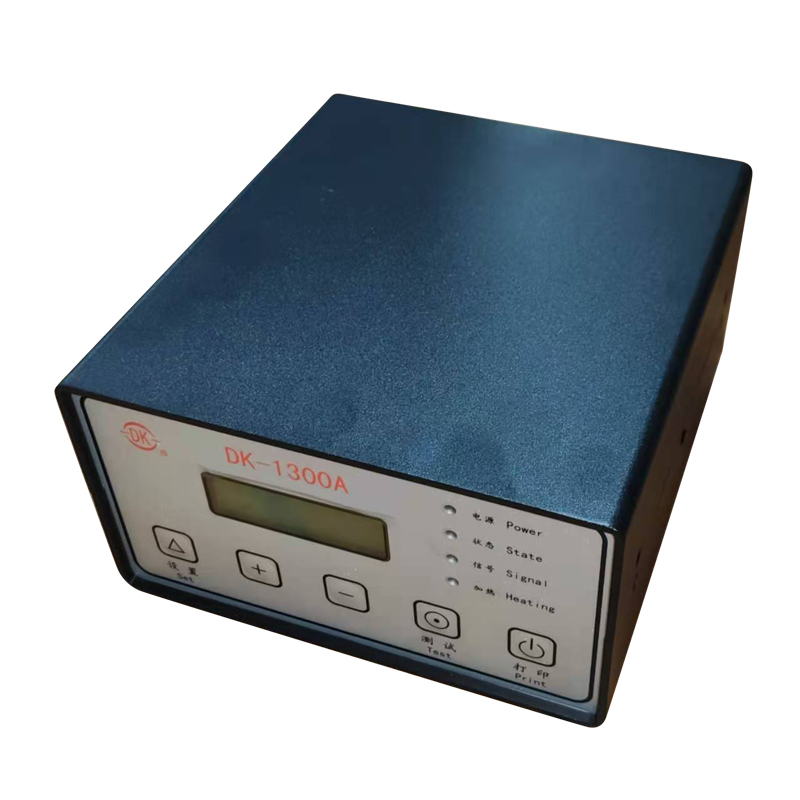

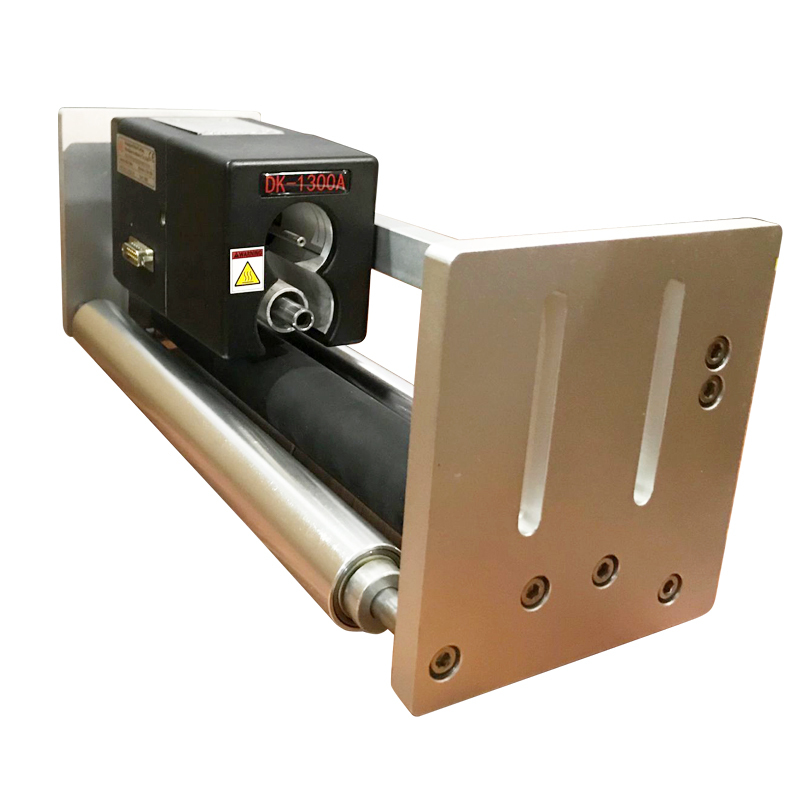

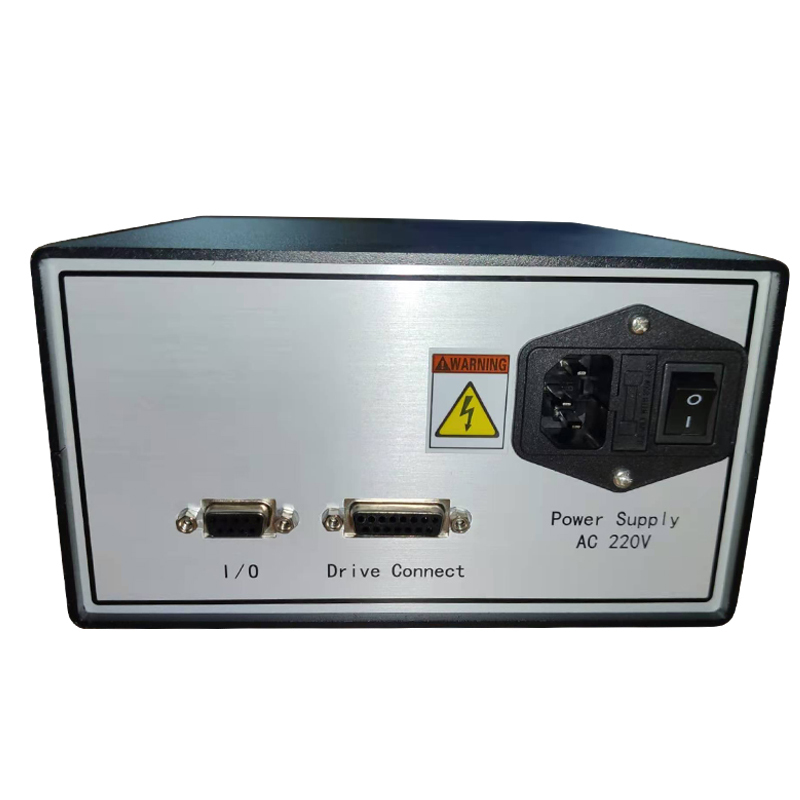

DIKAI Dk-1300A High Speed Ink Roll Coder Hot Ink Roll Coding Machine Ink Roller
Product Overview

The DK-1300A High Speed Ink Roll Coder is an electronic continuous motion coder designed for installation on horizontal flow wrappers to print dates, lot numbers, and other information on plastic film. Widely used in food, pharmaceutical, and tissue industries, this model is installed on over 80% of Chinese horizontal flow wrappers. Leading packaging machine manufacturers like Hualian, Soontrue, Modern, and Soonforward have been our long-term partners.

Key Features
  • High-speed operation
  • Easy installation
  • Stable printing performance
  • Compact design
DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20 0 DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20 1 DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20 2 DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20 3
Technical Specifications
Product Name DK-1300A High Speed Ink Roll Coder
Print Area T-Type (Axial): ≤13 lines, max 20 characters per line
R-Type (Radial): ≤10 lines, max 13 characters per line
Type Sizes T-Type: 2.0T, 2.5T, 3.0T, 2.5*7T
R-Type: 3.5R, 4.5R, 5.5R
Pouch Length ≥38mm (4-up printer)
≥75mm (2-up printer)
Print Frequency ≤300 times/min
Ink Roll Required 36*32mm, 36*35mm, 36*40mm
Electricity AC220+10V, 50/60Hz
Power 140W, 2A fuse
Print Speed Max 900PPM, 60 meters/minute
Print Contents MFG/EXP date, lot number, serial number, etc.

Note: The prices shown on Alibaba are not final prices. Please consult us for proper solutions.

Packaging & Shipping

The carton package is suitable for sea, air, and fast courier shipping.

DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20 4 DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20 5
After Sales Service
DK-1300A High Speed Automatic Hot Ink Roll Coder with Print Speed max 600PPM and Print Area T-Type:≤13lines,max20 6
  • R&D supports
  • Operation Manual Guidance
  • Within 24-hour professional online supports
  • Video supports
  • Possible onsite supports
Frequently Asked Questions
1. Why choose Dikai?

Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We commit to satisfying every customer's different needs in coding and marking.

2. What's the regular lead time for Dikai Products?

Lead time for all Dikai goods is 1-2 weeks after order confirmation. Stocked goods can be delivered in 2 working days.

3. What's the warranty of Dikai goods?

Standard warranty is 12 months after leaving Dikai warehouse.

4. How about your after-sales service?

For countries with distributors, we rely on our distributor network for after-sales services. Dikai also provides online technical support and continuously upgraded video support materials.
