DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding

Max 150 Prints/Minute Ink Roll Coder

Max 3 Lines Hot Ink Roll Coder

20 Characters/Line Intermittent Ink Roll Coder

Place of Origin:

Shanghai, China

Brand Name:

DIKAI

Certification:

CE; ISO 9001

Request A Quote

DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding

Product Details

Print Area:

40mm * 3lines

Print Speed:

Max 150 Prints/minute

Print Lines:

Max 3 Lines, 20 Characters/line

Font Size:

Height 3.5mm * 1.5, 2, 2.5mm (Width)

Ink Roll Size:

φ36*32, φ36*40mm (suggested)

Power Supply:

AC 220±10V, 50/60Hz, 130W, 2A

Working Temperature:

4-40℃, 10% - 95% Humidity

Voltage:

130W,2A Fuse

Dimensions:

205mm*162.5mm*124mm

Weight:

2.2KG

Print Contents:

MFG/ EXP Date, Lot Number, Serial Number, Etc

Type Sizes:

T-Type:3.5mm*1.5T,2.0T,2.5T(W)

Print Speed:

Max 900PPM, 60 Meters/ Minute

Core Components:

PC Board

Driven Type:

Electric

Highlight:

Max 150 Prints/Minute Ink Roll Coder

Max 3 Lines Hot Ink Roll Coder

20 Characters/Line Intermittent Ink Roll Coder

Payment & Shipping Terms

Minimum Order Quantity

Price

$500-600

Delivery Time

5-8 working days

Automatic 210V Ink Roll Coding Machine 36mm 2A fuse MFG Date Printing Machine

Get Best Price

130W Hot Ink Roll Coder 36x35mm 300 PPM Expiry Date Code Printer

Get Best Price

Hot Ink Roll 2.0T 2.5T Automatic Batch Printing Machine / MRP Batch Coding Machine

Get Best Price

Industrial 2.5T 50Hz Hot Ink Roll Coder AC 220V Batch Coding Printing Machine

Get Best Price

info@dikaicoding.net

86-21-51086700

Contact Now

Product Description

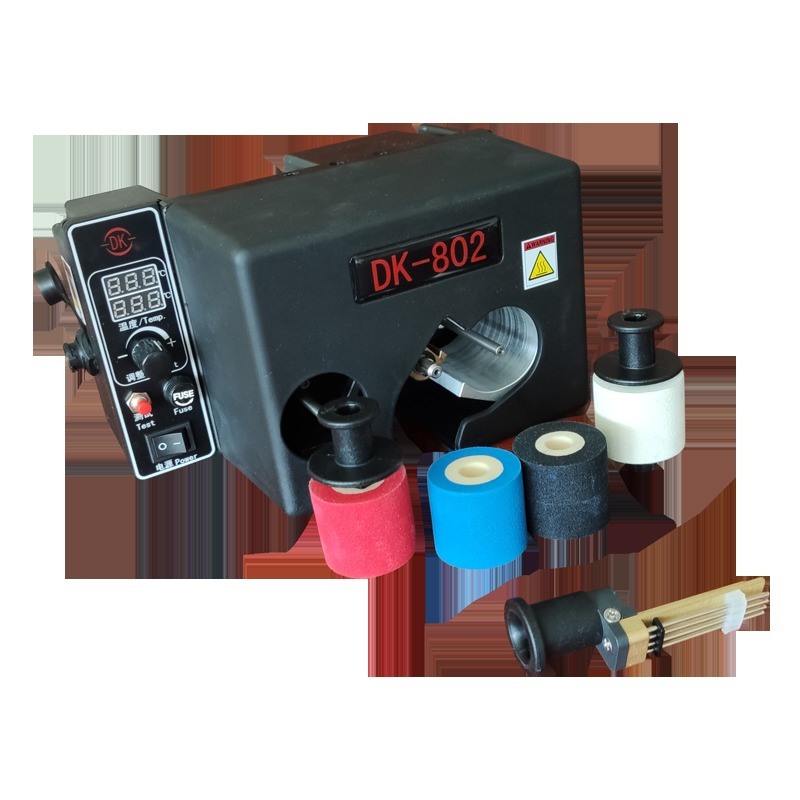

DIKAI DK-802 Intermittent Ink Roll Coder

Product Overview

The DK-802 Intermittent Ink Roll Coder was developed by Dikai R&D as an upgraded version of the DK-801 model. This innovative coder combines the print head and control box into a single unit, significantly reducing costs while maintaining high performance.

Designed for integration with intermittent packaging machines, the DK-802 efficiently prints essential information including dates and lot numbers. With a maximum speed of 150 ppm, it meets the requirements of most intermittent packaging systems. Compared to intermittent hot stamp coders, the DK-802 offers substantial savings through its economical hot ink roll consumables.

Key Features

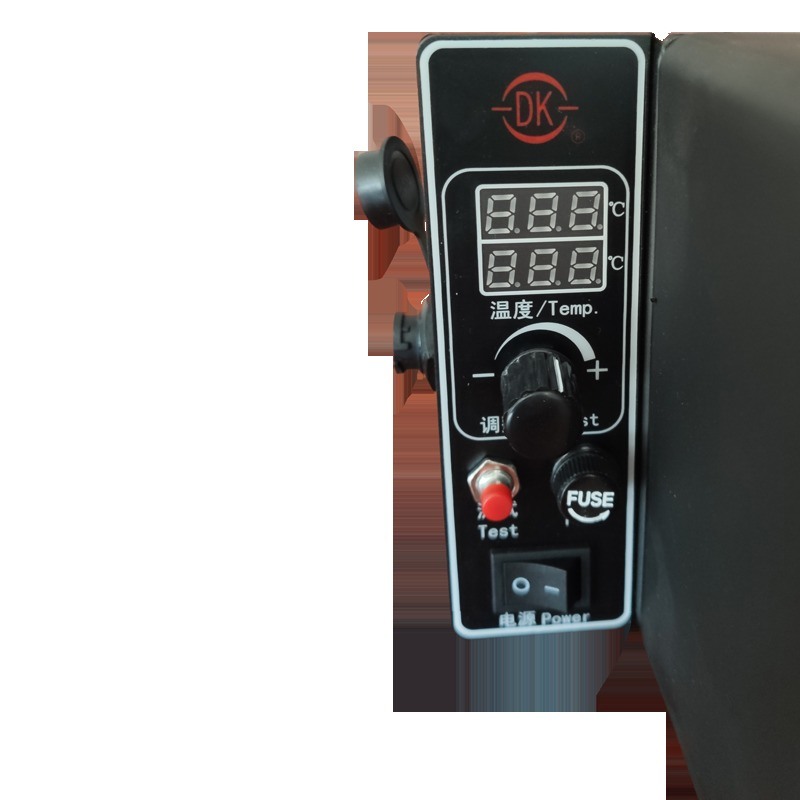

LED Display for clear operation monitoring
Consistent, stable printing performance
Reduced mechanical wear for longer service life

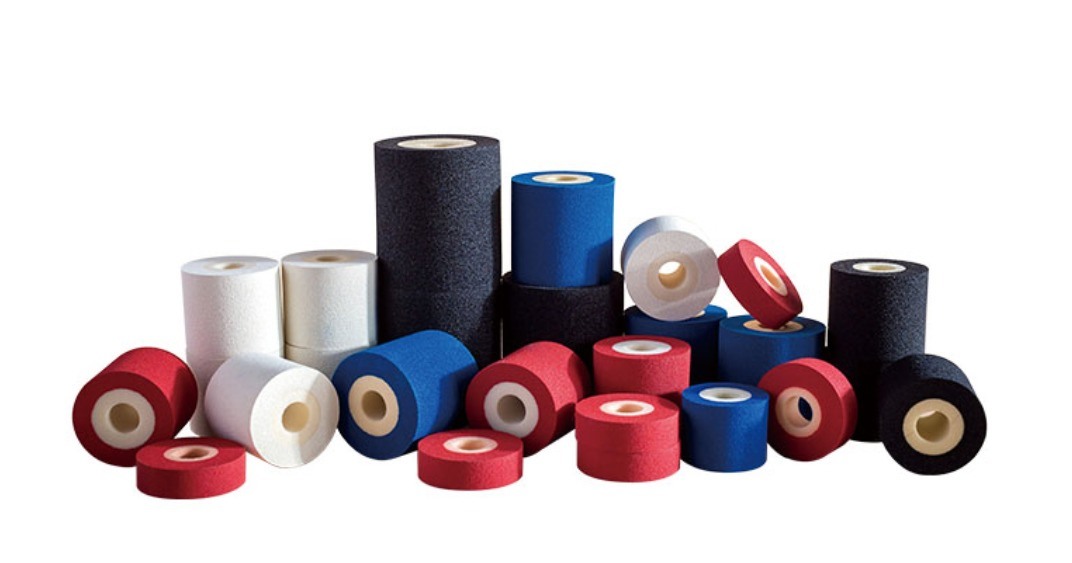

Low-cost consumables for economical operation
Compact design for space-efficient installation
Simple setup and user-friendly operation

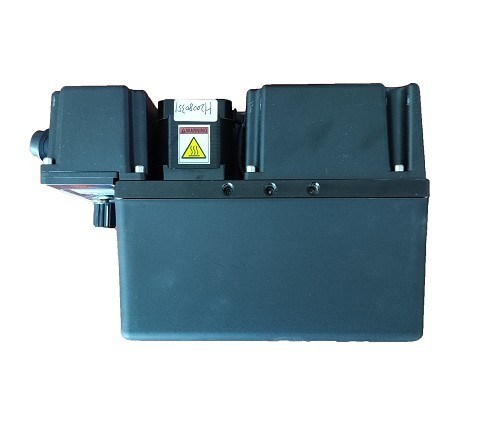

Right elevation view

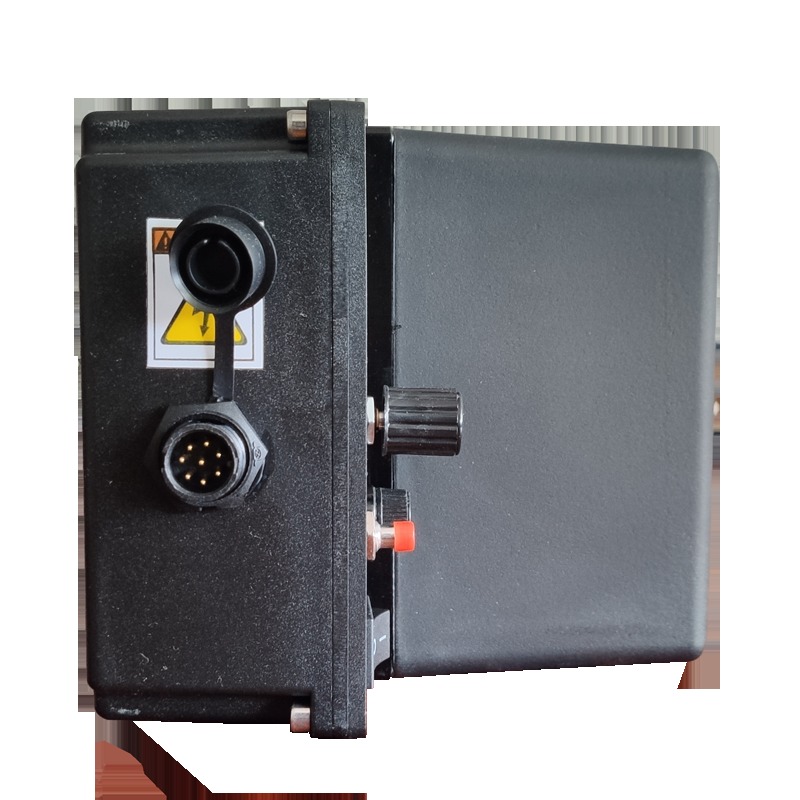

Left elevation view

Front elevation view

Technical Specifications

Print Area	40mm × 3 lines
Print Speed	Maximum 150 prints/minute
Print Lines	Maximum 3 lines, 20 characters/line
Font Size	Height 3.5mm × Width 1.5mm, 2mm, or 2.5mm
Controller	LED Display
Ink Roll Size	φ36×32mm or φ36×40mm (recommended)
Power Supply	AC 220±10V, 50/60Hz, 130W, 2A
Operating Conditions	4-40℃, 10%-95% humidity

Note: Prices shown are indicative only. Please contact us for customized solutions and accurate pricing.

Packaging & Shipping

The DK-802 is packaged in durable cartons suitable for sea, air, or express courier shipping.

After-Sales Support

Our comprehensive technical support includes:

R&D technical assistance
Detailed operation manual guidance
24-hour professional online support
Instructional video resources
Onsite support when required

Frequently Asked Questions

Why choose Dikai?

With 25 years of experience in coding machine development and manufacturing, we are committed to meeting diverse customer needs in coding and marking applications.

What is the standard lead time for Dikai products?

Standard lead time is 1-2 weeks after order confirmation. Stocked items can be shipped within 2 working days.

What warranty does Dikai provide?

All products come with a standard 12-month warranty from the date of leaving our warehouse.

How does your after-sales service work?

In countries with authorized distributors, we work through our local partners. Additionally, we provide direct online technical support and continuously updated video resources.
