Dikai D03S 32mm Printhead 300dpi Resolution Thermal Transfer Overprinter with 40 M/Min Print Speed

32mm thermal transfer overprinter

300dpi barcode overprinter

40 M/Min print speed overprinter

Brand Name:

Dikai

Certification:

CE Certification

Request A Quote

Dikai D03S 32mm Printhead 300dpi Resolution Thermal Transfer Overprinter with 40 M/Min Print Speed

Product Details

Model NO.:

D03S

After-sales Service:

Online Tech Support

Warranty:

One Year

Type:

Thermal Foam Coding Machine

Usage:

Daily Industrial, Chemical Products, Drug, Food

Automatic Grade:

Fully Automatic

Principle Of Classification:

Thermal Transfer Overprint

Application Of Classification:

Thermal Transfer Overprinter

Working Patterns:

On-Line

Supplies:

TTR

Packaging:

Box

Use:

Barcode Printer

Black Print Speed:

40 M/Min

Max. Resolution:

300dpi

Print Head:

32mm Width, 300 Dpi (12 Dots/mm)

Print Area:

Continuous: 32*100mm; Intermittent: 32*60mm

Print Speed:

Continuous: Max. 40 Meters/Minute; Intermittent: 4

Consumable:

Thermal Transfer Ribbon

After-Sales Service Provided:

Overseas Third-Party Support Available

Print Contents:

Bar Code, Qr Code, Image, Variable Information, Et

Optional:

Mounting Bracket, Encoder, TTR Ribbon, Rubber Pad

Advantage:

Intermittent And Continuous Mode Combined

Supply Ability:

700 Sets Per Month

Product Name:

Dikai D03s Thermal Transfer Printer

Trademark:

Dikai

Transport Package:

Carton Box

Specification:

32*60mm

Origin:

Shanghai

HS Code:

8456110090

Highlight:

32mm thermal transfer overprinter

300dpi barcode overprinter

40 M/Min print speed overprinter

Payment & Shipping Terms

Minimum Order Quantity

Price

3000

Delivery Time

5-8 working days

Carton Barcode Overprinter / Expiry Date Inkjet Printer With Tij 2.5 Technology

Get Best Price

Metal 50w 100W Fiber Laser Marking Machine Barcode 120m/min

Get Best Price

TIJ 2.5 Barcode Overprinter 2 head Solvent Based Industrial Inkjet Printing Machines

Get Best Price

20 50 Watt Fiber Laser Marking Machine IP55 Air Cooling For Metals

Get Best Price

info@dikaicoding.net

86-21-51086700

Contact Now

Product Description

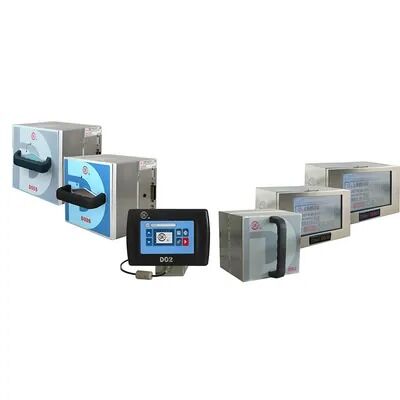

DK-D03S Thermal Transfer Overprinter

DIKAI D03S Thermal Transfer Printer was designed by our own R&D department. it was released in 2013, intermittent and continuous mode combined in one machine, suitable for both horizontal and vertical packing machines. D03S adpots 300dpi printhead to print bar codes, QR codes, dates, real time, graphics, pictures, logos and other variable information directly onto packaging, substrate and other materials. The size, position and content of information can be fixed or altered at the D03S user interface.

S Series Advantages: Bi-moto control, up to 0.1mm precise print gap; wider print speed range, 20mm/s to max 670mm/s; add ribbon save modes, improve the usage rate; suitable for automatic material handing line, avoid miss prints and print position deviation, add network interface can communicate to related system.

Features
▪ Printhead 32mm, 300 DPI resolution

▪ Print real time, date and lot number

▪ Max 500m ribbon length reduce machine downtime

▪ Ribbon save mode

▪ Print variable QR Code, barcode, logo, image, etc.

▪ Easy to learn designer program

▪ Ribbon Cassette

Product Parameters

	D03S Intermittent	D03S Continuous
Print Head	32mm width, 300dpi (12 dots/mm)
Print Area	32mmx60mm	32mmx150mm
Print Speed	6-20m/min	up to 40m/min
Frequency	max 300 PPM	max 300 PPM
Ribbon Length	500m
Ribbon Width	22mm-33mm
Interface Voltage	USB, RS232, Ethernet AC 100-240V 50/60Hz
Power	200W
Work Temperature	0-40ºC
Relative Humidity	10%-95% (non condensity)
Air Supply	6 bar/90psi (max), dry, non-polluted air
Weight	Printer Unit: 8.5KG, Controller: 2.0KG
Language Available	English, French, Russian, German, Spanish, Korea, Jananese, Arabic,Italian, Portuguese, Chinese,etc
Dimension	Printer Unit: 188x190x180mm Controller: 175x235x110mm

Printing Sample

Company Profile

Shanghai DIKAI Coding Industry Co., Ltd was founded in 1995, and DIKAI has dedicated itself to comprehensive coding solutions provider with R&D, innovation, manufacturing, sales & service of quality coding machines & consumables. Our headquarters is located in Shanghai, China, we have 16 branches offices and many authorized distributors in domestic. Our products have been exported to more than 100 countries and regions since 2006. Adhering to the company philosophy of "Core Technology, Prominent Service", DIKAI has been committed to flexible packaging coding solutions in long term. DIKAI has accumulated more than 40 authorized patent and owns one US invention patent. Besides, we are aiming at constructing a worldwide distribution network. With intelligent solutions, we hope can become your reliable partner and bring add value to you in near future.

Packaging & Shipping

FAQ

1. Why choose Dikai?

-- Our company has dedicated to development, manufacturing and sales of qualified coding machines and consumables for 25 years. Meanwhile, we commit ourselves to satisfy every customer's different needs in coding and marking area.

2. What's the regular lead time for Dikai Products?
-- Lead time for all Dikai good is 1-2 weeks after order confirmation. For the stocked goods, delivery can be made in 2 working days.

3. What's the warranty of Dikai goods?
-- Regularly 12 months after leaving Dikai Warehouse.

4. How about your after-sales service?
-- For the countries where we have distributors, we depend on our distributor to do after sales services. Dikai also provide online technical services besides of continuously upgraded video supports.
