DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty

13 Lines Print Area Hot Ink Roll Coder

AC220V Ink Roll Coder

1 Year Warranty Date Coding Machine

Place of Origin:

Shanghai, China

Brand Name:

DIKAI

Certification:

CE; ISO 9001

Request A Quote

DIKAI DK-1100A High Speed Hot Ink Roll Coder with 13 Lines Print Area AC220V and 1 Year Warranty

Product Details

Voltage:

AC220+10V,50/60Hz

Power:

130W,2A Fuse

Print Speed:

Max 300PPM, 35 Meters/minute

Print Area:

T-Type: ≤13 Lines, Max 20 Characters Per Line; R-Type: ≤10 Lines, Max 13 Characters Per Line

Type Sizes:

T-Type: 2.0T, 2.5T, 3.0T, 2.5*7T; R-Type: 3.5R, 4.5R, 5.5R

Pouch Length:

≥38mm (4-up Printer), ≥75mm (2-up Printer)

Ink Roll Size:

36*32mm, 36*35mm, 36*40mm

Dimensions:

Printer Unit: 120*100*170mm

Weight:

Print Unit: 2KG, Controller Box: 1KG

Print Frequency:

≤300 Times/min

Print Contents:

MFG/EXP Date, Lot Number, Serial Number, Etc

Core Components:

PC Board

Driven Type:

Electric

Automatic Grade:

Automatic

Packaging Material:

Paper

Highlight:

13 Lines Print Area Hot Ink Roll Coder

AC220V Ink Roll Coder

1 Year Warranty Date Coding Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

US$450-600

Delivery Time

5-8 working days

Automatic 210V Ink Roll Coding Machine 36mm 2A fuse MFG Date Printing Machine

Get Best Price

130W Hot Ink Roll Coder 36x35mm 300 PPM Expiry Date Code Printer

Get Best Price

Hot Ink Roll 2.0T 2.5T Automatic Batch Printing Machine / MRP Batch Coding Machine

Get Best Price

Industrial 2.5T 50Hz Hot Ink Roll Coder AC 220V Batch Coding Printing Machine

Get Best Price

info@dikaicoding.net

86-21-51086700

Contact Now

Product Description

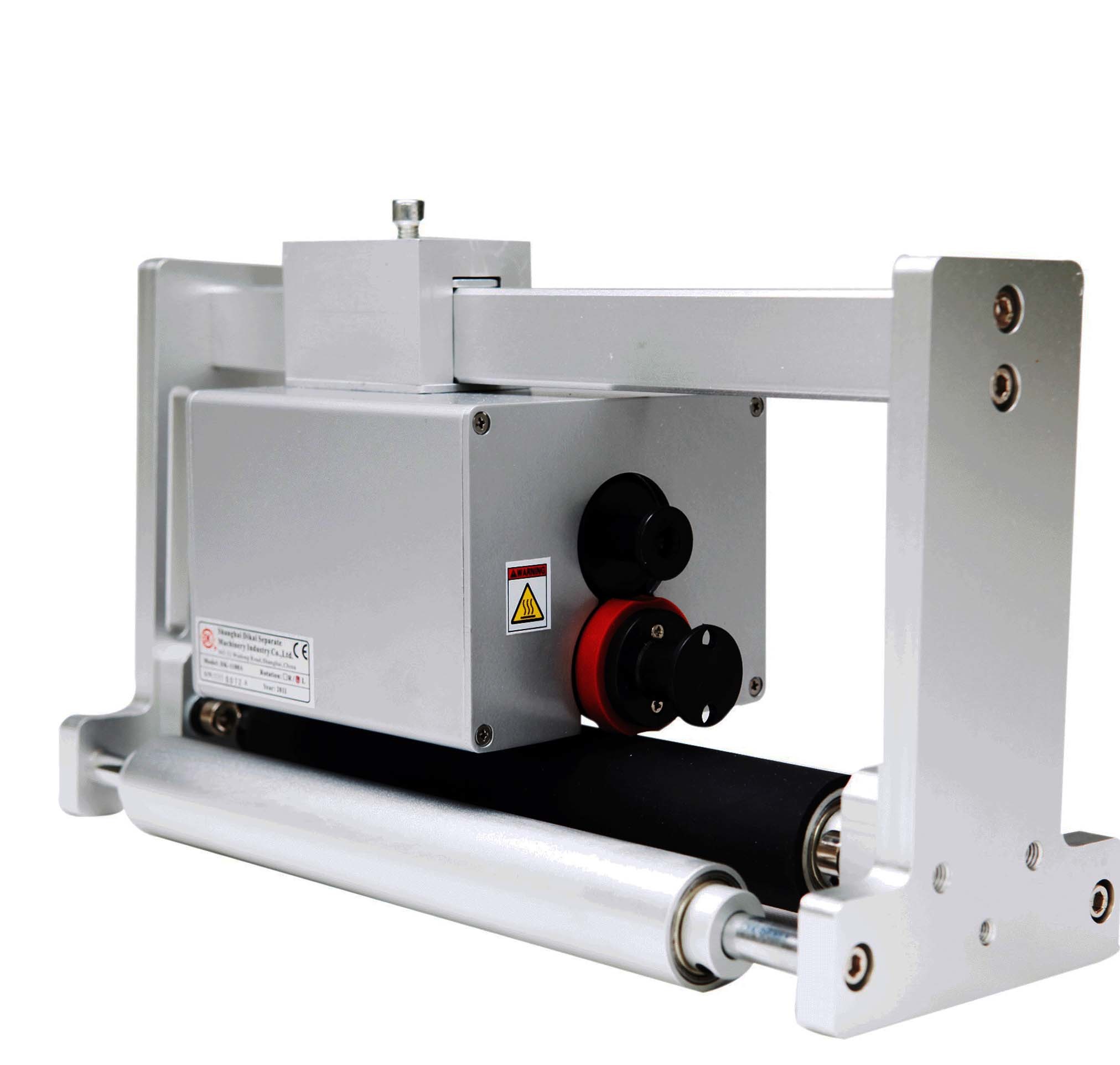

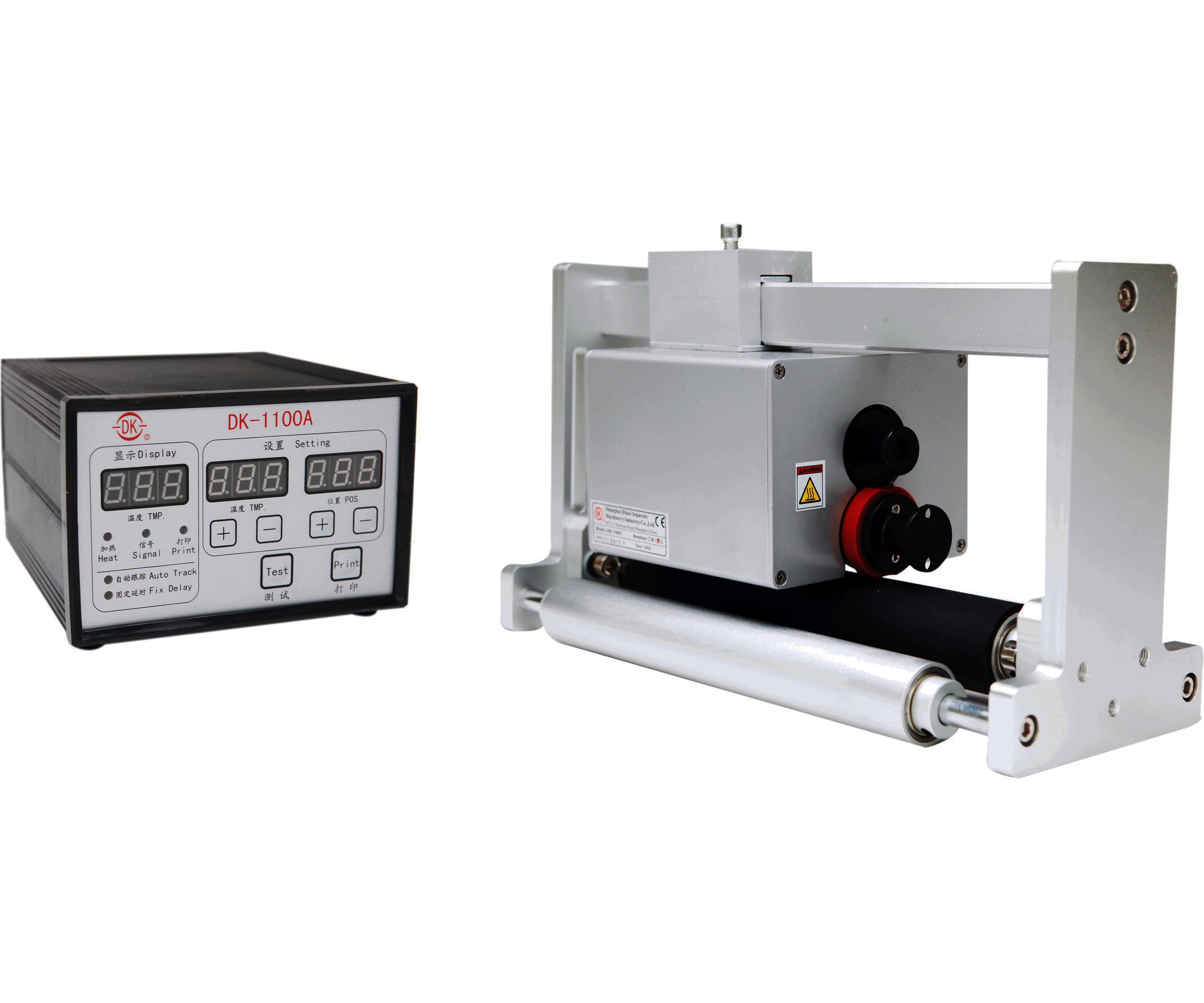

DIKAI Dk-1100A High Speed Date Coder Hot Ink Roll Coder

Product Overview

The DK-1100A Ink Roll Coder is an electronic continuous motion coder designed for integration with packing machines, capable of printing at speeds up to 300 PPM. With a print area supporting up to 13 lines, it efficiently prints MFG/EXP dates, lot numbers, and other essential information on flexible packaging films. Widely used in food, daily chemicals, tissue, rice, and seed industries, this reliable model has sold over 100,000 units since its 2011 launch, offering nearly maintenance-free operation for significant cost savings.

Key Features

Fast Speed - Maximum printing speed of 300 PPM
Stable Printing - Consistent high-quality output
Less Mechanism Consumption - Reduced maintenance requirements
Compact Size - Space-efficient design
Simple Installation and Operation - User-friendly setup

Product Images

Technical Specifications

Product Name	DK-1100A Ink Roll Coder
Print Area	T-Type (Axial): ≤13 lines, max 20 characters per line R-Type (Radial): ≤10 lines, max 13 characters per line
Type Sizes	T-Type: 2.0T, 2.5T, 3.0T, 2.5*7T R-Type: 3.5R, 4.5R, 5.5R
Pouch Length	≥38mm (4-up printer) ≥75mm (2-up printer)
Print Frequency	≤300 times/min

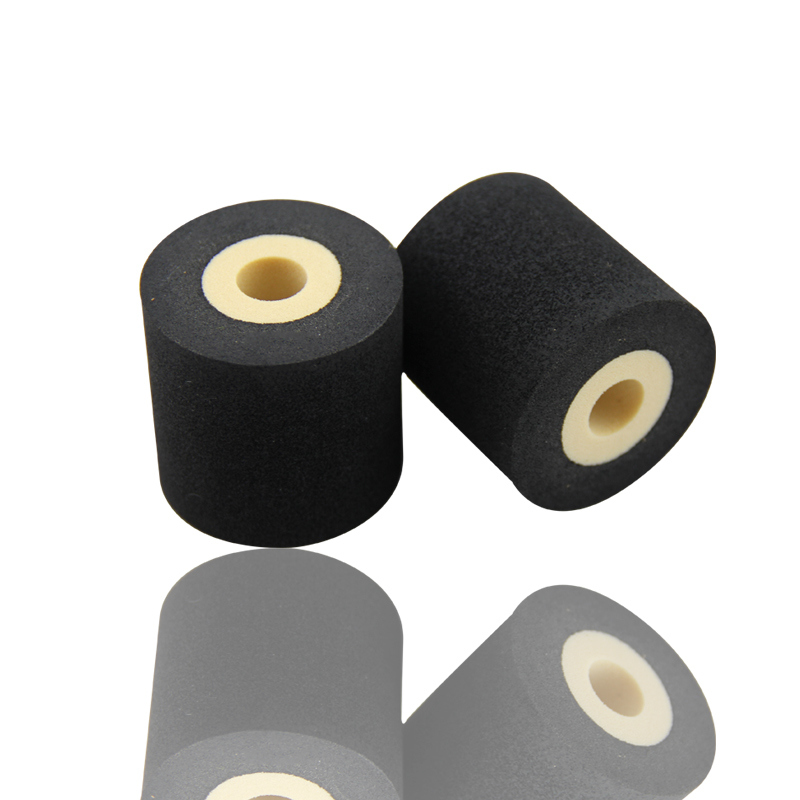

Ink Roll Required	3632mm, 3635mm, 36*40mm
Electricity	AC220+10V, 50/60Hz
Power	130W, 2A fuse
Print Speed	Max 300PPM, 35 meters/minute
Print Contents	MFG/EXP date, lot number, serial number, etc.

Note: The prices shown on Alibaba are not final prices. Please consult us for customized solutions.

Packaging & Shipping

The carton package is suitable for sea, air, and fast courier shipping.

After Sales Service

R&D supports
Operation Manual Guidance
Within 24-hour professional online supports
Video supports
Possible onsite supports

Frequently Asked Questions

1. Why choose Dikai?

Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We are committed to satisfying every customer's unique needs in coding and marking applications.

2. What's the regular lead time for Dikai Products?

Standard lead time is 1-2 weeks after order confirmation. For stocked goods, delivery can be made within 2 working days.

3. What's the warranty of Dikai goods?

Standard warranty is 12 months after leaving Dikai warehouse.

4. How about your after-sales service?

In countries with distributors, we rely on our local partners for after-sales services. Dikai also provides online technical support and continuously upgraded video resources.
