DIKAI DK-1100B Hot Ink Roll Coder with AC100-AC230V Voltage Compact 120 X 100 X 170 mm Size and 1 Year Warranty

AC100-AC230V Hot Ink Roll Coder

120 X 100 X 170 mm Ink Roll Coder

1 Year Warranty Expiry Date Printer

Place of Origin:

Shanghai, China

Brand Name:

Dikai

Request A Quote

Product Details

Voltage:

AC100-AC230V, 50/60 Hz

Dimensions:

120 X 100 X 170 Mm

Weight:

4 KG

Max Print Speed:

300 Prints/ Minute

Print Area:

Max 13 Lines, 20 Characters/ Line

Print Head Weight:

2.0kg

Control Box Weight:

1.0kg

Print Head Dimensions:

120mm*100mm*170mm (L*W*H)

Control Box Dimensions:

180mm*180mm*102mm (L*W*H)

Power:

130W, 2A Fuse

Temperature Range:

4°c-40 °c

Surface Speed:

Up To 35 Meters/minute

Font Size:

T-type 1.5mm, 2.0mm, 2.5mm, 3.0mm*3.5mm; R-type 3.5mm*3.5mm, 4.5mm, 5.5mm

Ink Roll Size:

¢36*40mm

Print Head Type:

Right-hand(Clockwise), Left-hand (Counter-clockwise)

Highlight:

AC100-AC230V Hot Ink Roll Coder

120 X 100 X 170 mm Ink Roll Coder

1 Year Warranty Expiry Date Printer

Payment & Shipping Terms

Minimum Order Quantity

Price

$450-600

Delivery Time

5-8 working days

Automatic 210V Ink Roll Coding Machine 36mm 2A fuse MFG Date Printing Machine

Get Best Price

130W Hot Ink Roll Coder 36x35mm 300 PPM Expiry Date Code Printer

Get Best Price

Hot Ink Roll 2.0T 2.5T Automatic Batch Printing Machine / MRP Batch Coding Machine

Get Best Price

Industrial 2.5T 50Hz Hot Ink Roll Coder AC 220V Batch Coding Printing Machine

Get Best Price

info@dikaicoding.net

86-21-51086700

Contact Now

Product Description

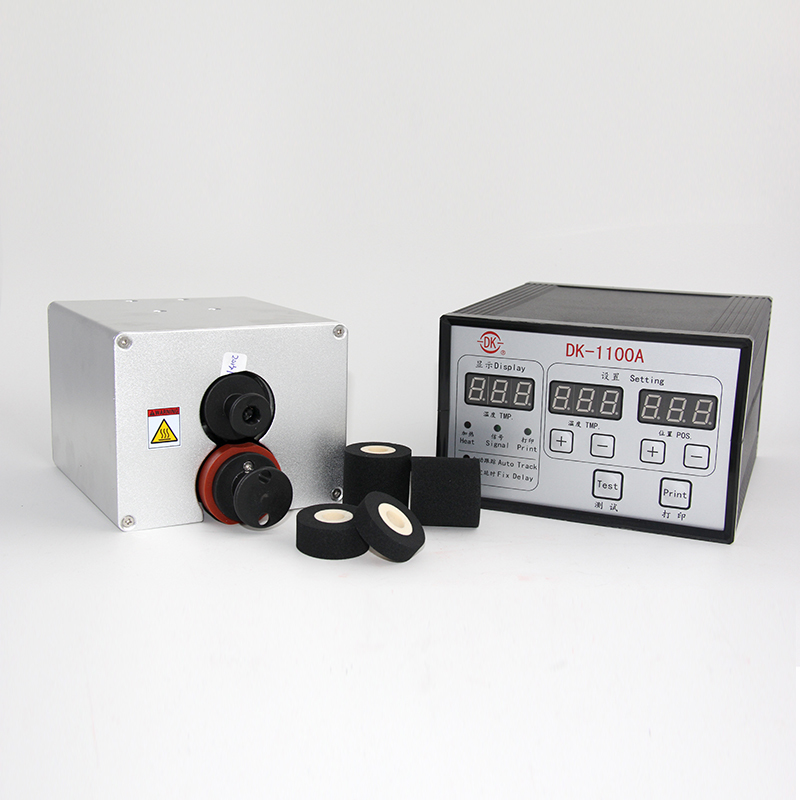

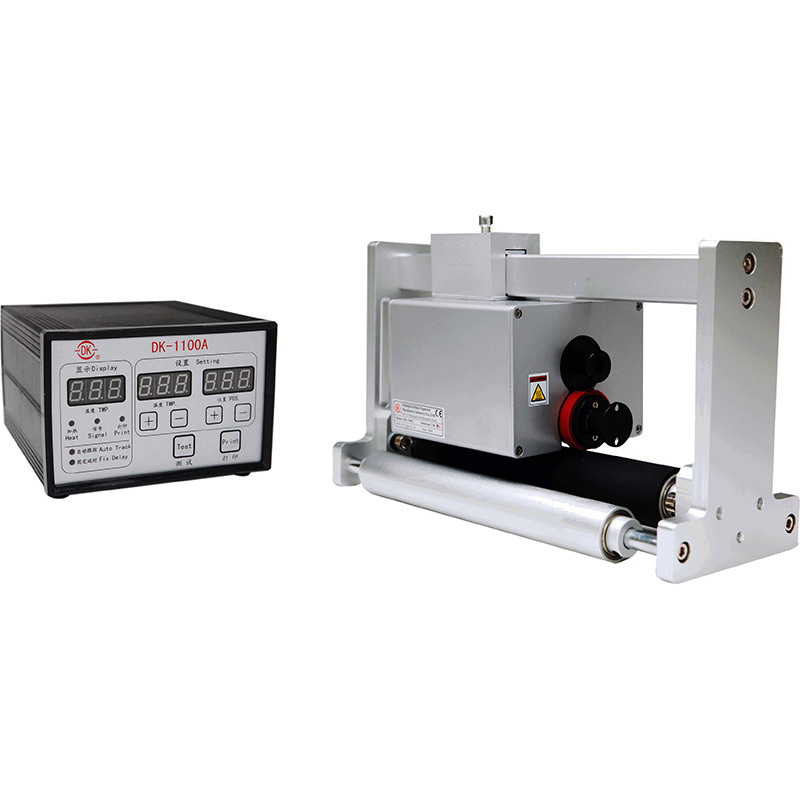

DIKAI DK-1100B Ink Roll Coder

Product Overview

The DIKAI DK-1100A Ink Roll Coder is an electronic continuous motion coder designed for integration with packing machines. This high-performance printer features:

Maximum printing speed of 300 PPM
Print area supporting up to 13 lines for MFG/EXP dates, lot numbers, and other essential information
Ideal for flexible packing films in food, daily chemicals, tissue, rice, seed, and related industries
Proven reliability with over 100,000 units sold since 2011
Nearly maintenance-free operation for significant cost savings

Key Features

Stable printing performance
Minimal mechanism consumption
Compact footprint
Simple installation process
Easy operation

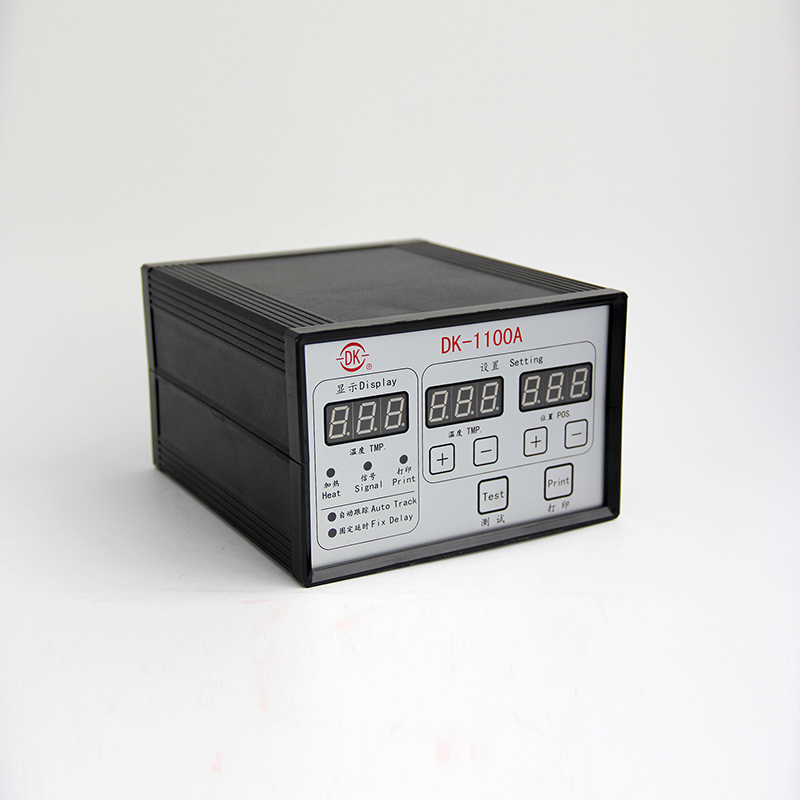

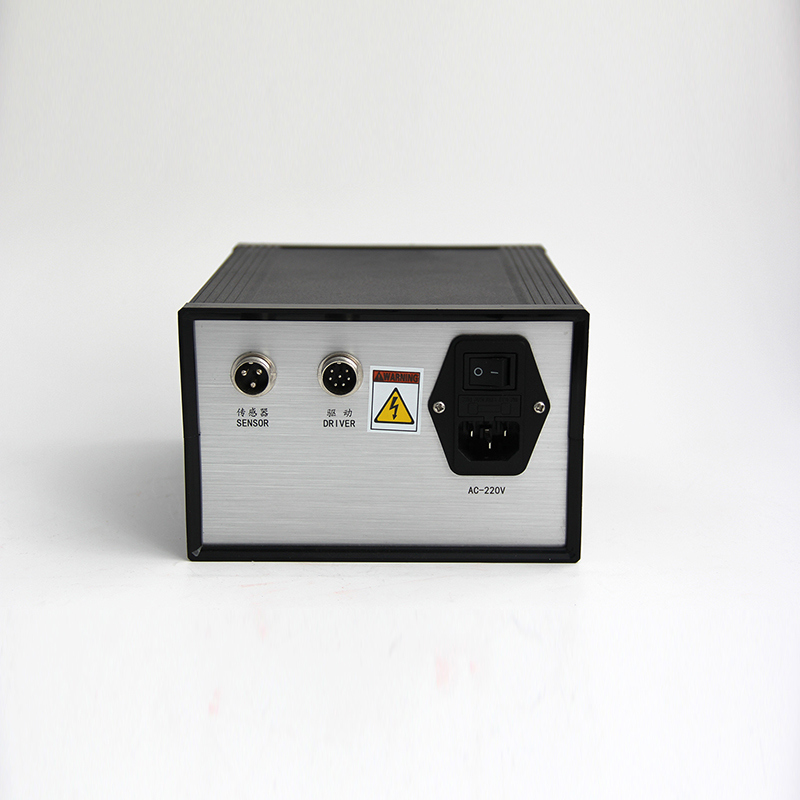

Controller Unit

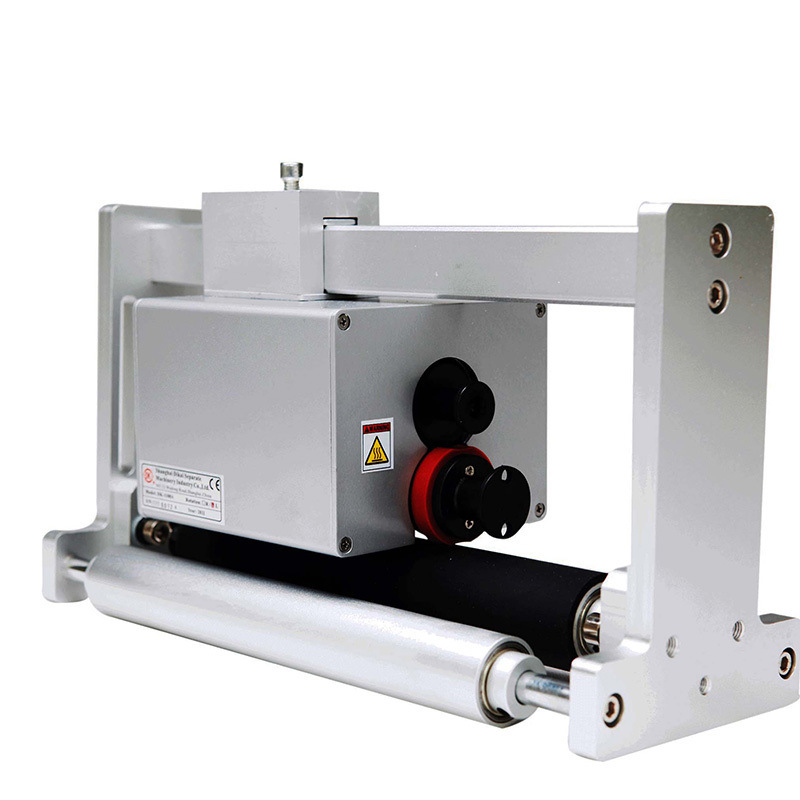

Print Unit

Technical Specifications

Print Area	Axial=40mm; Radial=45.5mm
Pouch Length	≥38mm (4-up printer) ≥75mm (2-up printer)
Print Lines	T-type (Axial) up to 13 lines, max 20 characters/line R-type (Radial) up to 10 lines, max 13 characters/line
Font Size	T-type 1.5mm, 2.0mm, 2.5mm, 3.0mm3.5mm R-type 3.5mm3.5mm, 4.5mm, 5.5mm
Print Speed	Up to 300 prints/minute
Surface Speed	Up to 35 meters/minute
Weight	Print Head 2.0kg Control box 1.0kg
Dimensions	Print Head 120mm100mm170mm (LWH) Control Box 180mm180mm102mm (LWH)
Ink Roll Required	¢36*40mm
Electrical	AC100-230V, 50/60Hz
Power	130W, 2A Fuse
Temperature Range	4°C-40°C

Note: The prices shown on Alibaba are not final prices. Please consult us for proper solutions tailored to your needs.

Packaging & Shipping

The carton package is suitable for sea, air, and fast courier shipping.

After Sales Service

R&D supports
Operation Manual Guidance
Within 24-hour professional online supports
Video supports
Possible onsite supports

Frequently Asked Questions

1. Why choose Dikai?

Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We are committed to satisfying every customer's unique needs in coding and marking applications.

2. What's the regular lead time for Dikai Products?

Standard lead time is 1-2 weeks after order confirmation. For stocked goods, delivery can be made within 2 working days.

3. What's the warranty of Dikai goods?

Standard warranty is 12 months after leaving Dikai warehouse.

4. How about your after-sales service?

For countries with distributors, we rely on our distributor network for after-sales services. Dikai also provides online technical support and continuously upgraded video support materials.
