DIKAI DK-1100B Hot Ink Roll Coder with 1 Year Warranty Long Service Life for Food Industry Date Printing Machine

Basic Information

Place of Origin:	Shanghai, China
Brand Name:	DIKAI
Certification:	CE; ISO 9001

Minimum Order Quantity:	1
Price:	$400-500

Get Best Price Contact Now

Core Components:	PC Board	Voltage:	130W, 2A Fuse
Dimensions:	120100170mm	Print Area:	Max 13lines, 20 Characters/ Line
Type Sizes:	3mm, 3.5mm Or As Requested	Pouch Length:	≥38mm(4-up Printer) ≥75mm(2-up Printer)
Ink Roll Required:	36*32/ 35/ 40mm	Power Supply:	AC220+10V,50/60Hz
Print Speed:	Max 300PPM, 35 Meters/ Minute	Print Contents:	MFG/ EXP Date, Lot Number, Serial Number, Etc
Weight:	Print Unit:2KG,Controller Box:1KG	Print Frequency:	≤300 Prints/ Min
Surface Speed:	35 Meters/ Minute	Print Lines:	Max 13 Lines
Package Size:	77* 33*27cm
Highlight:	1 Year Warranty Hot Ink Roll Coder , Long Service Life Ink Roll Coder , Food Industry Date Printing Machine

DIKAI DK-1100B Hot Ink Roll Coder

The DK-1100B Ink Roll Coder is a continuous coding machine designed for integration with flow packers and continuous packing machines. It efficiently prints MFG/EXP dates, lot numbers, and serial numbers with a maximum print speed of 300 prints per minute and surface speed up to 35 meters per minute.

This industrial coder has been widely adopted in food, daily chemicals, tissue, and pharmaceutical industries. With cumulative sales exceeding 100,000 units since 2001, it serves over 4,000 end users including major brands like Mondelez, Pepsico, and Yili Dairy.

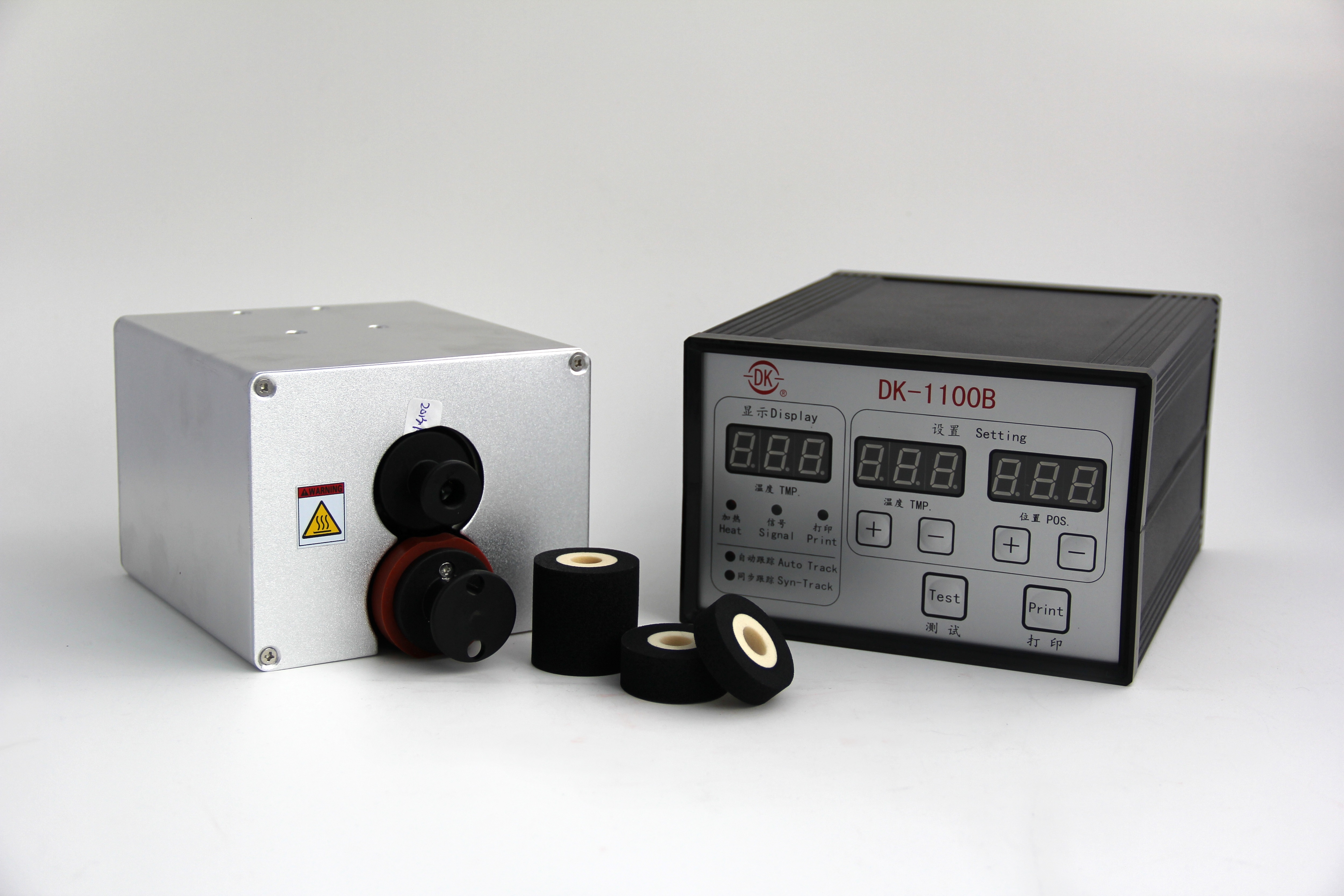

Main Components

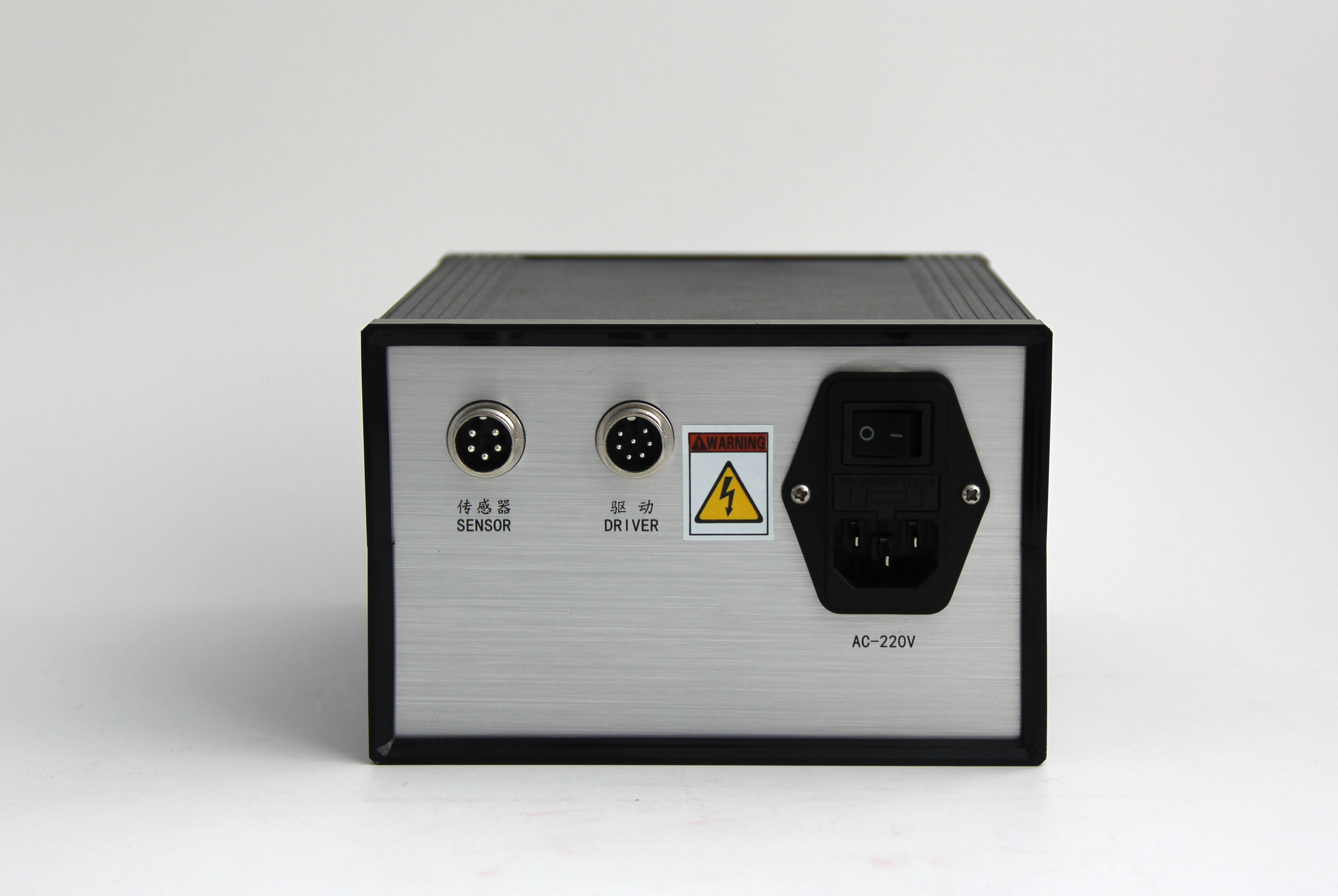

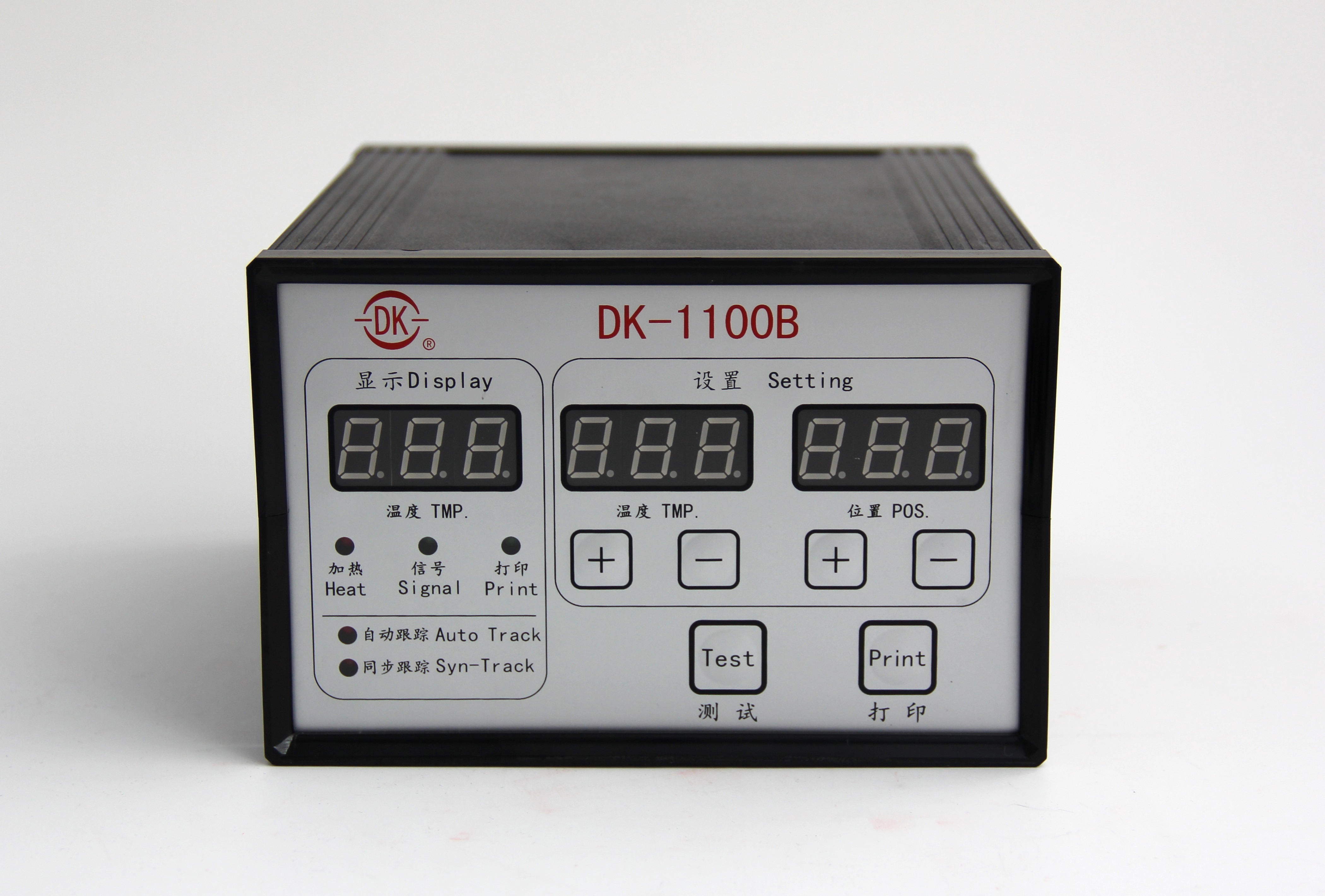

Controller

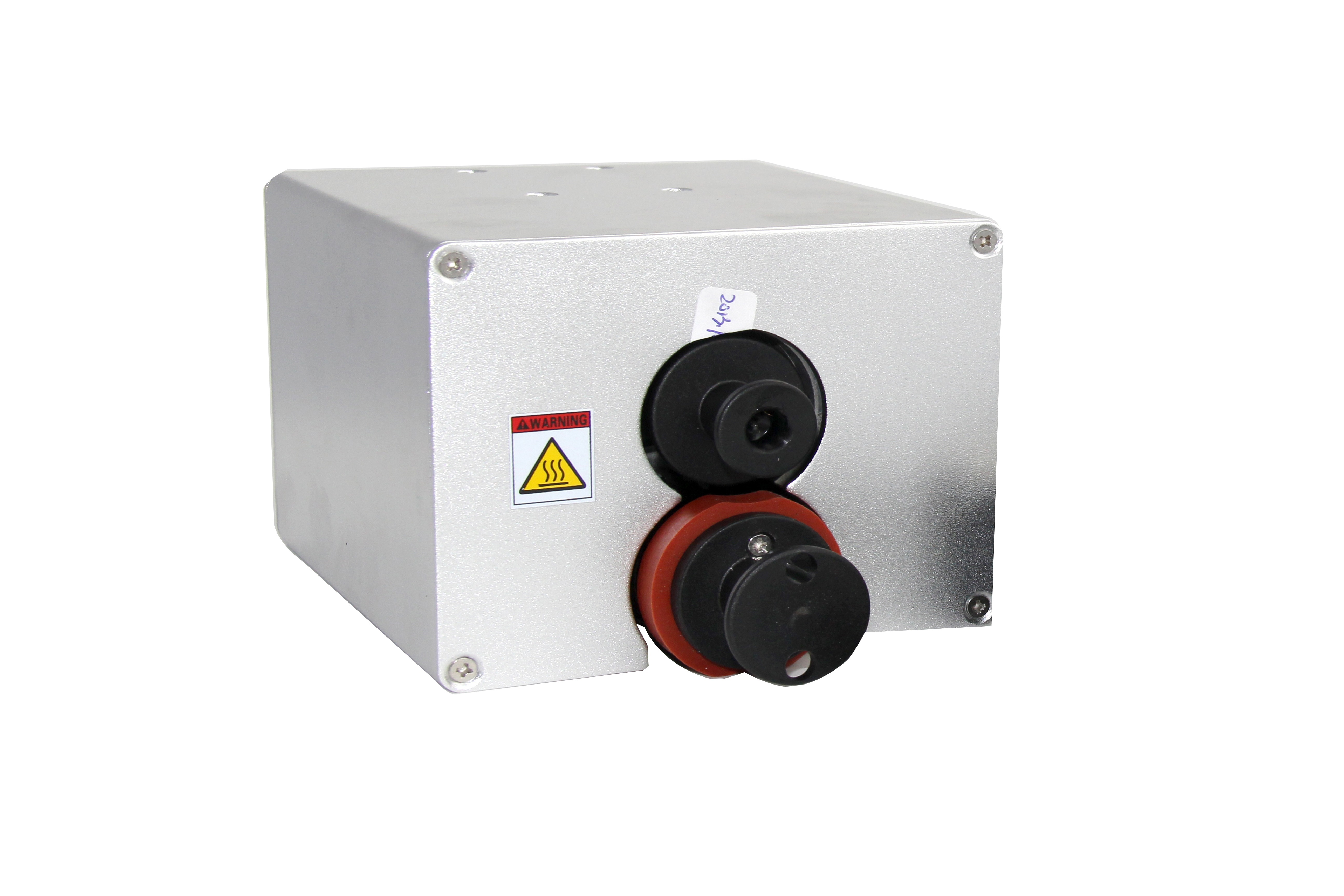

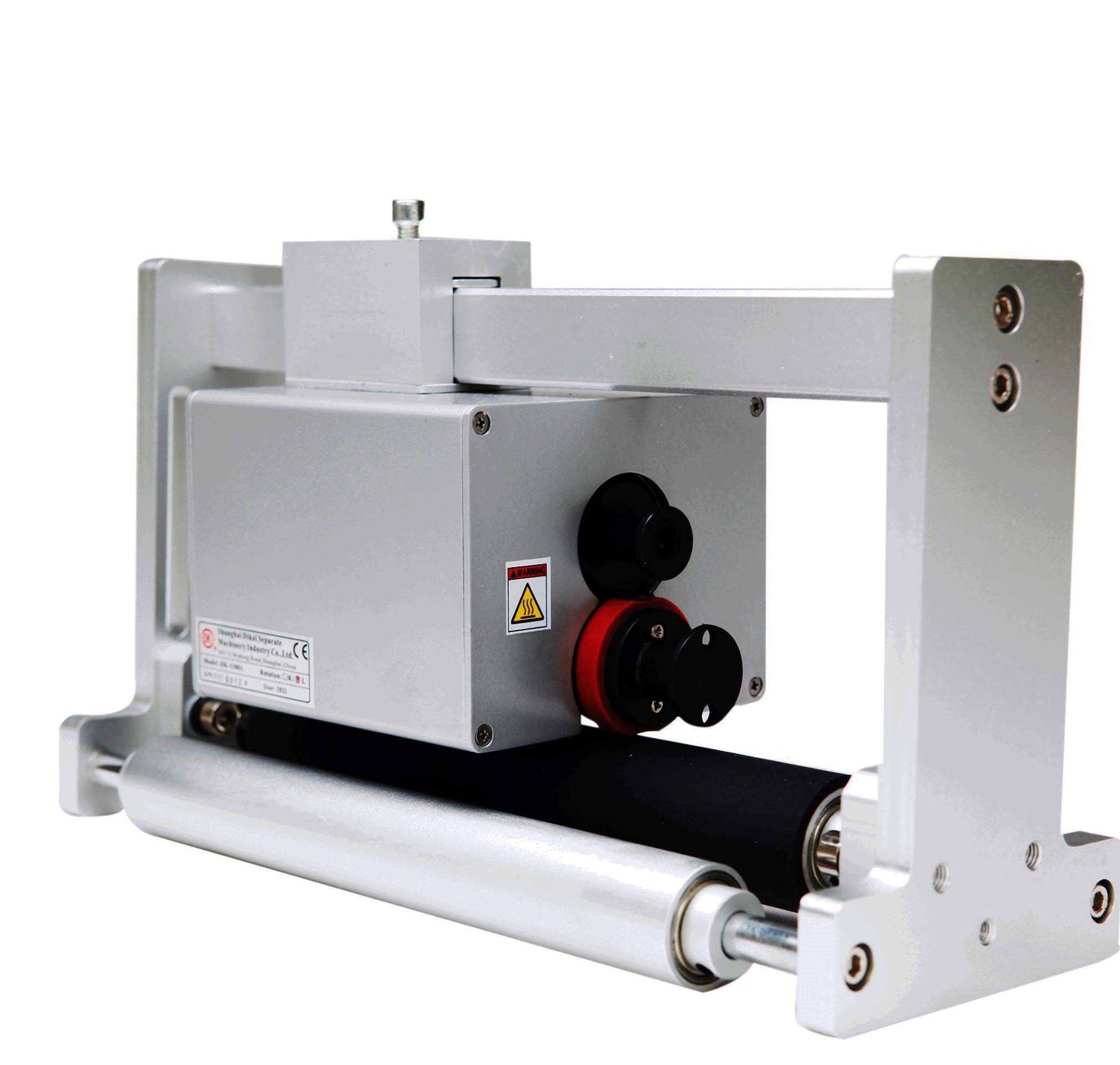

Printer Unit

Technical Specifications

Feature	Specification
Product Name	DK-1100B Ink Roll Coder
Print Area	≤13 lines, max 20 characters/line
Type Sizes	Standard 3.0T, 2.5*7T, 3.5R (custom sizes available)
Pouch Length	≥38mm (4-up printer) ≥75mm (2-up printer)
Print Frequency	≤300 prints/minute
Ink Roll Required	3632mm/3635mm/36*40mm
Electricity	AC220+10V, 50/60Hz
Power	130W, 2A fuse
Print Contents	MFG/EXP date, lot number, serial number, etc.

Note: Prices shown are not final. Please consult for customized solutions.

Applications

Max Print Speed: 300 PPM
Surface Speed: 35 meters/minute
Print Information: Date, lot number, shifts
Print Lines: Maximum 13 lines
Industry Applications: Food, daily chemicals

Print Results

Packaging & Shipping

Standard export cartons with soft internal protection
Suitable for international sea, air, and courier shipping
Package Size: 77×33×27cm (with 500mm bracket)
Gross Weight: 9.5kg
Lead Time: 1-2 weeks after order confirmation

After Sales Service

R&D support
Operation manual guidance
24-hour professional online support
Video support resources
Possible onsite support

Frequently Asked Questions

1. Why choose DIKAI?

With 25 years of experience in developing, manufacturing, and selling quality coding machines and consumables, we are committed to satisfying every customer's unique coding and marking requirements.

2. What's the regular lead time?

Standard lead time is 1-2 weeks after order confirmation. Stocked items can be shipped within 2 working days.

3. What's the warranty period?

Standard warranty is 12 months from leaving DIKAI warehouse.

4. How about after-sales service?

We work with local distributors for support in their regions, supplemented by online technical services and continuously updated video support resources.
