Automatic Hot Ink Roll Coder with AC220+10V Power and 50/60Hz Frequency for Expiry Date and Batch Number Printing

Automatic Hot Ink Roll Coder with AC220+10V Power and 50/60Hz Frequency for Expiry Date and Batch Number Printing

AC220+10V Hot Ink Roll Coder

50/60Hz Expiry Date Printing Machine

2A fuse Batch Number Printing Machine

Place of Origin:

Shanghai, China

Brand Name:

DIKAI

Certification:

CE; ISO 9001

Contact Us
Request A Quote
Automatic Hot Ink Roll Coder with AC220+10V Power and 50/60Hz Frequency for Expiry Date and Batch Number Printing Automatic Hot Ink Roll Coder with AC220+10V Power and 50/60Hz Frequency for Expiry Date and Batch Number Printing Automatic Hot Ink Roll Coder with AC220+10V Power and 50/60Hz Frequency for Expiry Date and Batch Number Printing Automatic Hot Ink Roll Coder with AC220+10V Power and 50/60Hz Frequency for Expiry Date and Batch Number Printing Automatic Hot Ink Roll Coder with AC220+10V Power and 50/60Hz Frequency for Expiry Date and Batch Number Printing Automatic Hot Ink Roll Coder with AC220+10V Power and 50/60Hz Frequency for Expiry Date and Batch Number Printing
Product Details
Print Area:
T-Type: ≤13 Lines, Max 20 Characters Per Line; R-Type: ≤10 Lines, Max 13 Characters Per Line
Type Sizes:
T-Type: 2.0T, 2.5T, 3.0T, 2.5*7T; R-Type: 3.5R, 4.5R, 5.5R
Pouch Length:
≥38mm (4-up Printer), ≥75mm (2-up Printer)
Print Frequency:
≤300 Times/min
Ink Roll Size:
36*32mm, 36*35mm, 36*40mm
Voltage:
AC220+10V, 50/60Hz
Power:
130W, 2A Fuse
Print Speed:
Max 300PPM, 35 Meters/minute
Print Contents:
MFG/EXP Date, Lot Number, Serial Number, Etc.
Dimensions:
Printer Unit: 120*100*170mm
Weight:
Print Unit: 2KG, Controller Box: 1KG
Core Components:
PC Board
Automatic Grade:
Automatic
Driven Type:
Electric
Packaging Material:
Paper
Highlight:

AC220+10V Hot Ink Roll Coder

,

50/60Hz Expiry Date Printing Machine

,

2A fuse Batch Number Printing Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
US$450-600
Delivery Time
5-8 working days
RELATED PRODUCTS
Good price Automatic 210V Ink Roll Coding Machine 36mm 2A fuse MFG Date Printing Machine online

Automatic 210V Ink Roll Coding Machine 36mm 2A fuse MFG Date Printing Machine

Get Best Price
Good price 130W Hot Ink Roll Coder 36x35mm 300 PPM Expiry Date Code Printer online

130W Hot Ink Roll Coder 36x35mm 300 PPM Expiry Date Code Printer

Get Best Price
Good price Hot Ink Roll 2.0T 2.5T Automatic Batch Printing Machine / MRP Batch Coding Machine online

Hot Ink Roll 2.0T 2.5T Automatic Batch Printing Machine / MRP Batch Coding Machine

Get Best Price
Good price Industrial 2.5T 50Hz Hot Ink Roll Coder AC 220V Batch Coding Printing Machine online

Industrial 2.5T 50Hz Hot Ink Roll Coder AC 220V Batch Coding Printing Machine

Get Best Price
CONTACT US
info@dikaicoding.net
86-21-51086700
Contact Now
Product Description

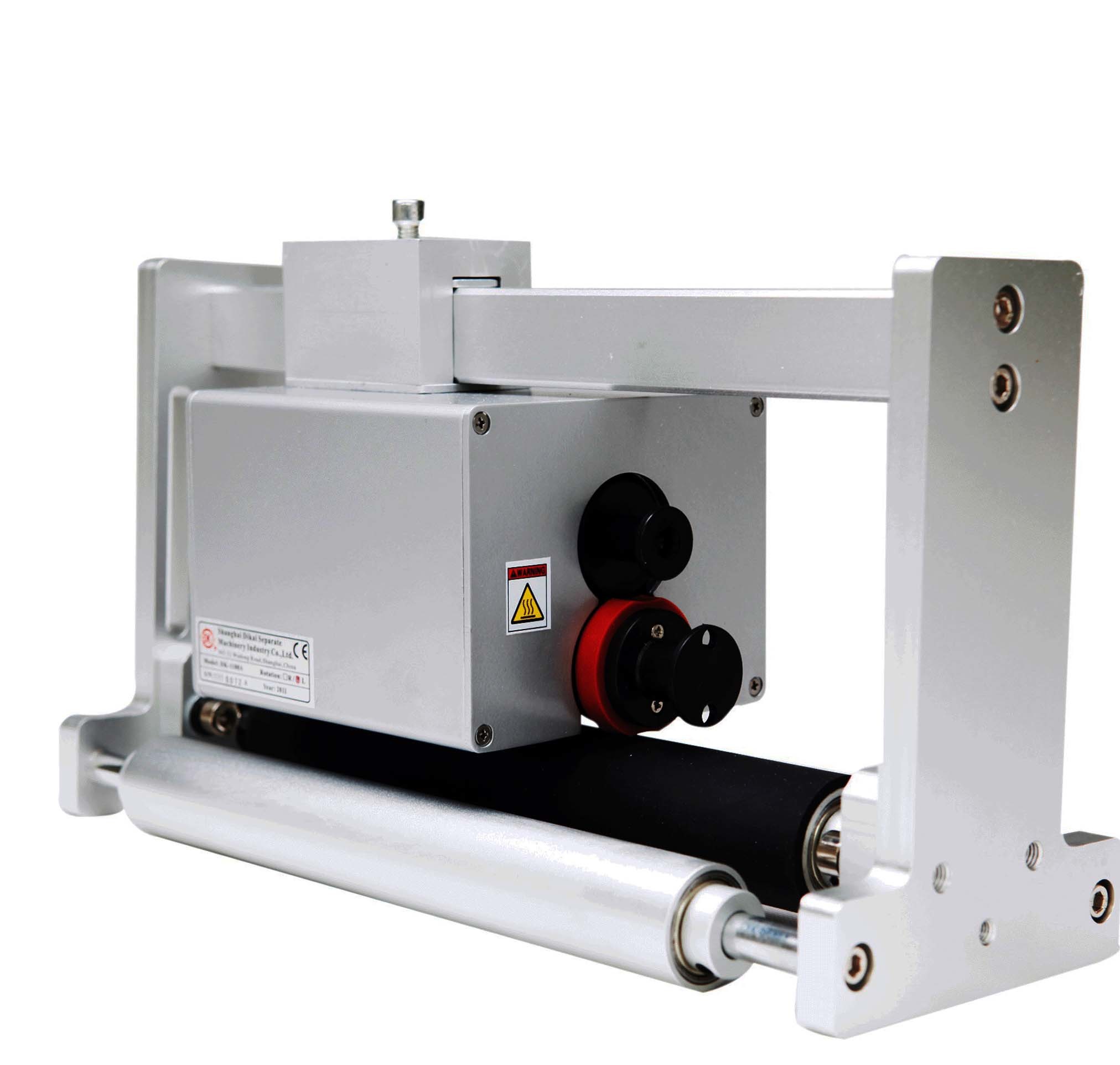

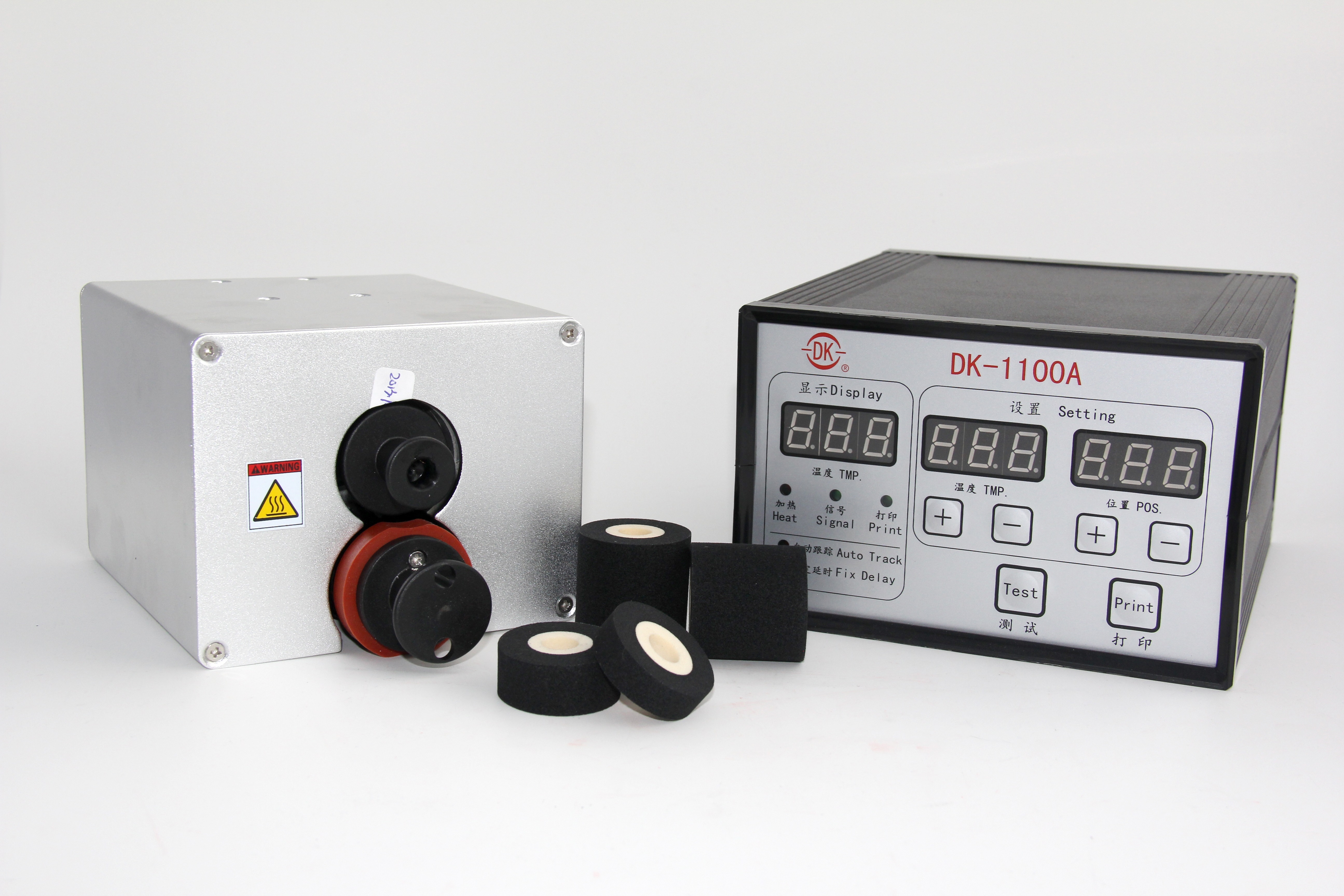

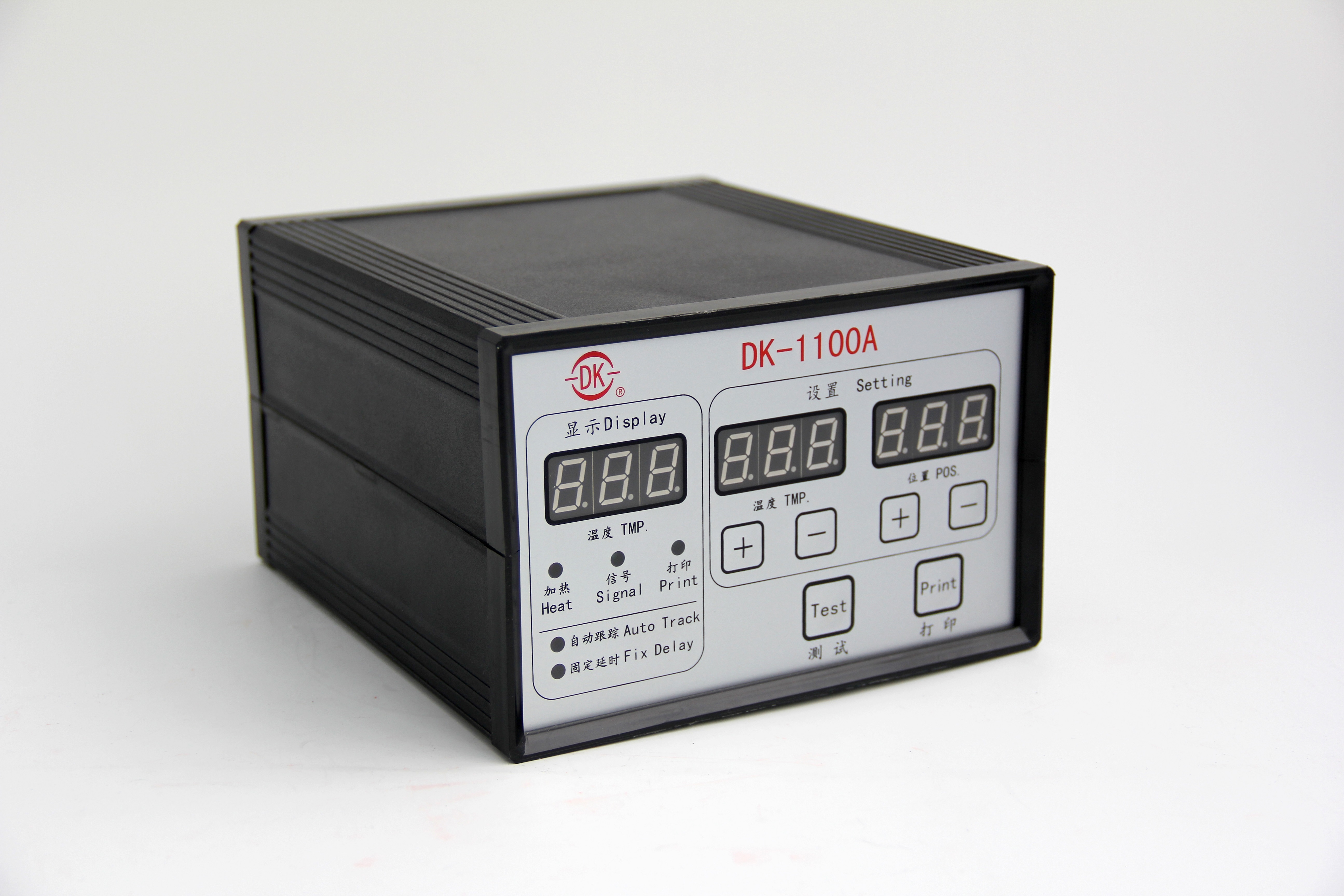

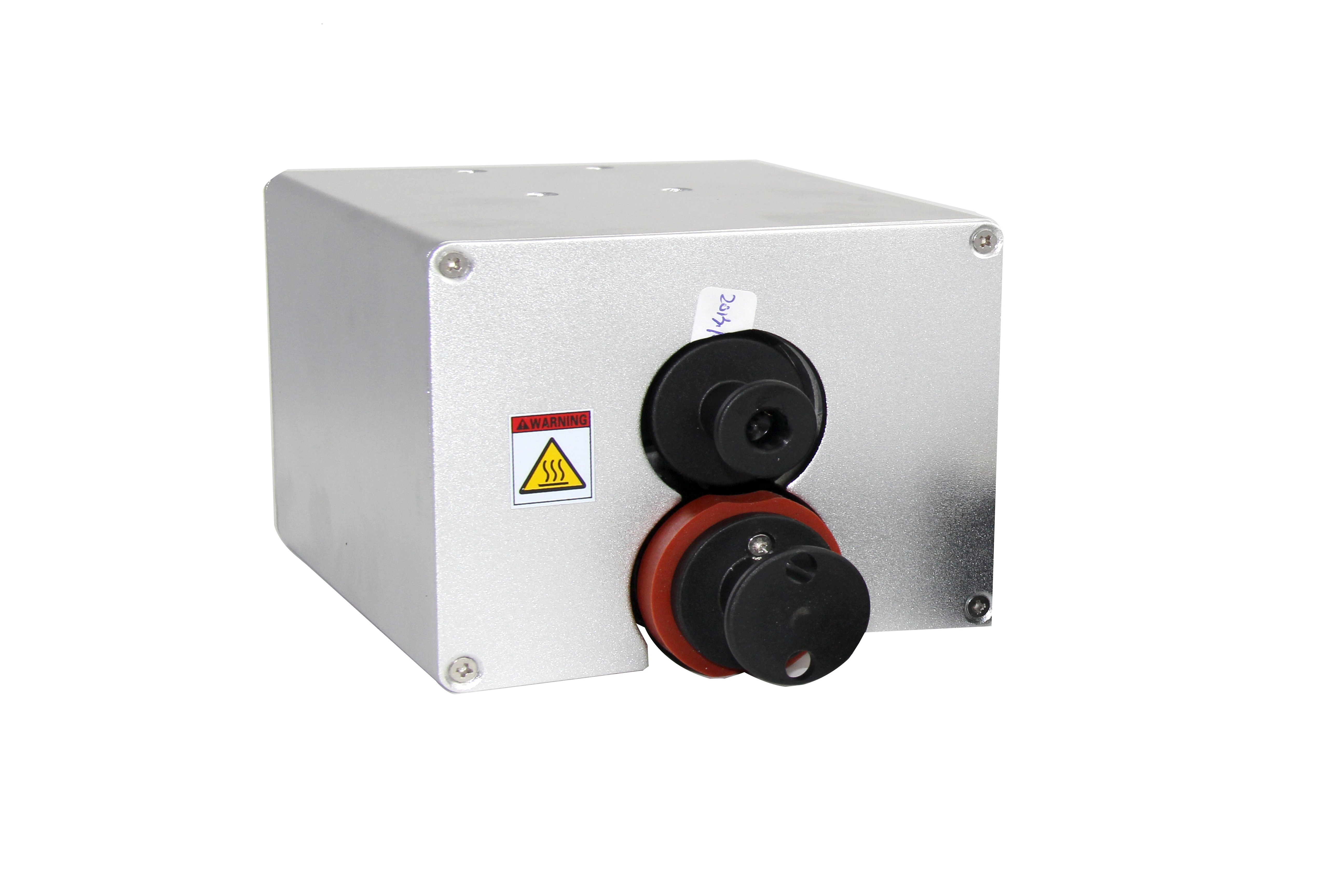

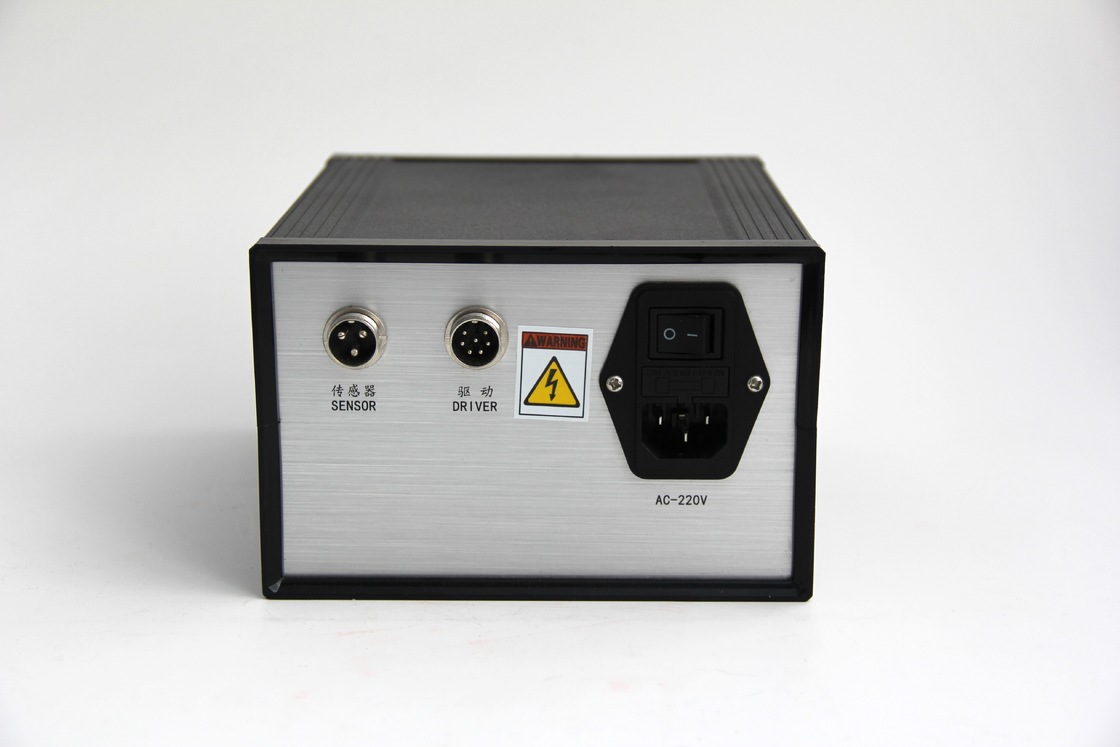

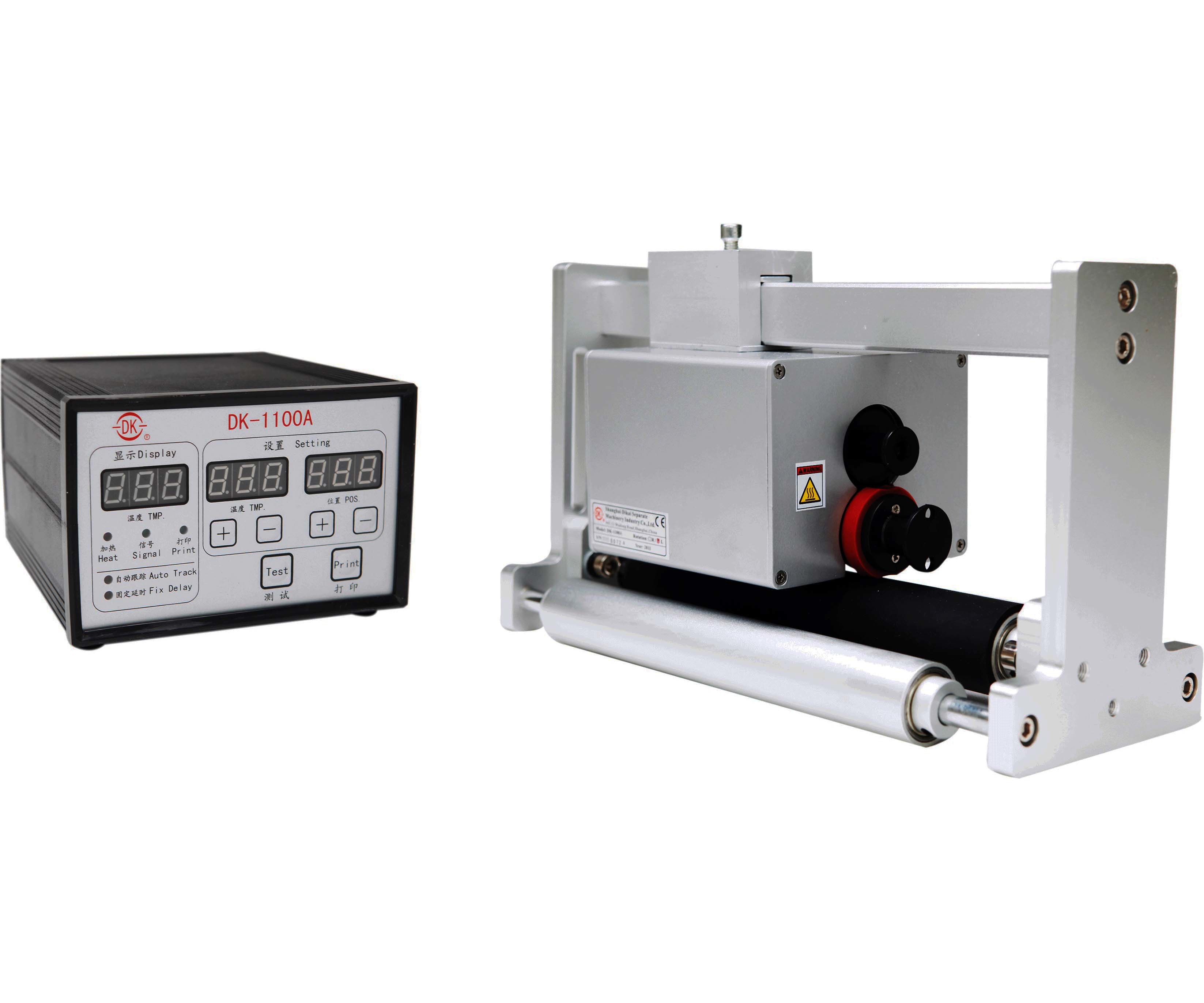

DK-1100A Ink Roll Coder
Electronic continuous motion coder designed for integration with packing machines, capable of printing at speeds up to 300 PPM. Features a print area of up to 13 lines for MFG/EXP dates, lot numbers, and other essential information on flexible packaging films.
Key Features
  • Fast printing speed up to 300 PPM
  • Stable, high-quality printing performance
  • Low maintenance design reduces operating costs
  • Compact size for easy integration
  • Simple installation and operation
Automatic Hot Ink Roll Coder with AC220+10V Power and 50/60Hz Frequency for Expiry Date and Batch Number Printing 0 Automatic Hot Ink Roll Coder with AC220+10V Power and 50/60Hz Frequency for Expiry Date and Batch Number Printing 1
Technical Specifications
Product Name DK-1100A Ink Roll Coder
Print Area T-Type: ≤13 lines (max 20 characters per line)
R-Type: ≤10 lines (max 13 characters per line)
Type Sizes T-Type: 2.0T, 2.5T, 3.0T, 2.5*7T
R-Type: 3.5R, 4.5R, 5.5R
Print Frequency ≤300 times/min
Print Speed Max 300PPM, 35 meters/minute
Power Requirements AC220+10V, 50/60Hz, 130W
Note: Prices shown are not final. Please consult us for customized solutions.
Packaging & Shipping
Carton packaging suitable for sea, air, or courier shipping.
Automatic Hot Ink Roll Coder with AC220+10V Power and 50/60Hz Frequency for Expiry Date and Batch Number Printing 2
After-Sales Support
  • R&D technical support
  • Operation manual guidance
  • 24-hour professional online support
  • Video support resources
  • Possible on-site support
Automatic Hot Ink Roll Coder with AC220+10V Power and 50/60Hz Frequency for Expiry Date and Batch Number Printing 3
Frequently Asked Questions
Why choose Dikai?
With 25 years of experience in coding machine development and manufacturing, we are committed to meeting every customer's unique marking requirements.
What's the lead time?
Standard lead time is 1-2 weeks after order confirmation. Stocked items ship within 2 working days.
What's the warranty?
12 months warranty from date of shipment from our warehouse.
After-sales service?
Local distributor support where available, supplemented by online technical services and video support resources.
