Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing

Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing

20 Characters per Line Hot Ink Roll Coder

2A Fuse Date Code Printer

1 Year Warranty Expiry Date Printer

Place of Origin:

Shanghai, China

Brand Name:

DIKAI

Certification:

CE; ISO 9001

Contact Us
Request A Quote
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing
Product Details
Voltage:
AC220+10V,50/60Hz
Power:
130W, 2A Fuse
Print Speed:
Max 300PPM, 35 Meters/ Minute
Print Area:
Max 13lines, 20 Characters/ Line
Type Sizes:
3mm, 3.5mm Or As Requested
Pouch Length:
≥38mm(4-up Printer) ≥75mm(2-up Printer)
Ink Roll:
36*32/ 35/ 40mm
Print Contents:
MFG/ EXP Date, Lot Number, Serial Number, Etc
Printer Dimensions:
120*100*170mm
Printer Weight:
2KG
Controller Weight:
1KG
Print Frequency:
≤300 Prints/ Min
Surface Speed:
35 Meters/ Minute
Print Lines:
Max 13 Lines
Core Components:
PC Board
Highlight:

20 Characters per Line Hot Ink Roll Coder

,

2A Fuse Date Code Printer

,

1 Year Warranty Expiry Date Printer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$400-500
Delivery Time
5-8 working days
RELATED PRODUCTS
Good price Automatic 210V Ink Roll Coding Machine 36mm 2A fuse MFG Date Printing Machine online

Automatic 210V Ink Roll Coding Machine 36mm 2A fuse MFG Date Printing Machine

Get Best Price
Good price 130W Hot Ink Roll Coder 36x35mm 300 PPM Expiry Date Code Printer online

130W Hot Ink Roll Coder 36x35mm 300 PPM Expiry Date Code Printer

Get Best Price
Good price Hot Ink Roll 2.0T 2.5T Automatic Batch Printing Machine / MRP Batch Coding Machine online

Hot Ink Roll 2.0T 2.5T Automatic Batch Printing Machine / MRP Batch Coding Machine

Get Best Price
Good price Industrial 2.5T 50Hz Hot Ink Roll Coder AC 220V Batch Coding Printing Machine online

Industrial 2.5T 50Hz Hot Ink Roll Coder AC 220V Batch Coding Printing Machine

Get Best Price
CONTACT US
info@dikaicoding.net
86-21-51086700
Contact Now
Product Description
DIKAI DK-1100B Hot Ink Roll Coder
Product Description
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 0 Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 1
The DK-1100B Ink Roll Coder is a continuous coding machine designed for integration with flow packers and continuous packing machines. It prints MFG/EXP date, lot number, and serial number with a maximum speed of 300 prints/minute and surface speed up to 35 meters/minute. Widely used in food, daily chemicals, tissue, and pharmaceutical industries.
Since 2001, cumulative sales have reached 100,000 sets, serving over 4,000+ end users including Mondelez, Pepsico, and Yili Dairy. We cooperate with 200+ packing machine manufacturers in China and export to 100+ countries through our global distribution network.

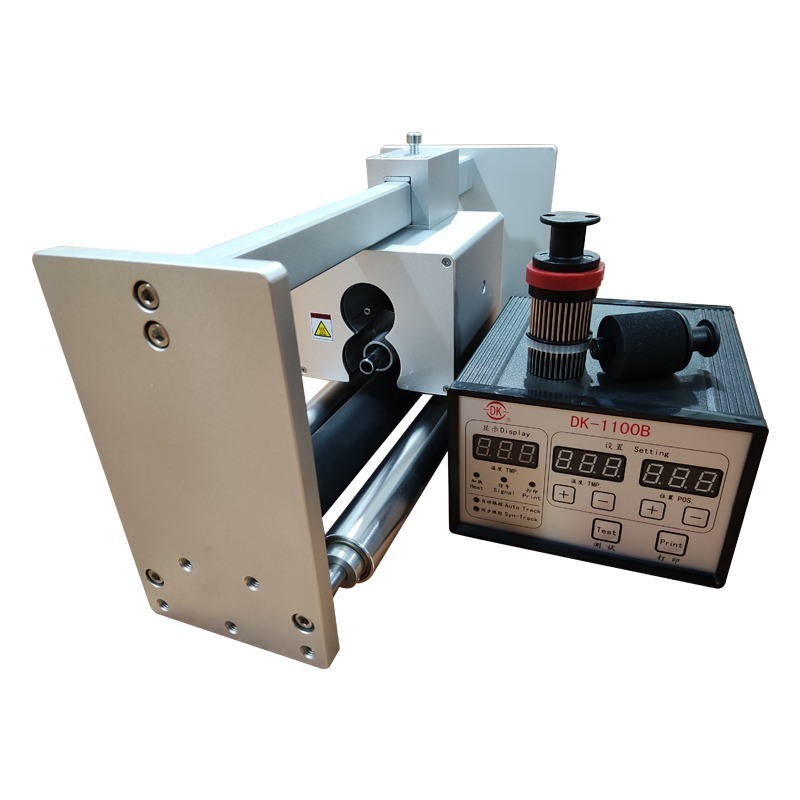

Main Components
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 2 Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 3

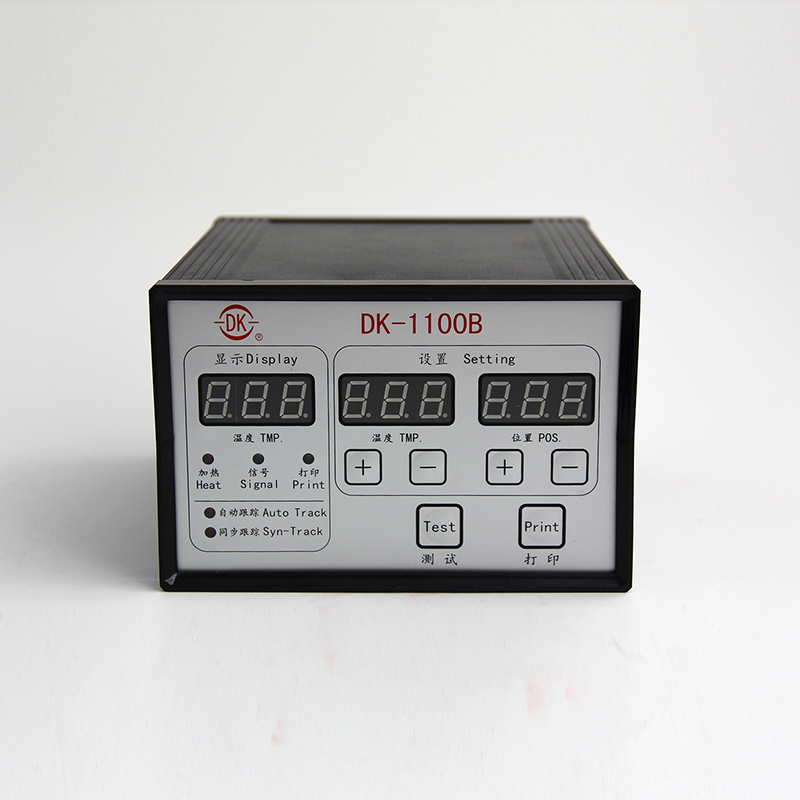

Controller
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 4 Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 5

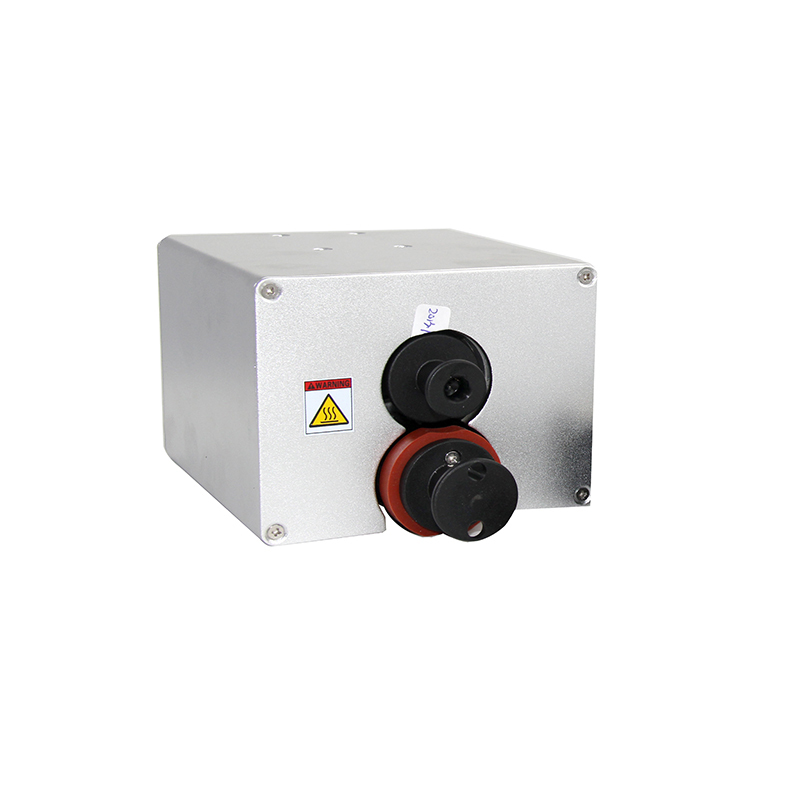

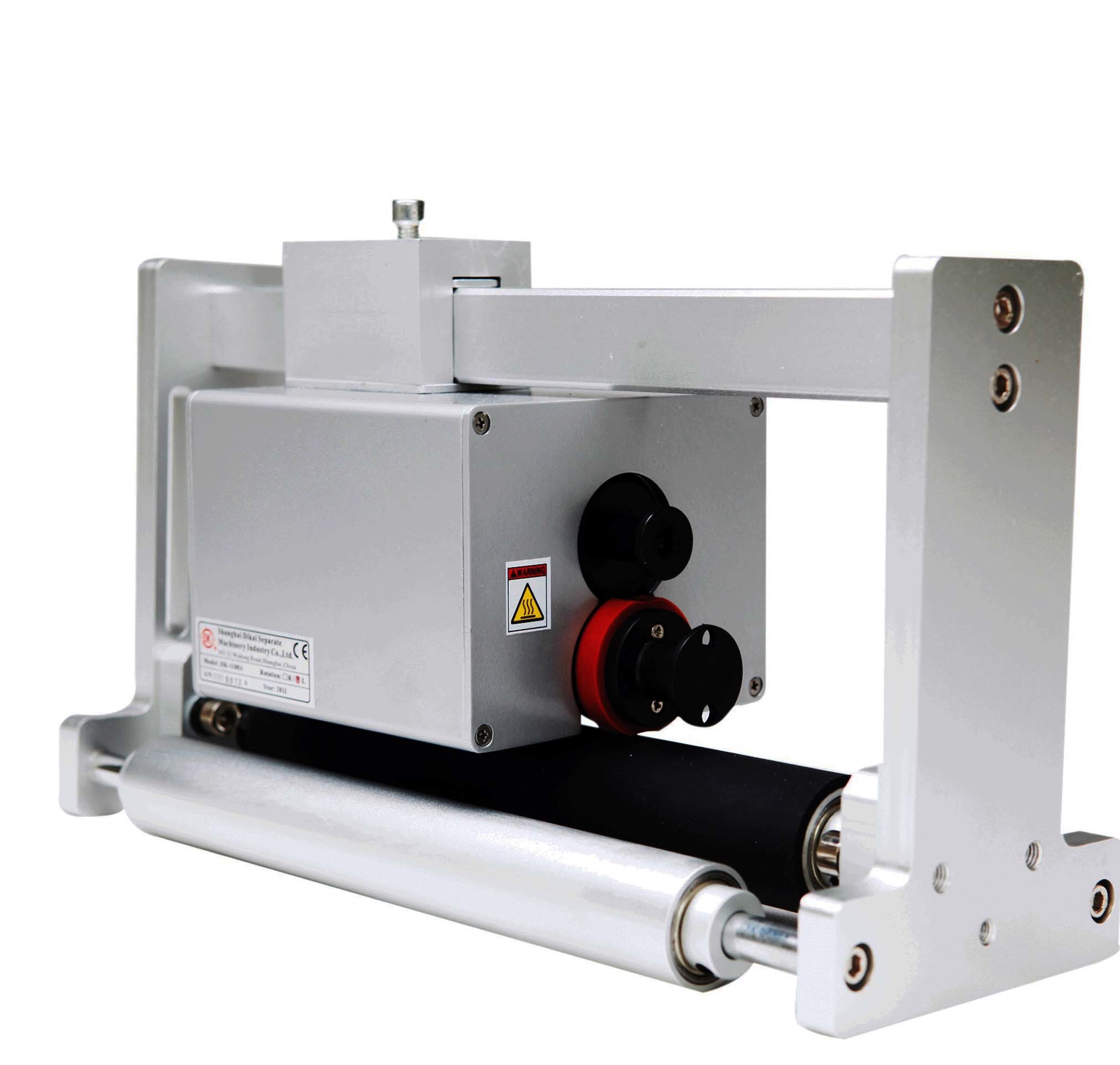

Printer Unit
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 6 Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 7
Bracket
Specification
Product name DK-1100B Ink Roll Coder
Print Area ≤13 lines, max 20 characters/line
Type Sizes Standard 3.0T, 2.5*7T, 3.5R (or customized size)
Pouch Length ≥38mm (4-up printer) ≥75mm (2-up printer)
Print Frequency ≤300 prints/min
Ink Roll Required 36*32mm/36*35mm/36*40mm
Electricity AC220+10V, 50/60Hz
Power 130W, 2A fuse
Print Speed 35 meters/minute
Print Contents MFG/EXP date, lot number, serial number, etc.
Note: The prices shown on ALIBABA are not final prices. Please consult us for proper solutions.

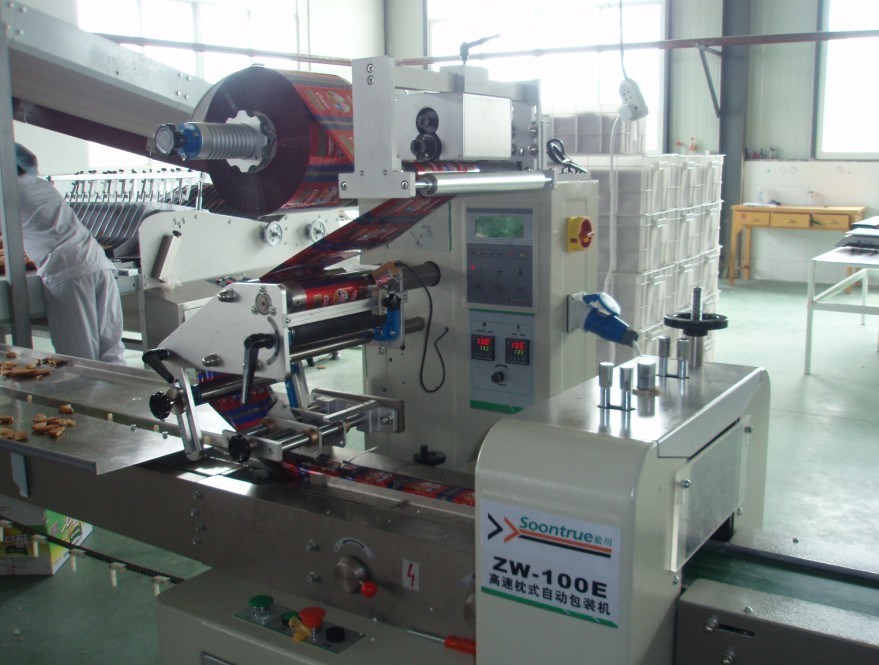

Application
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 8 Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 9
  • Max Print Speed: 300 PPM
  • Surface Speed: 35 meters/minute
  • Print Info: date, lot number, shifts
  • Print Lines: max 13 lines
  • Industry: Food, daily chemicals
Print Results
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 10 Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 11 Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 12
Packaging & Shipping
  • Standard Export Cartons with soft protection inside
  • Suitable for international sea, air, fast courier shipping
  • Package Size: 77*33*27cm (with 500mm bracket)
  • Gross Weight: 9.5kg
  • Regular Lead Time: 1-2 weeks after order confirmation & payment
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 13 Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 14
After Sales Service
Automatic Hot Ink Roll Coder with 20 Characters per Line and 1 Year Warranty for Expiry Date Printing 15
Technical Supports
  • R&D supports
  • Operation Manual Guidance
  • Within 24-hour professional online supports
  • Video supports
  • Possible onsite supports
FAQ
1. Why choose Dikai?
Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We commit to satisfying every customer's unique needs in coding and marking.
2. What's the regular lead time for Dikai Products?
Lead time is 1-2 weeks after order confirmation. Stocked goods can be delivered in 2 working days.
3. What's the warranty of Dikai goods?
Standard warranty is 12 months after leaving Dikai Warehouse.
4. How about your after-sales service?
For countries with distributors, we rely on them for after-sales services. Dikai also provides online technical support and continuously upgraded video resources.
