| Certification: | CE; ISO 9001 |
|---|---|
| Minimum Order Quantity: | 1 |
| Price: | 350 |
| After-sales Service: | Online Support | Warranty: | 1 Year |
|---|---|---|---|
| Type: | Continuous Jet Type Coding Machine | Usage: | Daily Industrial, Chemical Products, Drug, Food |
| Automatic Grade: | Automatic | Principle Of Classification: | Continue Ink Jet Printer |
| Application Of Classification: | Ink Jet Printer | Working Patterns: | On-Line |
| Supplies: | Ink | Packaging: | Box |
| Size: | 770*330*260 | Application: | Flow Packer, Continuous Packing Machines |
| Driven Type: | Electric | Voltage: | 140W,2A Fuse |
| Dimension(L*W*H): | Printer Unit: 94mm*100mm*166mm | Weight: | Print Unit:4kg,Controller Box:2kg, Print Unit:4kg |
| Key Selling Points: | Long Service Life | Type Sizes: | "T-Type:2.0t,2.5t,3.0t,2.5*7t R-Type:3.5r,4.5r,5.5 |
| Pouch Length: | >=38mm(4-up Printer) >=75mm(2-up Printer)" | Ink Roll Required: | 36*32mm,36*35mm,36*40mm |
| Eletrictiy: | AC220+10V,50/60Hz | Print Speed: | Max 900ppm, 60 Meters/ Minute |
| Print Contents: | MFG/ Exp Date, Lot Number, Serial Number, Etc | Power: | 140W,2A Fuse |
| Trademark: | DIKAI | Transport Package: | By Carton |
| Specification: | 500mm Mounting Barcket | Origin: | China |
| HS Code: | 84433990 | ||
| Highlight: | Hot Ink Roll Coder with online support,DK-1100A Ink Roll Coder 36x32mm,Continuous coding hot ink coder |
||

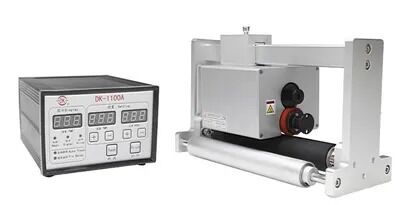

DK-1100A Ink Roll Coder
| Product name | DK-1100A Hot Ink Roll Coder |
| Print Area | T-Type(Axial):≤13lines,max20 characters per line R-Type(Radial):≤10lines,max13 characters per line |
| Type Sizes | T-Type:2.0T,2.5T,3.0T,2.5*7T R-Type:3.5R,4.5R,5.5R |
| Pouch Length | ≥38mm(4-up printer) ≥75mm(2-up printer) |
| Ink Roll Required | 36*32mm,36*35mm,36*40mm |
| Eletrictiy | AC220+10V,50/60Hz |
| Power | 130W,2A fuse |
| Print Frequency | ≤300times/min |
| Print Speed | 35 meters/ minute |
| Print Contents | MFG/ EXP date, lot number, serial number, etc |
| Weight | Print Head 4kg; Control Box 2kg |
| Dimensions | Print Head 94mm*100mm*166mm (L*W*H); Control Box 180mm*190mm*96mm (L*W*H) |
