Shanghai Dikai Coding Industry Co., Ltd.
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | DIKAI |
| Certification: | CE |
| Model Number: | D05S |
| Minimum Order Quantity: | 1 set |
| Price: | US $ 3500-3200 / set |
| Packaging Details: | Printer & Control Box in one carton, Mounting Bracket in another carton. |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 600 sets per month |
| Name: | D05S Thermal Transfer Overprinter | Print Head: | 53mm Width, 300 Dpi (12dots/mm) |
|---|---|---|---|
| Max Print Area: | 53mm*150mm | Print Speed: | 2-36m/minute |
| Consumable: | Thermal Transfer Ribbon | After-sales Service Provided: | 24-hour Online Service |
| Print Contents: | QR Code, Bar Code, Image, Variable Information, Etc. | Optional: | Mounting Bracket, TTR Ribbon Encoder, Rubber Pad, Etc |
| Advantage: | Intermittent And Continuous Mode Combined | Warranty: | 1-Year |
| Application: | Information Coding | Interface: | USB; RS232 |
| High Light: | QR Code Thermal Transfer Overprinter,150W Thermal Transfer Overprinter,QR Code Pneumatic Printing Machine |
||
Automatic Pneumatic QR Code Date Coding Machine TTO Printer For Flow Packaging Machine

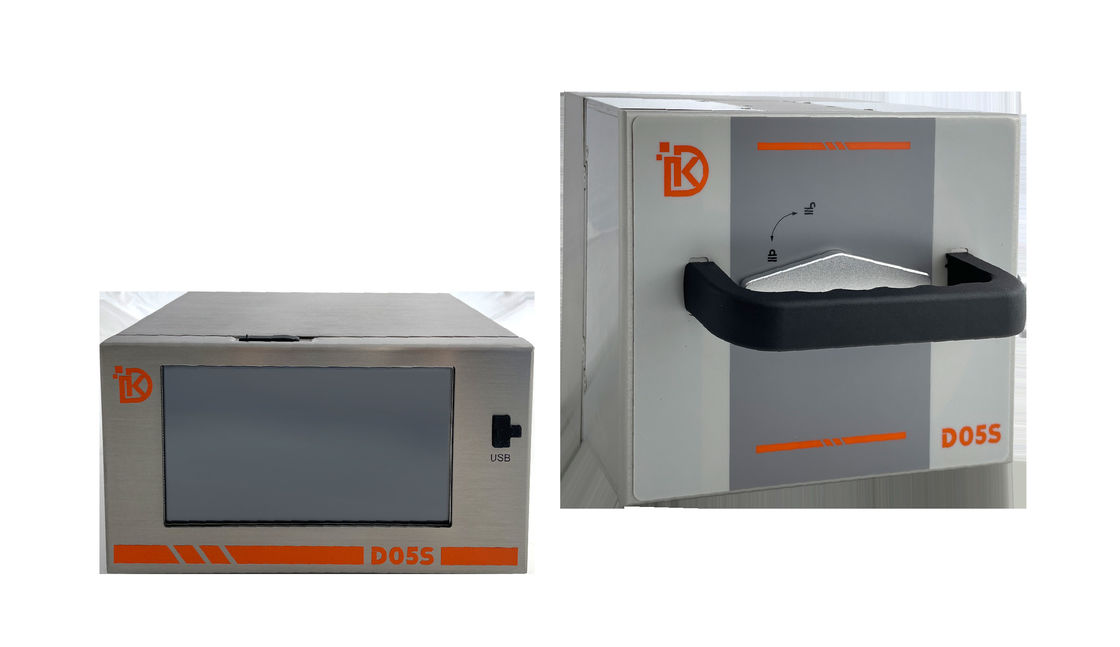

DIKAI D05S Qr Code Printing Machine Thermal Transfer Overprinter (TTO)
It is mainly used in any soft packaging industry, such as fast food, candy, bread, cold and fresh food (frozen dumplings), frozen food, fresh vegetables, wet tissue, solid powder (milk powder), etc.
There are two types of thermal transfer printers: continuous printer and intermittent printer. Continuous printer needs synchronizer, while intermittent printer needs silicone pad. The consumable of thermal transfer printer is thermal transfer ribbon. There are three types of ribbons, Wax-based wax, Resin, Wax/Resin Blend.
And price, adhesive force and melting point > mixed base of wax and resin > wax base.
Technical Details:
| Specification | |
|---|---|
| Print Head | Kyocera, 53mm; 300DPI |
| Print Area |
Intermittent: 53mm*70mm |
| Ribbon Size | 55mm*600m |
| Printing Frequency |
Intermittent: up tp 350PPM |
| Environmental Operation Temperature | 0-40℃ |
| Relative Humidity | 10%~95% (non-condensing) |
| Power | AC110~220V, 50/60Hz, 150W |
| Air Supply | 6bar/ 90PSI(MAX) dry uncontaminated |
| Weight | Print head: 8.5kg, Control box: 2.0kg |
| Dimension(L*W*H) |
Print Unit: 210mm*210mm*185mm |
What are the benefits of thermal transfer overprinter technology?
Improved Print Quality: TTO Printing technology virtually eliminates human error and downtime that occurs when operators incorrectly insert stamps, make spelling mistakes, and lose stamps.
Real -Time Variable Data: TTO Printers contains a real-time clock computer chip, it has the ability to print variable information including dates, lot codes and time.
Increased uptime: TTO Printers design ensures that it is fast and simple to change ribbons and the ribbon length can be very long (up to 1,200m). Software control of ribbon tension and movement (which are critical parameters in any ribbon-based coding technology) ensures the amount of unused ribbon is kept to a minimum.
Benefits
Thermal transfer overprinters use a high-resolution thermal printhead, which melts a wax and/or resin-based ink from a very thin thermal transfer ribbon coating onto the surface of your product.
There are differences in printing schemes between thermal transfer printer and ordinary printer. The thermal transfer printer aims at pattern transfer, so the following problems can be paid attention to in use.
1) Understand the structure and internal structure of the printer, and confirm the compatibility between the printer and the transfer paper.
2) Understand the handling methods of paper jam and other faults, especially the effective methods to restore the equipment to good condition after a fault occurs.
3) Understand the characteristics of the thermal transfer ink used by the printer, and its compatibility will determine the inherent quality of the transfer product such as color fastness.
4) Printer performance (printing capacity, printing speed, usable paper range, fixing temperature and performance, etc.).
Attention
