Place of Origin: | Shanghai, China |
---|---|
Brand Name: | DIKAI |
Certification: | CE |
Minimum Order Quantity: | 1 set |
Price: | US $ 7000-12000 per set |
Packaging Details: | Printer & Control Box in one carton, Mounting Bracket in another carton. |
Delivery Time: | 10-14 work days |
Payment Terms: | T/T |
Supply Ability: | 80 set per month |
Product Name: | Fiber Laser Machine | Scan Speed: | ≤8000mm/s |
---|---|---|---|
Marking Area: | Standard 110mm*110mm Optional | Line Speed: | 200m/min |
Operation System: | CE | Optic System Life Time: | 100,000 Hours |
Electrical Power Supply: | 300W | Communication: | SD Card/USB 2.0/Communication Interface |
Suitable Material: | Metal, Paper, Plastic, Film | Warranty: | 1 Year |
Highlight: | 150 M/Min Stainless Steel Fiber Laser Machine,800W Stainless Steel Fiber Laser Machine,63Hz Laser Marking Machine For Glass |

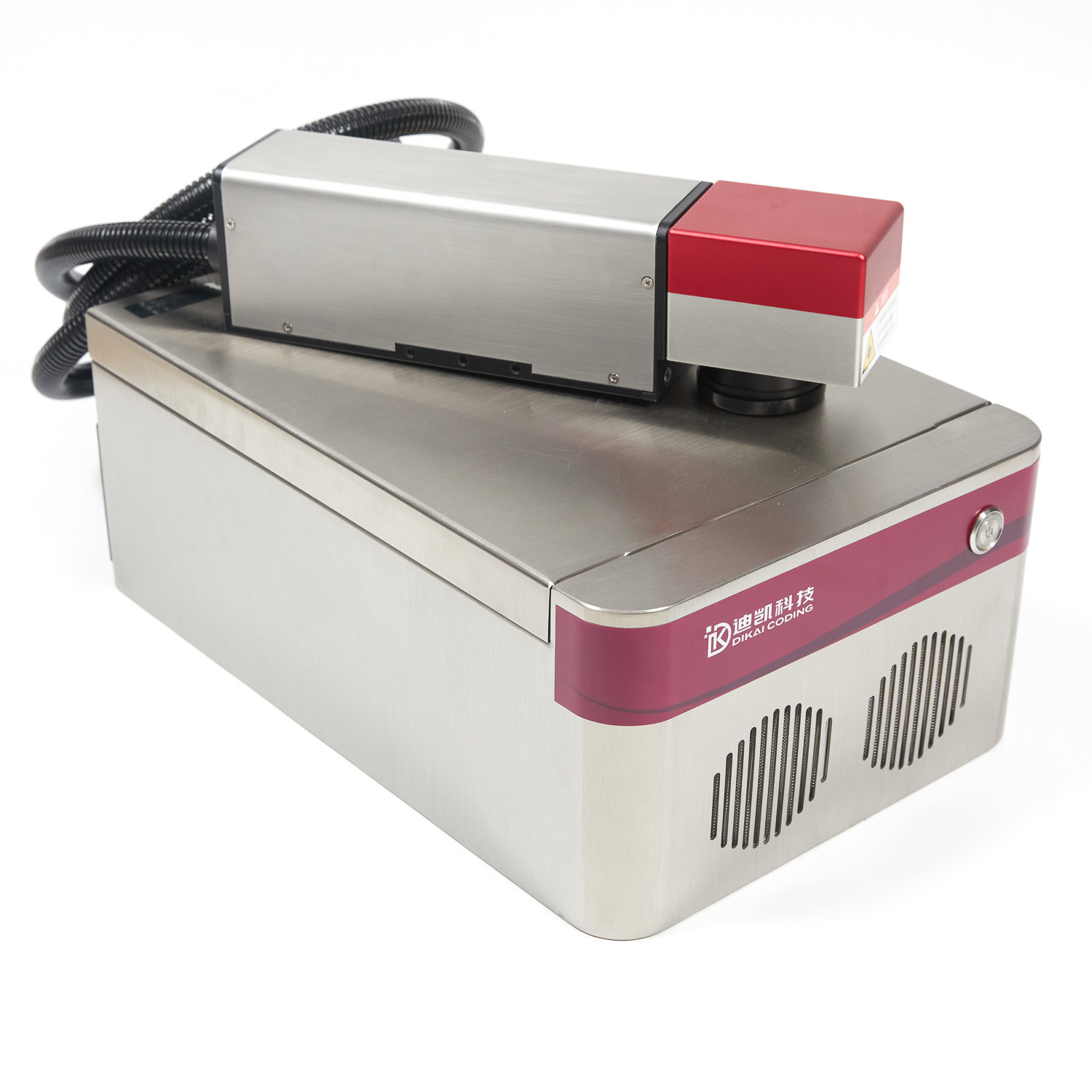

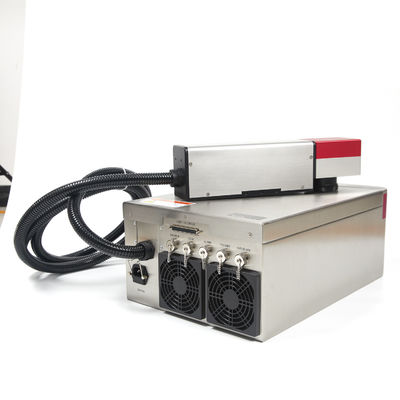

Batch Number Marking Fiber Laser Machine Logo Printing Machine 200M/Min For PP/PVC Tubes
Advantages of fiber laser marking machine performance
The fiber laser marking machine has high marking precision, does not need to touch the surface of the processed article. The the marking is durable and not easy to rub, the processing efficiency is high. And it has anti-counterfeiting characteristics. So its unique processing form provides more creativity for the current processing. These features are not possible with traditional silk screen printing and pad printing machines. Advantages of fiber laser marking machine performance.
However, the current silk screen printing and pad printing machines can display rich colors, which can achieve quickly by the adjustment of the ink. Below we will analyze the comprehensive performance of the laser marking machine from the speed, efficiency, use degree, operation difficulty, safety hazard, product demand . And other aspects is far superior to the traditional silk screen and pad printing machine.
High speed
Faster coding speed, up to 700 characters/s.
High quality
The new intelligent control algorithm provides high quality marking technology
High reliability
Enhanced anti-electromagnetic design ensures stable operation in harsh environment
Ease of integration
Compact independent design, can be better integrated into the existing production line
Compact size, can adapt to a variety of installation space
Model | DLF200 | DLF300 | |
Laser Type | Adjustable pulsed fiber laser,λ=1064nm,MTBF 100,000 hours | ||
Laser Power | 20W | 30W | |
Characteristic | |||
Scan Speed | ≤8000mm/s | ≤8000mm/s | |
Production Speed | 120m/min | 200m/min | |
Lines | No limited within markin area | ||
Character Height | 0.10mm - no limited within marking area | ||
Font | Single/Double font, Dot-matrix font | ||
Bar Code | Code39/Code25/EAN-13/Code128, etc | ||
QR Code | PDF147/QRCODE/DATAMATRIX | ||
Graphic | DXF/PLT format vector image input/output | ||
Variable Data | Serial Number, Text, Data, Time, Counter, Shift Code | ||
Marking Area | 110*110, 150*150, 175*175mm | ||
Focal Distance | 163mm,210mm,254mm | ||
UI | 10.1 inch Color Touch Screen, QWERTY or AZERTY Virtual Keyboard, Quick Icon Wizard Operations, | ||
Materials | Stainless steel, Anodized alumina construction | ||
Input/Output | |||
Sensor | NPN / PNP /24V﹣Sensor | ||
Speed Detection | Encoder or synchronization signal | ||
Signal Input | Two-way input, support custom | ||
Signal Output | Three-way output, support custom | ||
Communication | SD card/USB 2.0/Communication interface | ||
Facilities Condition | |||
Power Supply | 100-220V AC, 50-60Hz, 300W | ||
Cooling System | Air cooling | ||
Operating Environment | 0-40℃,10%-90%RH,no-condensing | ||
IP Rating | IP54 | ||
Options | Network and remote control software(TCP/IP), USD backup storage kit, support kit, fume extractor |
* The quantity of characters printed each second and production line speed depends on the surface material and marking content.
Maintenance
1. When the machine is not working, the marking machine and computer should be powered off.
2. When the machine is not working, cover the field lens to prevent dust from polluting the optical lens.
3. When the machine works, the circuit is in a high-voltage state. Non-professionals should not repair it when starting up, so as to avoid electric shock accidents.
4. In case of any failure of this machine, immediately cut off the power supply.
5. If the equipment is used for a long time, the dust in the air will be adsorbed on the lower end surface of the focusing mirror, and the light one will reduce the power of the laser and affect the marking effect. Heavy cause optical lenses to absorb heat and overheat so as to burst. When the marking effect is not good, carefully check whether the focusing mirror surface is contaminated.
6. If the surface of the focusing mirror is polluted, remove the focusing mirror and clean its lower end surface.
7. Special care should be taken when removing the focusing mirror, and care should be taken not to damage or fall; At the same time, do not touch the mirror surface of the focusing mirror with hands or other objects.
8. The cleaning method is to mix absolute ethyl alcohol (analytically pure) and ether (analytically pure) according to the ratio of 3:1, invade the mixed solution with a long fiber cotton swab or lens paper, and gently scrub the lower end surface of the focusing mirror, and replace the cotton swab or lens paper once every time one side is rubbed.
9. During the operation of the marking machine, the marking machine must not be moved to avoid damage to the machine.
10. Do not cover piles or put other articles on the marking machine, so as not to affect the heat dissipation effect of the machine.
Dikai's laser solutions offer flexible positioning using the beverage beam delivery for the smallest footprint on both conveyor and bottle table applications. Exceptional wavelength capabilities, flexible i-Tech scanhead, and unique mirror beam control underpins performance. Modular design enable simple integration into the challenging PET production lines.
