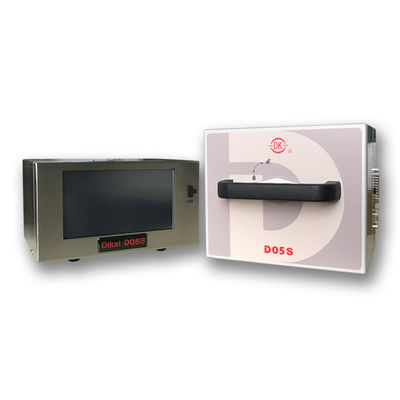

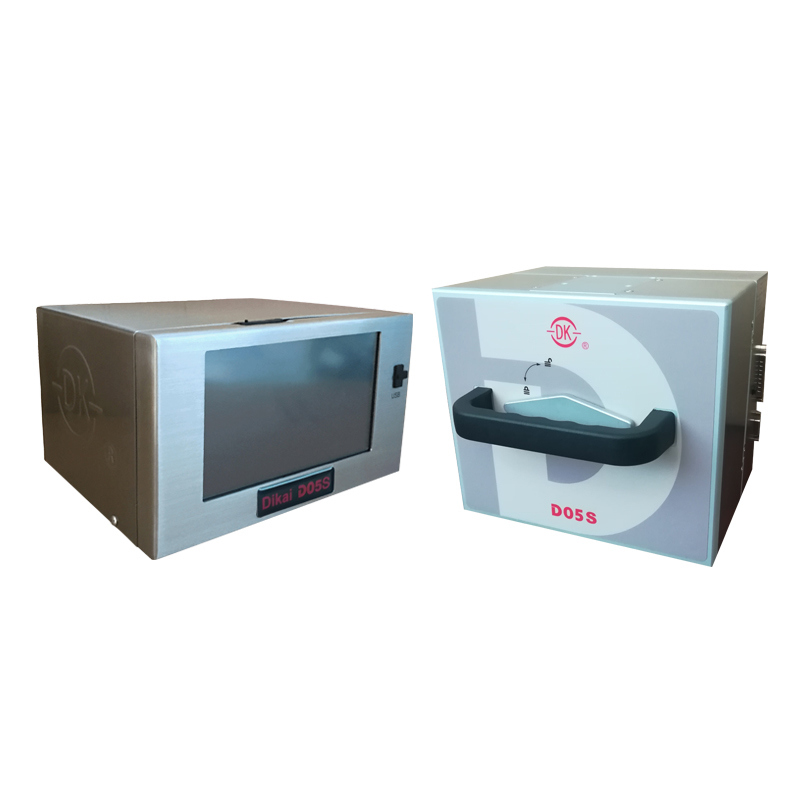

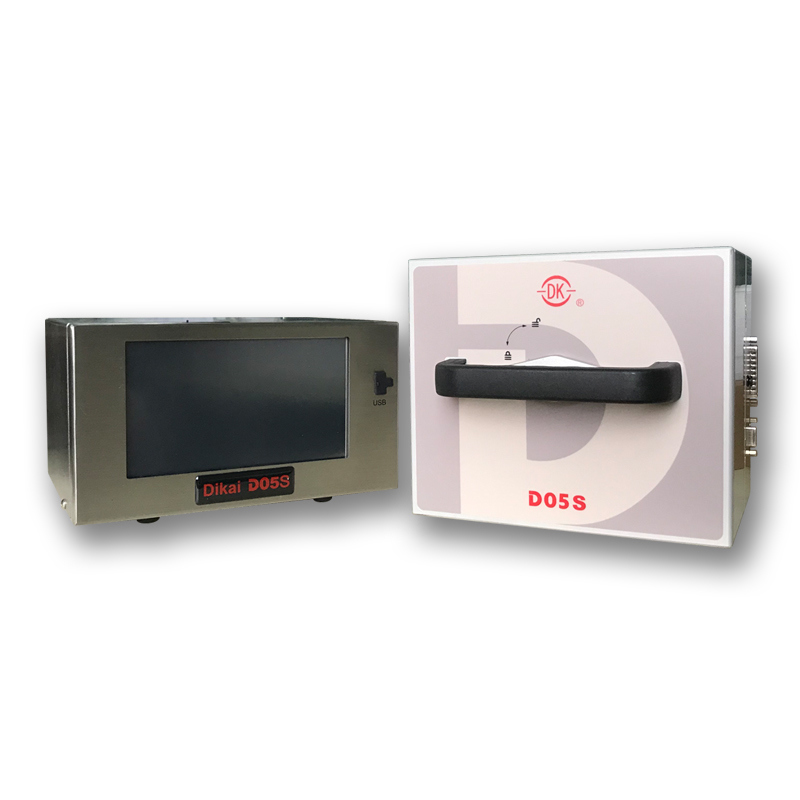

DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine

DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine

AC100-240V Power Supply Thermal Transfer Overprinter

6bar Air Supply Smart Coding Machine

53x70mm Print Area TTO Printer

Place of Origin:

China

Contact Us
Request A Quote
DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine
Product Details
Voltage:
AC100-240V 50/60Hz
Printhead Width:
53mm
Printhead Resolution:
300DPI
Print Area Intermittent:
53*70mm
Print Area Continuous:
53*150mm
Print Frequency:
≤300times/min
Ribbon Length:
600m
Ribbon Width:
33mm~55mm
Power Consumption:
150W
Operating Temperature:
0-40℃
Humidity Range:
10%~95% (non-condensing)
Air Pressure:
6bar/90psi
Print Unit Weight:
9.5KG
Controller Box Weight:
2.0KG
Print Unit Dimensions:
210*210*180mm
Highlight:

AC100-240V Power Supply Thermal Transfer Overprinter

,

6bar Air Supply Smart Coding Machine

,

53x70mm Print Area TTO Printer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$3,200-3,500
RELATED PRODUCTS
Good price DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply online

DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply

Get Best Price
Good price DIKAI D05S Automatic TTO Printer with 53mm*150mm Print Area and 2-36 m/minute Printing Speed for Plastic Foil Bags online

DIKAI D05S Automatic TTO Printer with 53mm*150mm Print Area and 2-36 m/minute Printing Speed for Plastic Foil Bags

Get Best Price
Good price Dikai D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and Long Service Life for Date and Barcode Printing online

Dikai D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and Long Service Life for Date and Barcode Printing

Get Best Price
Good price Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power online

Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power

Get Best Price
CONTACT US
info@dikaicoding.net
86-21-51086700
Contact Now
Product Description
DIKAI D05S 53mm TTO Printer Thermal Transfer Overprinter Printhead Smart Coding Machine
Product Overview
DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine 0 DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine 1

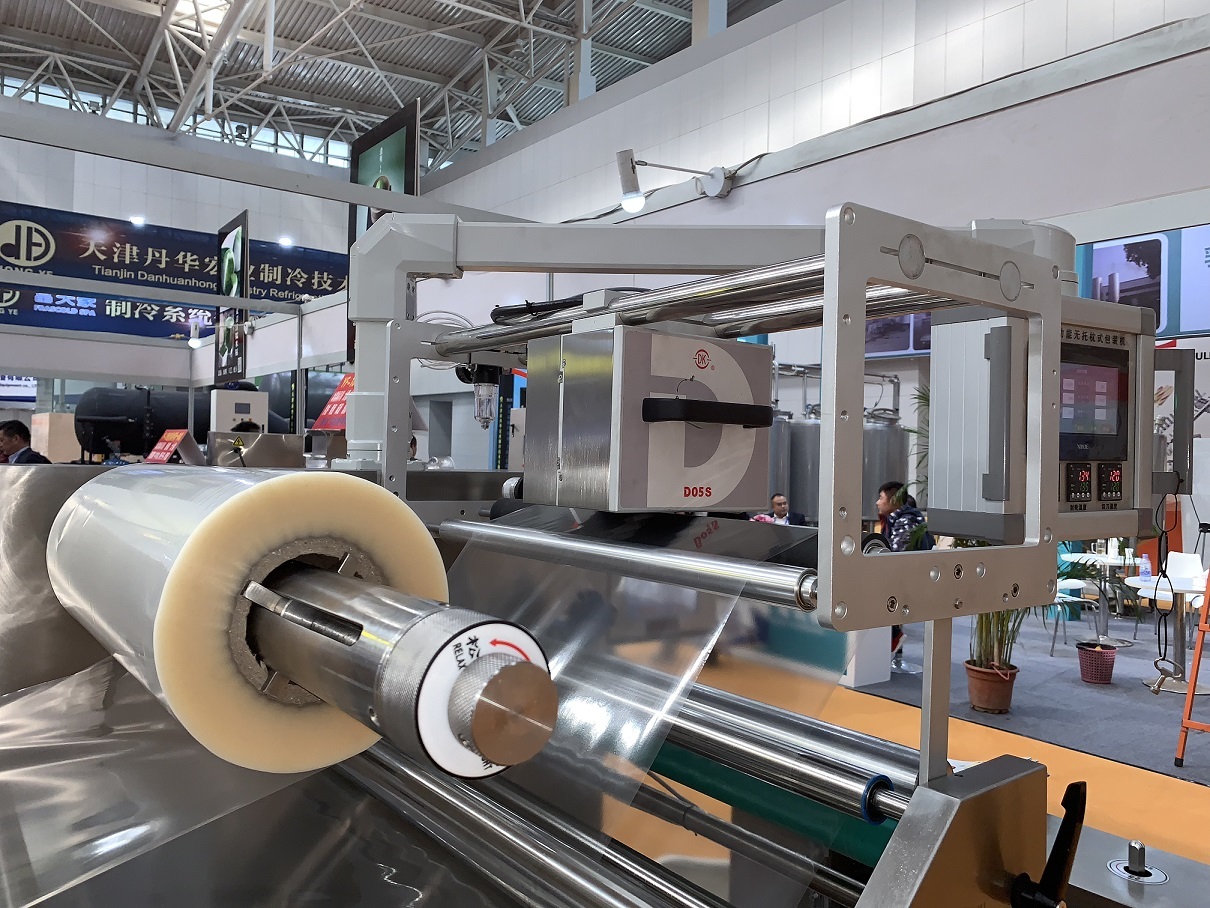

The D05S Thermal Transfer Overprinter with 53mm printhead is one of the most cost-effective smart coding machines. It helps customers manage and use manufacturing data for identification, verification, product promotion, and logistic tracing. These solutions are widely applied in food, paper making, medicine, seeds, medical equipment, cosmetics, daily tissue, daily chemicals, and wood industries.
Available in two types: Right hand machine & Left hand machine
Key Features
  • Continuous & Intermittent printing modes
  • 53mm Kyocera Printhead
  • Real-time variable data printing
  • 300 DPI resolution
  • Low operational cost
  • Easy to operate
DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine 2 DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine 3

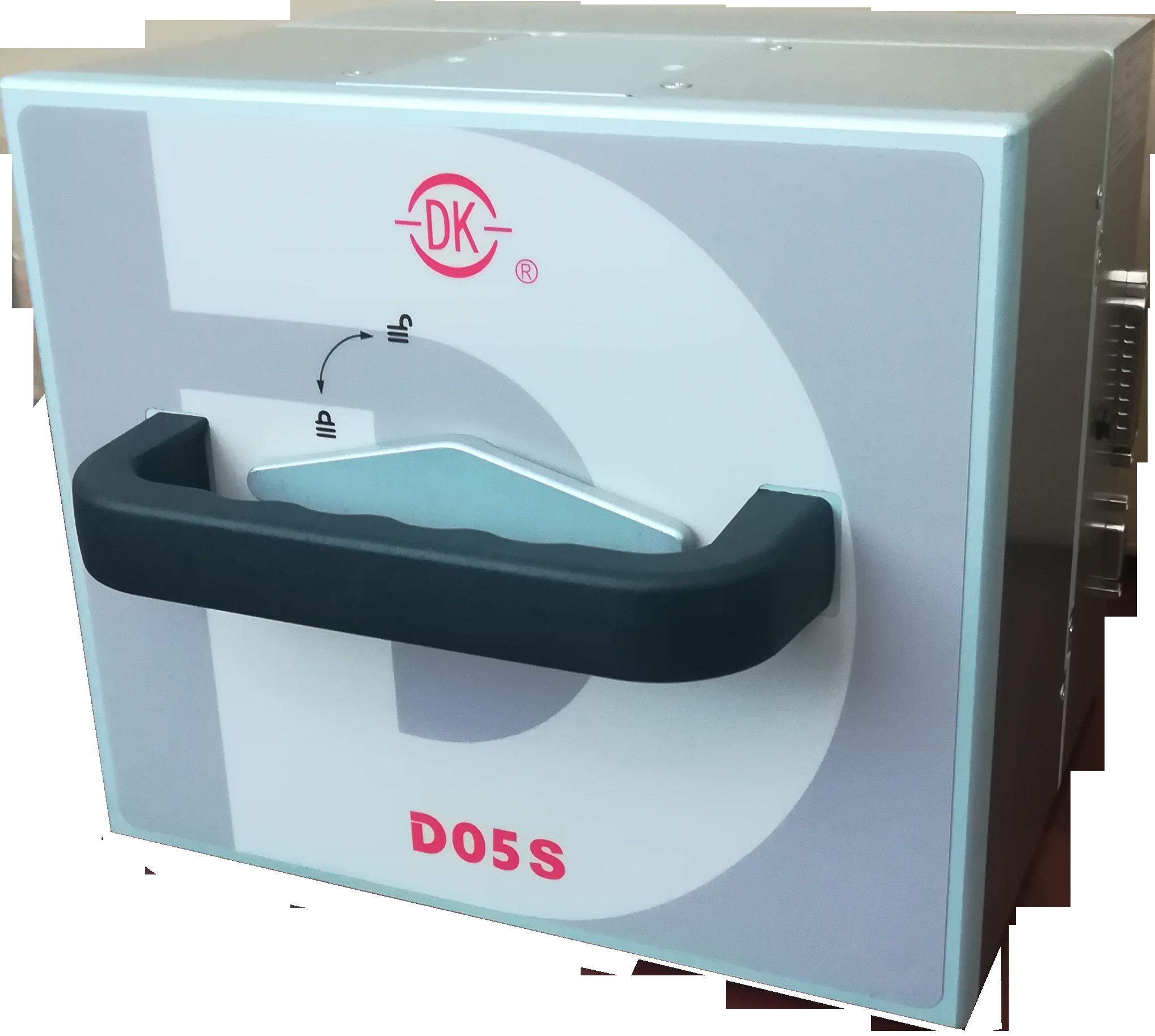

53mm Printhead
DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine 4

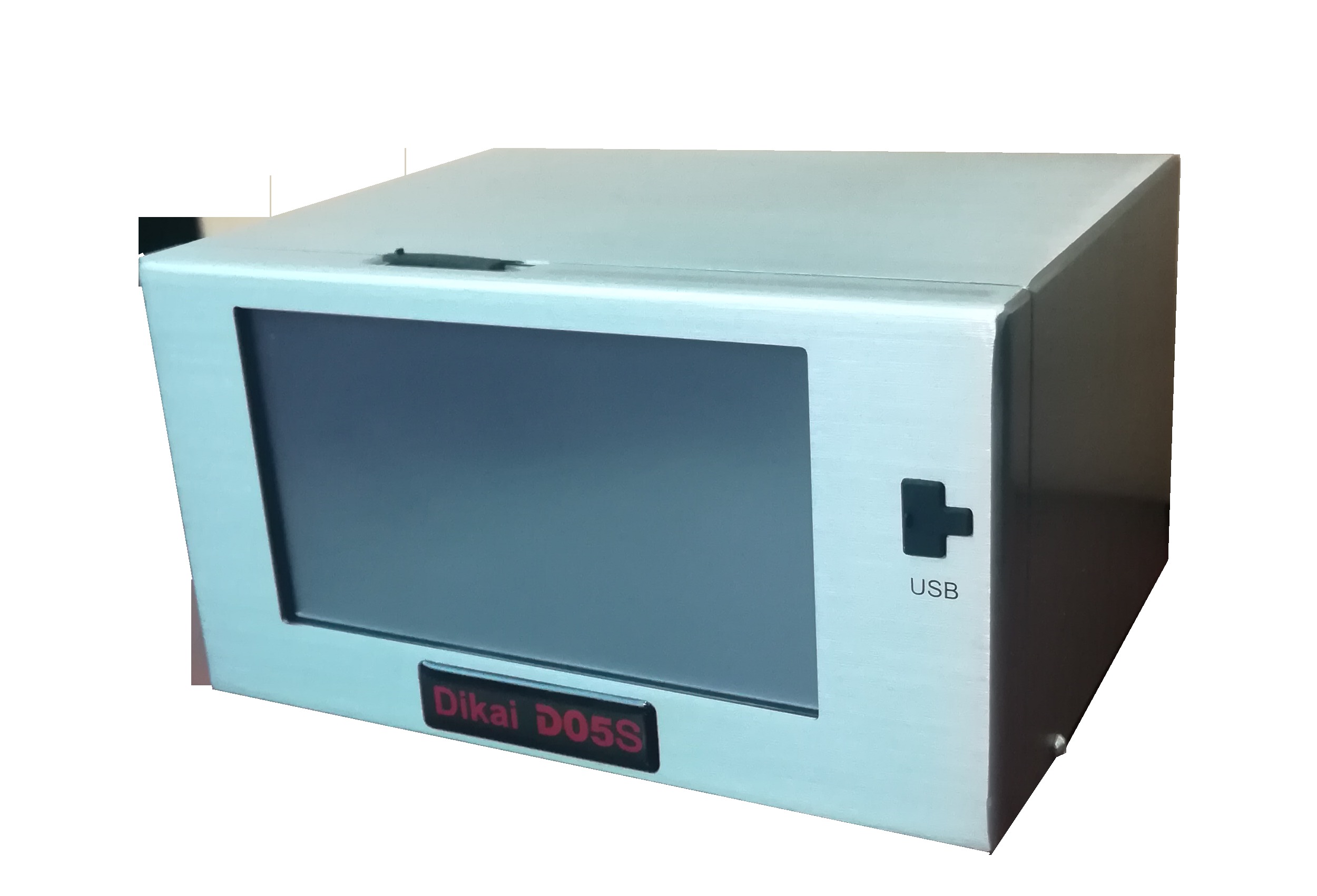

Interface
DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine 5
Technical Specifications
Specification Details
Print Head 53mm, Kyocera; 300DPI
Print Area Intermittent: 53mm*70mm
Continuous: 53mm*150mm
Ribbon Size 55mm*600m
Print Frequency Intermittent: up to 300PPM
Continuous: up to 30PPM
Power 150W
Operation Temperature 0-40℃
Relative Humidity 10%~95% (non-condensing)
Air Supply 6bar/90PSI (MAX) dry, Clean
Weight Print head: 8.5kg, Control box: 2.0kg
Dimensions (L*W*H) Print Unit: 210mm*210mm*185mm
Controller box: 233mm*180mm*128mm
Note: Prices shown are not final. Please consult us for proper solutions.
Packaging & Shipping
  • Standard wooden cases with protective sponge filling
  • Fumigation-free wooden cases suitable for sea & air transport
  • Customized packing available per customer requirements
DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine 6 DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine 7
Company Profile
DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine 8
Shanghai Dikai Coding Industry Co., Ltd was founded in 1995 and has dedicated itself to being a comprehensive coding solutions provider with R&D, innovation, manufacturing, sales & service of quality coding machines and consumables including TTO, Ink Roll Coder, TIJ, CIJ, Laser, Hot Stamp Coder, Carton Coding Machine, Ink Roll, Ribbon, etc.
With headquarters in Shanghai, China, we have 16 branch offices and authorized distributors domestically, serving over 4,000 end users and 200 packaging machine manufacturers. Our products have been exported to more than 100 countries since 2006.
DIKAI Vision: To be renowned ID system integrator in the world
DIKAI Values: Customer's benefit comes first
DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine 9 DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine 10 DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine 11
Manufacturing Capabilities
  • 5S management system
  • Strict quality control
  • Clear operating instructions
  • Regular worker training
Production Capacity
TTO Workshop: Over 1,000 sets per month
DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine 12
Ink Roll Coder Workshop: Over 1,500 sets per month
DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine 13
Laser Workshop: Over 80 sets per month
Certifications
DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine 14 DIKAI D05S 53mm Thermal Transfer Overprinter with AC100-240V Power Supply 6bar Air Supply and 53x70mm Print Area Smart Coding Machine 15
Frequently Asked Questions
1. Why choose Dikai?
Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We commit to satisfying every customer's different needs in coding and marking.
2. What's the regular lead time?
Standard lead time is 1-2 weeks after order confirmation. Stocked goods can be delivered in 2 working days.
3. What's the warranty period?
12 months after leaving Dikai warehouse.
4. How about after-sales service?
We work with local distributors for service support and provide online technical assistance with continuously upgraded video support.
Tags：

Continuous Thermal Transfer Overprinter

150W Thermal Transfer Overprinter

QR Code Pneumatic Printing Machine

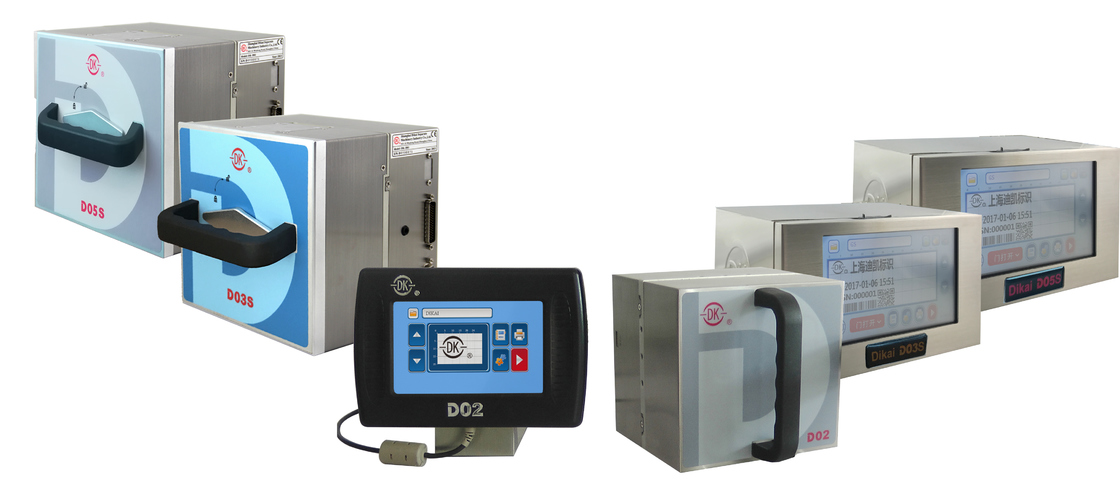

Related Products
