DIKAI China Thermal Transfer Overprinter (TTO)
Product Overview
The D02 Thermal Transfer Overprinter was developed by DIKAI's own R&D team with 2 national patents. Designed for vertical packers, it can be installed on intermittent package machines and labeling machines to print barcodes, QR codes, logos, images, variable data, tables, nutrition lists, and serial numbers on package films in various print fonts.
Key Features
- Continuous & Intermittent printing modes
- 24mm Kyocera printhead with 200 DPI resolution
- Real-time variable data printing capability
- Low operational cost
- User-friendly operation
32mm Printhead Option

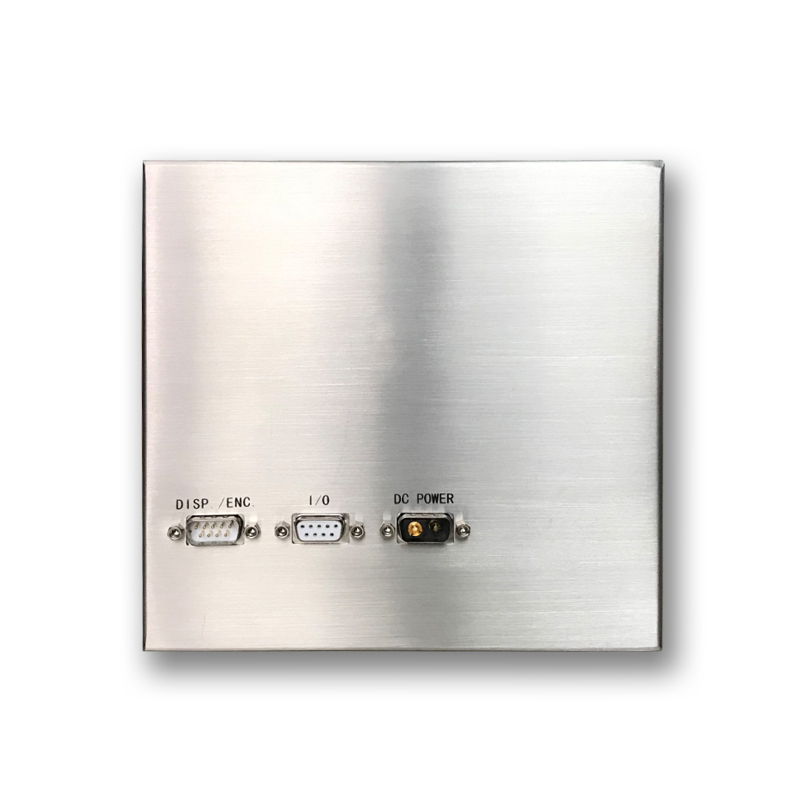

Interface Details
Technical Specifications
| Specification |
Details |
| Print Head |
24mm, Kyocera; 200DPI |
| Print Area |
Intermittent: 24mm*40mm |
| Ribbon Size |
25mm*500m |
| Print Frequency |
Intermittent: up to 120PPM |
| Power |
AC110~220V, 50/60Hz, 120W |
| Operation Temperature |
0-40℃ |
| Humidity |
10%~95% (non-condensing) |
| Weight |
Print head: 5kg, Operate handle: 0.4kg |
| Dimensions |
Print Unit: 210mm*210mm*185mm
Controller box: 233mm*180mm*128mm |
Note: The prices shown on Alibaba are not final prices. Please consult us for proper solutions for your needs.
Packaging & Shipping
The carton package is suitable for sea, air, and fast courier shipping.
After Sales Service
- R&D supports
- Operation manual guidance
- 24-hour professional online support
- Video support
- Possible onsite support
Company Introduction
Shanghai Dikai Coding Industry Co., Ltd was founded in 1995 and has dedicated itself to being a comprehensive coding solutions provider with R&D, innovation, manufacturing, sales & service of quality coding machines and consumables including TTO, Ink Roll Coder, TIJ, CIJ, Laser, Hot Stamp Coder, and Carton Coding Machines.
Our headquarters is located in Shanghai, China, with 16 branch offices and many authorized distributors domestically, serving over 4,000 end users and more than 200 packing machine manufacturers. Our products have been exported to more than 100 countries and regions since 2006.
Production Capacity
TTO Workshop: Over 1,000 sets per month
Ink Roll Coder Workshop: Over 1,500 sets per month
Laser Workshop: Over 80 sets per month
Certifications
Frequently Asked Questions
1. Why choose Dikai?
Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We are committed to satisfying every customer's different needs in coding and marking applications.
2. What's the regular lead time for Dikai products?
Lead time for all Dikai goods is 1-2 weeks after order confirmation. For stocked goods, delivery can be made within 2 working days.
3. What's the warranty of Dikai goods?
Standard warranty is 12 months after leaving Dikai warehouse.
4. How about your after-sales service?
For countries with distributors, we rely on our distributor network for after-sales services. Dikai also provides online technical support and continuously upgraded video support materials.
