Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power

Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power

53mm*150mm Print Area Thermal Transfer Overprinter

2-36 m/minute Printing Speed TTO Printer

AC 220V/50Hz 110V/60Hz Date Coding Machine

Place of Origin:

Shanghai, China

Brand Name:

DIKAI

Certification:

CE, ROHS, MSDS

Contact Us
Request A Quote
Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power
Product Details
Print Head Width:
53mm
Print Resolution:
300DPI
Max Print Area:
53mm*150mm
Printing Speed:
2-36 M/minute
Interface:
USB; RS232
Power Supply:
AC100-240V 50/60HZ
Air Supply:
6bar/90psi(max.),dry,clean
Voltage:
AC 220V/50Hz 110V/60Hz
Dimensions:
188*190*180mm (L*W*H)
Weight:
16kg
Print Frequency Intermittent:
Up To 300PPM
Print Frequency Continuous:
Up To 30PPM
Power Consumption:
150W
Operating Temperature:
0-40℃
Relative Humidity:
10%~95%(non-condensing)
Highlight:

53mm*150mm Print Area Thermal Transfer Overprinter

,

2-36 m/minute Printing Speed TTO Printer

,

AC 220V/50Hz 110V/60Hz Date Coding Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$3,200-3,500
RELATED PRODUCTS
Good price DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply online

DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply

Get Best Price
Good price DIKAI D05S Automatic TTO Printer with 53mm*150mm Print Area and 2-36 m/minute Printing Speed for Plastic Foil Bags online

DIKAI D05S Automatic TTO Printer with 53mm*150mm Print Area and 2-36 m/minute Printing Speed for Plastic Foil Bags

Get Best Price
Good price Dikai D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and Long Service Life for Date and Barcode Printing online

Dikai D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and Long Service Life for Date and Barcode Printing

Get Best Price
Good price Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power online

Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power

Get Best Price
CONTACT US
info@dikaicoding.net
86-21-51086700
Contact Now
Product Description
High Quality Dikai D05S Date Coding Machine for Flexible Packaging Machine
Product Overview
Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 0

The D05S Thermal Transfer Overprinter with 53mm printhead is one of the most cost-effective smart coding machines. It helps customers manage and use manufacturing data for identification, verification, product promotion, and logistic tracing. These solutions are widely applied in food, paper making, medicine, seeds, medical equipment, cosmetics, daily tissue, daily chemicals, and wood industries.

Available in two types: Right hand machine & Left hand machine.

Key Features
  • Continuous & Intermittent operation
  • 53mm Kyocera Printhead
  • Real-time variable date printing
  • 300 DPI resolution
  • Low cost operation
  • Easy to operate
Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 1 Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 2

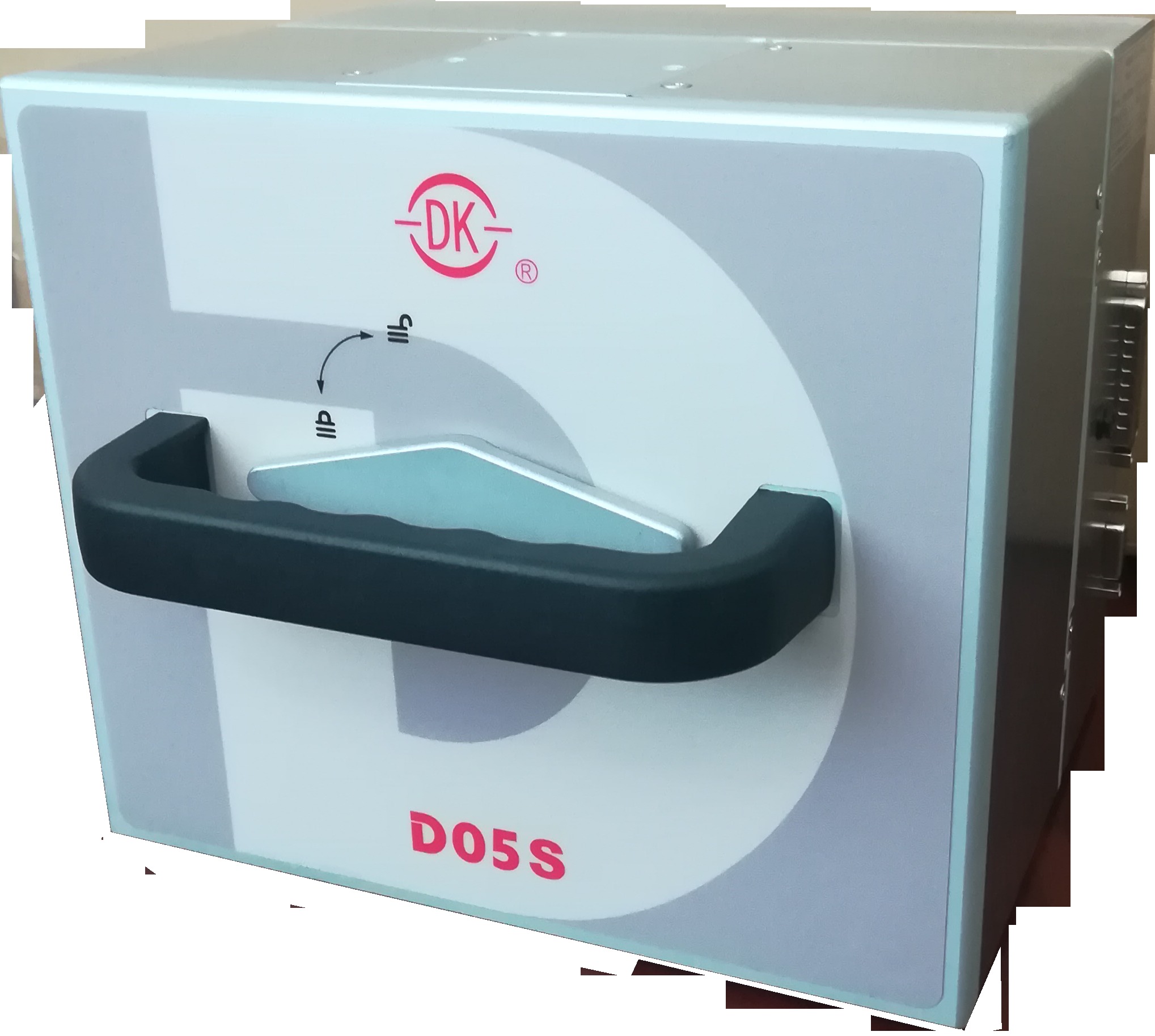

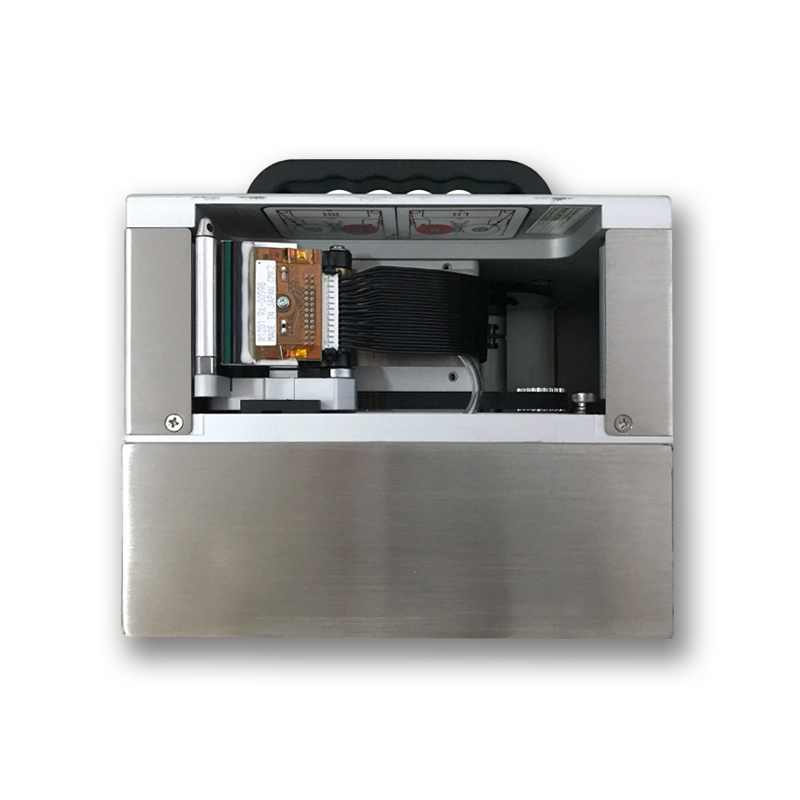

53mm Printhead
Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 3

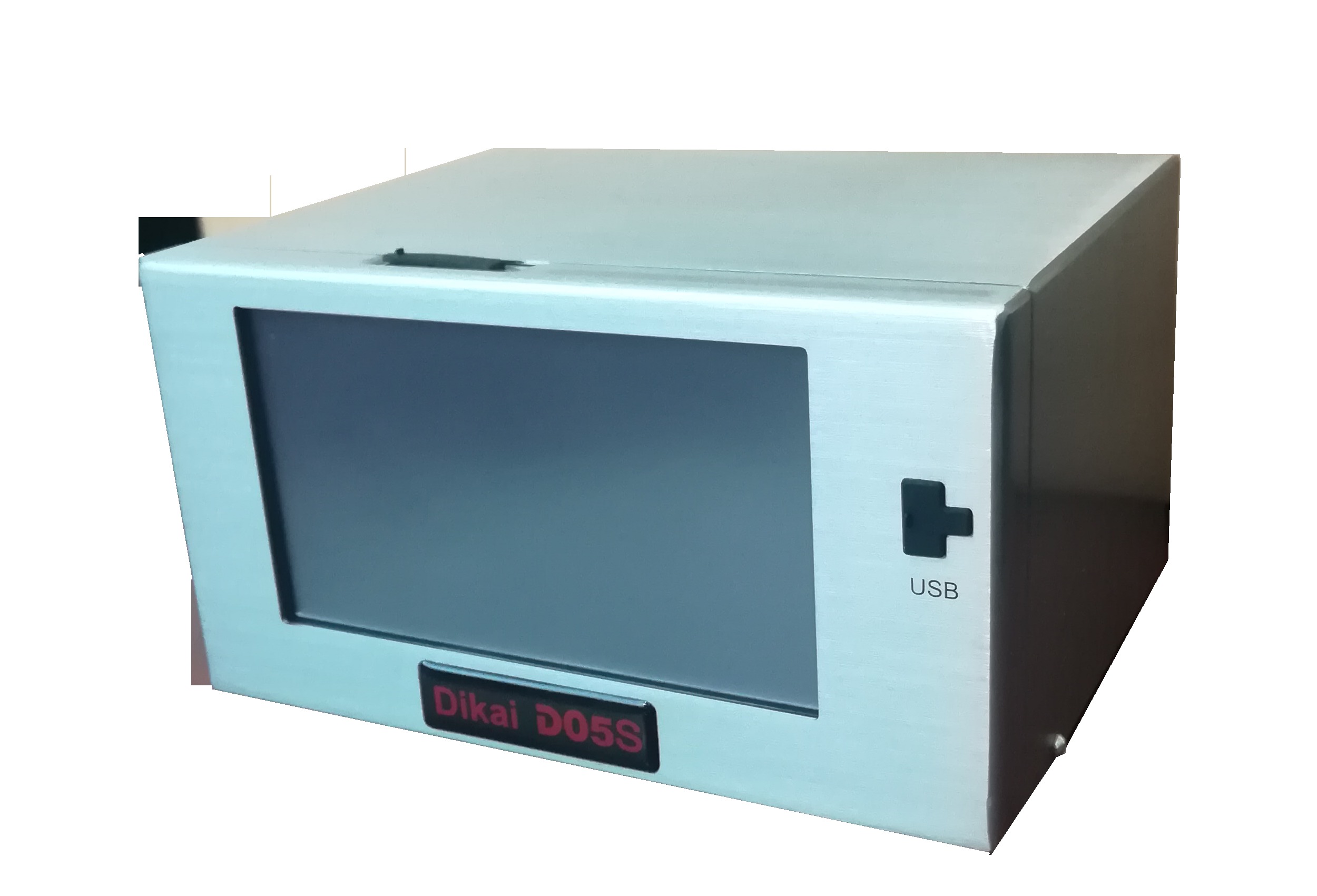

Interface
Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 4
Technical Specifications
Print Head 53mm, Kyocera; 300DPI
Print Area Intermittent: 53mm*70mm
Continuous: 53mm*150mm
Ribbon Size 55mm*600m
Print Frequency Intermittent: up to 300PPM
Continuous: up to 30PPM
Power 150W
Environmental Operation Temperature 0-40℃
Relative Humidity 10%~95%(non-condensing)
Air Supply 6bar/90PSI(MAX) dry, Clean
Weight Print head: 8.5kg, Control box: 2.0kg
Dimension(L*W*H) Print Unit: 210mm*210mm*185mm
Controller box: 233mm*180mm*128mm
Note: The prices shown on Alibaba are not final prices, please consult us for proper solutions for you.
Packaging & Shipping
  • Standard export cartons with sponge filled inside for packing protection
  • Package suitable for sea, air, fast courier shipping
  • Customized Packing as per Customer's requirement
Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 5 Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 6
After Sales Service & Technical Support
Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 7
  • R&D supports
  • Operation Manual Guidance
  • Within 24-hour professional online supports
  • Video supports
  • Possible onsite supports
Company Introduction
Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 8

Shanghai Dikai Coding Industry Co., Ltd was founded in 1995 and has dedicated itself to being a comprehensive coding solutions provider with R&D, innovation, manufacturing, sales & service of quality coding machines & consumables including TTO, Ink Roll Coder, TIJ, CIJ, Laser, Hot Stamp Coder, Carton Coding Machine, Ink Roll, Ribbon, etc.

Our headquarters is located in Shanghai, China, with 16 branch offices and many authorized distributors domestically, serving more than 4,000 end users and over 200 packing machine manufacturers. Our products have been exported to more than 100 countries and regions since 2006.

DIKAI Vision: To be renowned ID system integrator in the world

DIKAI Values: Customer's benefit comes first

Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 9 Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 10 Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 11
Factory Operations
  • 5S management
  • Strict quality control
  • Clear operate instructions
  • Regular training of workers
TTO Workshop

Over 1000 sets per month

Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 12
Ink Roll Coder Workshop

Over 1500 sets per month

Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 13
Laser Workshop

Over 80 sets per month

Certifications
Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 14 Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 15
Exhibitions
Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 16 Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 17 Dikai D05S Thermal Transfer Overprinter with 53mm*150mm Print Area 2-36 m/minute Printing Speed and AC 220V/50Hz 110V/60Hz Power 18
Frequently Asked Questions
1. Why choose Dikai?

Our company has dedicated to development, manufacturing and sales of qualified coding machines and consumables for 25 years. Meanwhile, we commit ourselves to satisfy every customers' different needs in coding and marking area.

2. What's the regular lead time for Dikai Products?

Lead time for all Dikai good is 1-2 weeks after order confirmation. For the stocked goods, delivery can be made in 2 working days.

3. How do you ship and package the products?

We use standard wooden cases with sponge filled inside for packing protection and the wooden case is fumigation free which is suitable by sea & by air, we also can provide customized packing if you have special requirement.

4. What's the warranty of Dikai goods?

Regularly 12 months after leaving Dikai Warehouse.

5. How about your after-sales service?

For the countries where we have distributors, we depend on our distributor to do after sales services. Dikai also provide online technical services besides of continuously upgraded video supports.
