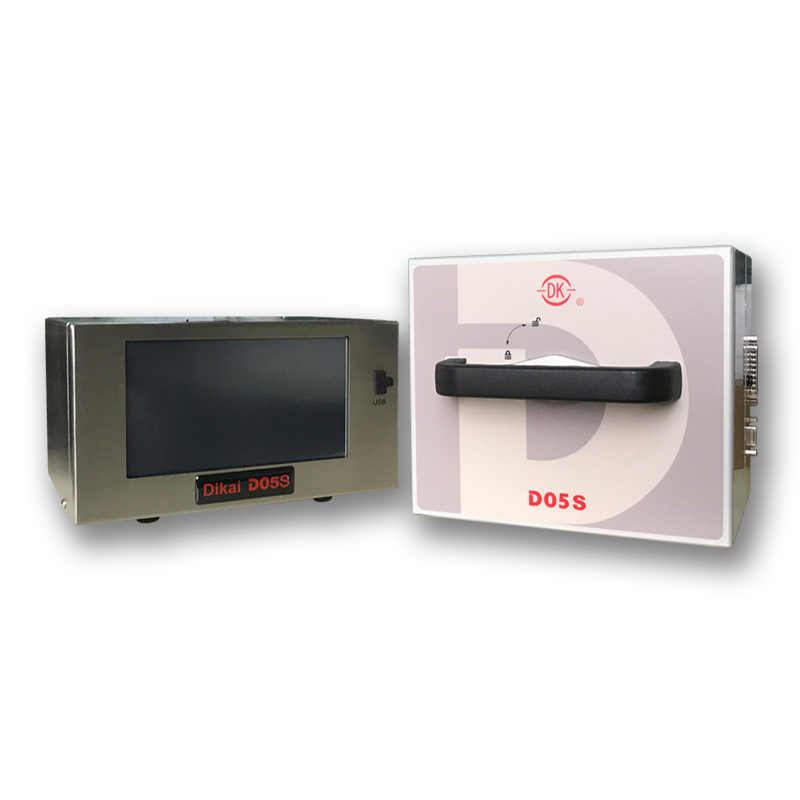

DIKAI D05S TTO Printer Code Printing Machine for Plastic Foil Bags
Product Overview
The D05S Thermal Transfer Overprinter features a 53mm printhead, making it one of the most cost-effective smart coding machines available. This solution helps businesses manage manufacturing data for identification, verification, product promotion, and logistic tracing. Ideal for food, pharmaceuticals, cosmetics, and various industrial applications. Available in right-hand and left-hand configurations.
Key Features
- Continuous & intermittent printing modes

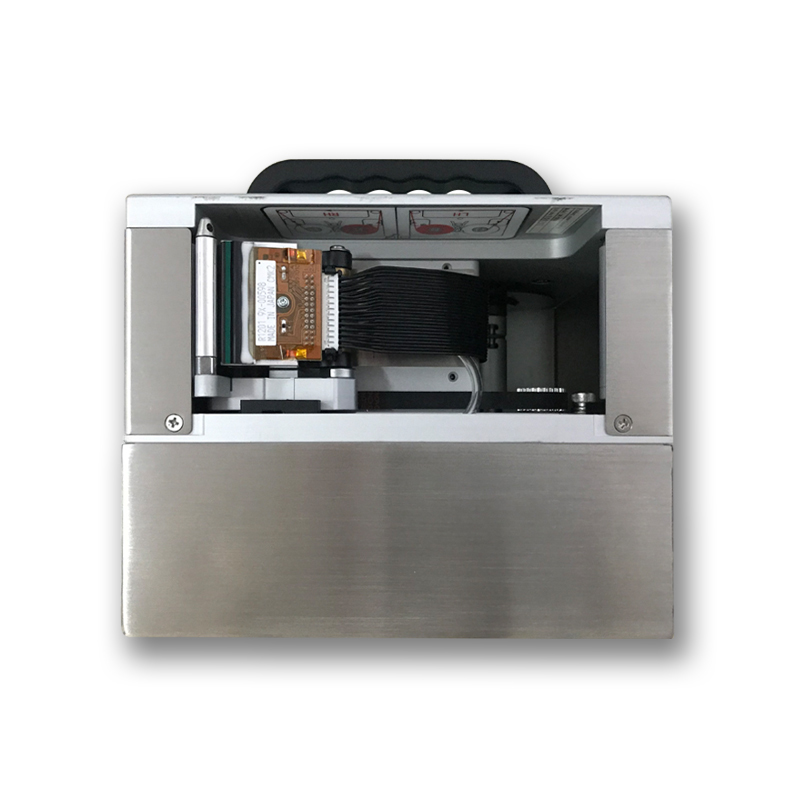

- 53mm Kyocera printhead with 300 DPI resolution
- Real-time variable data printing capability
- Low operational costs
- User-friendly operation

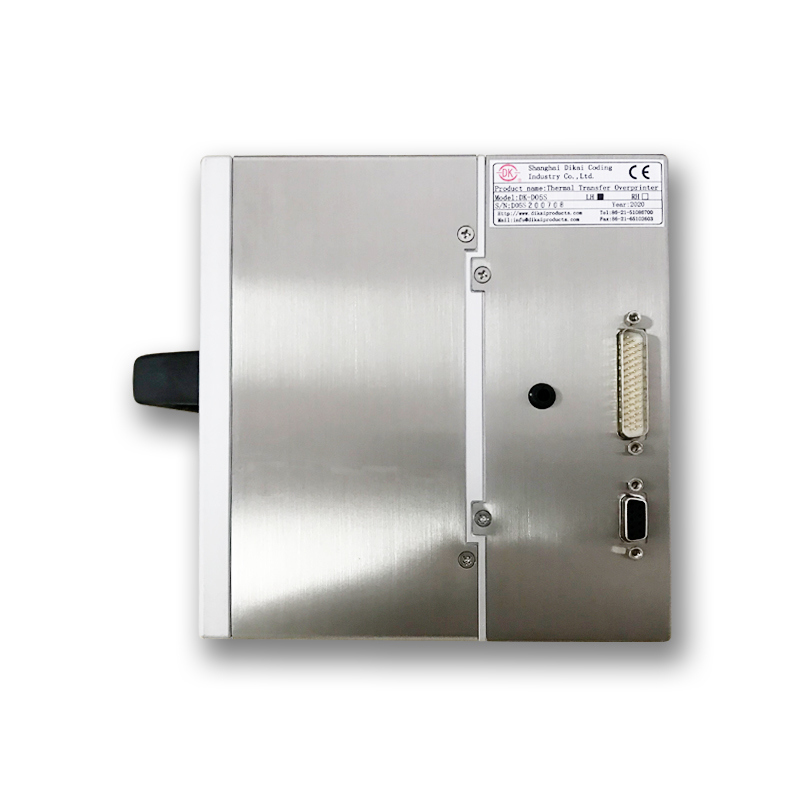

Print Unit

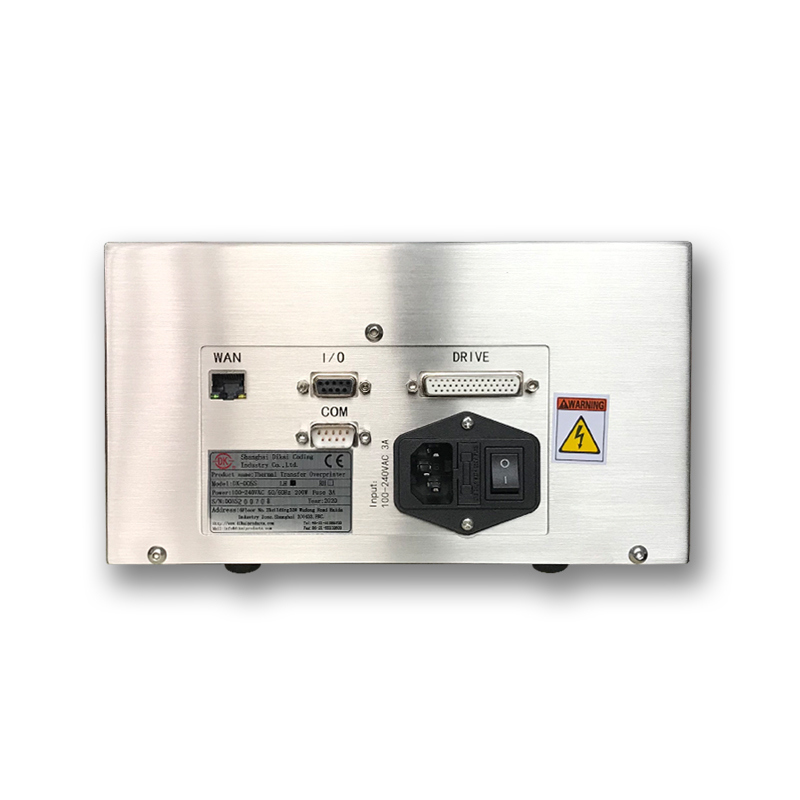

Control Box
Technical Specifications
| Print Head |
53mm, Kyocera; 300DPI |
| Print Area |
Intermittent: 53mm×70mm
Continuous: 53mm×150mm |

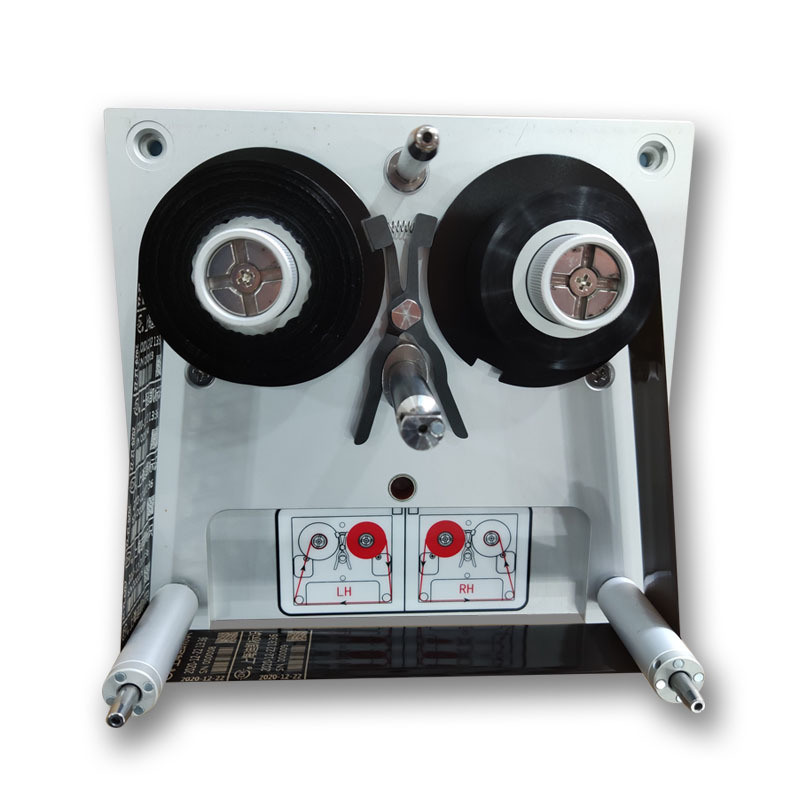

| Ribbon Size |
55mm×600m |
| Print Frequency |
Intermittent: up to 300PPM
Continuous: up to 30PPM |
| Power |
150W |
| Operation Temperature |
0-40℃ |
| Relative Humidity |
10%-95% (non-condensing) |
| Air Supply |
6bar/90PSI (MAX) dry, clean |
| Weight |
Print head: 8.5kg
Control box: 2.0kg |
| Dimensions |
Print Unit: 210×210×185mm
Controller box: 233×180×128mm |
Printing Samples
Note: The prices shown on Alibaba are not final prices. Please consult us for proper solutions for your needs.
Packaging & Shipping
- Standard wooden cases with protective sponge filling
- Fumigation-free wooden cases suitable for sea and air transport
- Customized packing available upon request
After Sales Service
Technical Support
- R&D support
- Operation manual guidance
- 24-hour professional online support
- Video support resources
- Possible onsite support
Frequently Asked Questions
1. Why choose Dikai?
Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We commit to satisfying every customer's unique needs in coding and marking applications.
2. What's the regular lead time for Dikai products?
Standard lead time is 1-2 weeks after order confirmation. Stocked items can be delivered within 2 working days.
3. What's the warranty of Dikai goods?
Standard warranty is 12 months after leaving Dikai warehouse.
4. How about your after-sales service?
For countries with distributors, we rely on our distributor network for after-sales services. Dikai also provides online technical support and continuously upgraded video resources.
Company Introduction
Shanghai Dikai Coding Industry Co., Ltd was founded in 1995 and has established itself as a comprehensive coding solutions provider specializing in R&D, innovation, manufacturing, sales, and service of quality coding machines and consumables including TTO, Ink Roll Coder, TIJ, CIJ, Laser, Hot Stamp Coder, Carton Coding Machine, Ink Roll, Ribbon, and more.
Headquartered in Shanghai, China, we operate 16 branch offices and numerous authorized distributors domestically, serving over 4,000 end users and more than 200 packaging machine manufacturers. Our products have been exported to more than 100 countries and regions since 2006.
DIKAI Vision: To be renowned as an ID system integrator worldwide.
DIKAI Values: Customer's benefit comes first.
Manufacturing Facilities
TTO Workshop: Production capacity over 1,000 units per month
Ink Roll Coder Workshop: Production capacity over 1,500 units per month
Laser Workshop: Production capacity over 80 units per month
Certifications
Exhibitions
