DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants

DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants

AC100-240V Thermal Transfer Overprinter

6bar Air Supply TTO Printer

Long Service Life Barcode Printing Machine

Place of Origin:

Shanghai, China

Brand Name:

Dikai

Certification:

CE, ISO

Contact Us
Request A Quote
Product Details
Print Head:
32mm, Kyocera; 300DPI
Print Area:
Intermittent: 32mm*60mm, Continuous: 32mm*100mm
Ribbon Size:
33mm*500m
Print Frequency:
Intermittent: Up To 350PPM, Continuous: Up To 40 Meters/minute
Power Supply:
AC110~220V, 50/60Hz, 150W
Operation Temperature:
0-40℃
Relative Humidity:
10%~95% (non-condensing)
Air Supply:
6bar/90PSI (MAX) Dry Uncontaminated
Weight:
Print Head: 8.5kg, Control Box: 2.0kg
Dimension:
Print Unit: 188mm*190mm*180mm, Controller Box: 210mm*180mm*155mm
Voltage:
AC100-240V 50/60Hz
Print Mode:
Intermittent/Continuous
Max Ribbon Length:
500m
Ribbon Width:
22mm~33mm
Interface:
USB, RS232, Network Interface
Highlight:

AC100-240V Thermal Transfer Overprinter

,

6bar Air Supply TTO Printer

,

Long Service Life Barcode Printing Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$2,700-3,000
Product Description

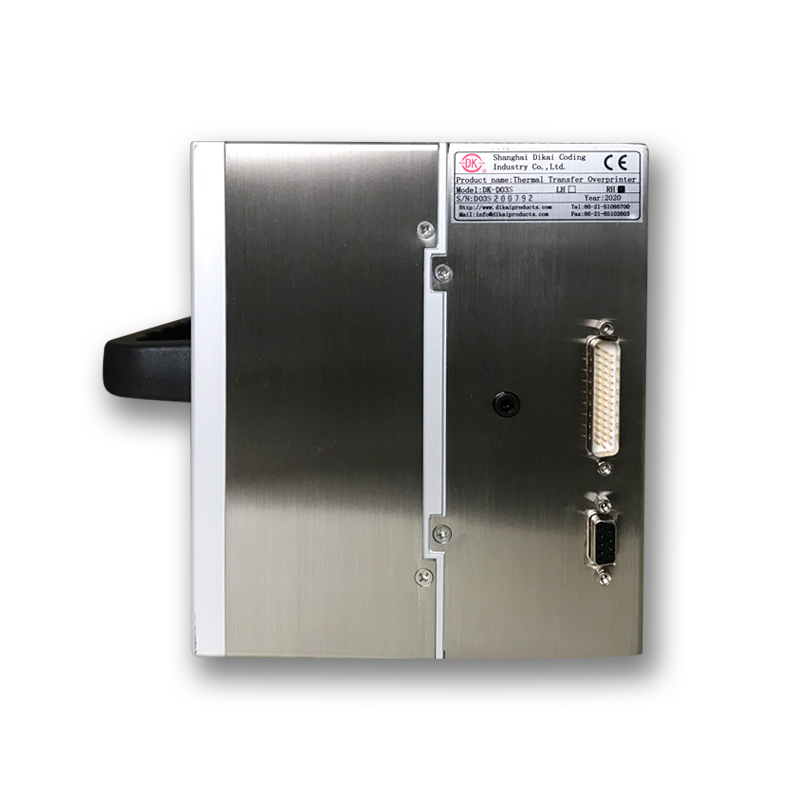

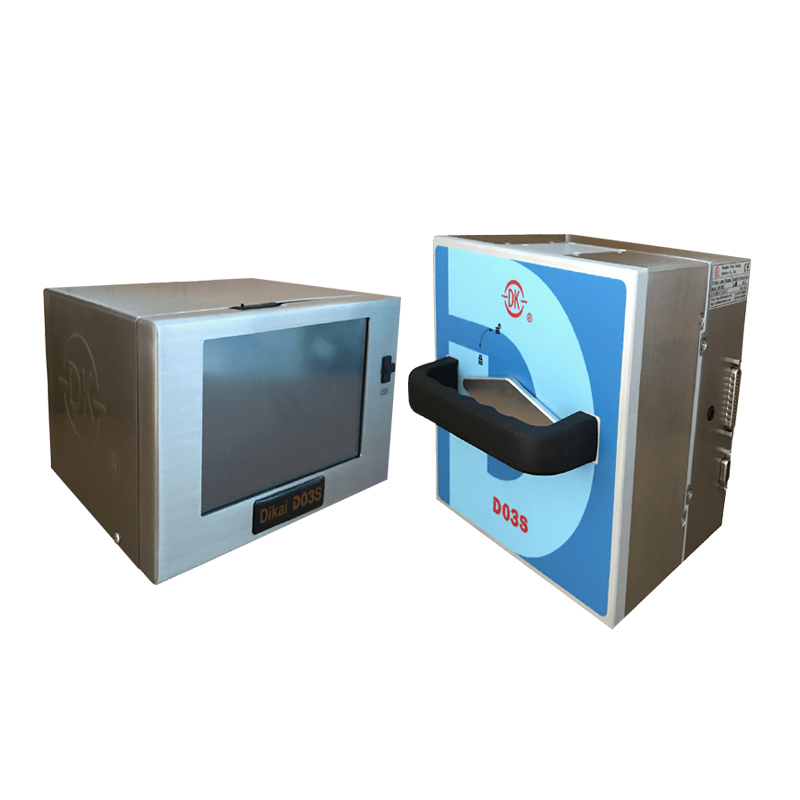

DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head
Product Overview

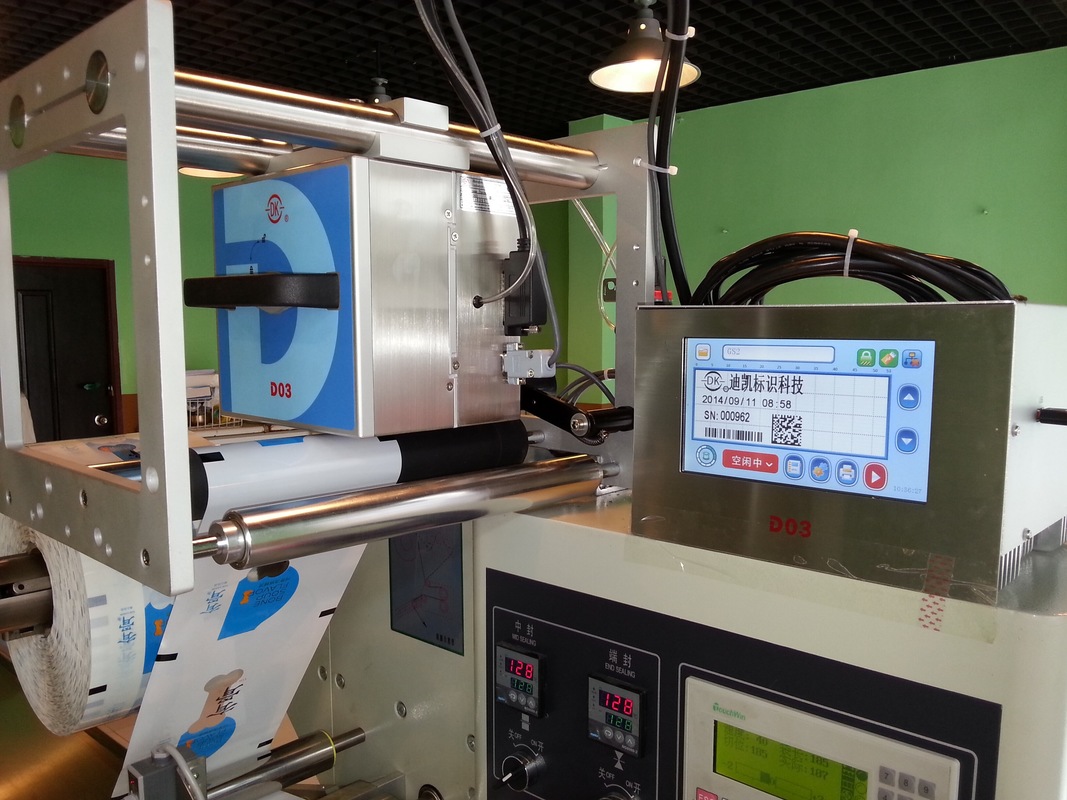

The DIKAI D03S Thermal Transfer Printer was developed through 4 years of dedicated R&D. This versatile machine combines intermittent and continuous printing modes, making it compatible with both horizontal and vertical packing machines. Equipped with a high-resolution 300dpi printhead, the D03S prints barcodes, QR codes, expiration dates, real-time data, graphics, logos, and other variable information directly onto packaging materials. All printing parameters can be adjusted through the intuitive user interface.

Key Features
  • Dual-mode operation (Continuous & Intermittent)
  • 32mm Kyocera Printhead with 300 DPI resolution
  • Prints real-time and variable data
  • Cost-effective solution
  • User-friendly operation
DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 0 DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 1 DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 2 DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 3
Technical Specifications
Print Head 32mm, Kyocera; 300DPI
Print Area Intermittent: 32mm×60mm
Continuous: 32mm×100mm
Ribbon Size 33mm×500m
Print Frequency Intermittent: up to 350PPM
Continuous: up to 40 meters/minute
Power AC110~220V, 50/60Hz, 150W
Operation Temperature 0-40℃
Humidity 10%~95% (non-condensing)
Air Supply 6bar/90PSI (MAX) dry uncontaminated
Weight Print head: 8.5kg, Control box: 2.0kg
Dimensions Print Unit: 188×190×180mm
Controller box: 210×180×155mm
Note: Prices shown are not final. Please consult us for customized solutions.
Printing Samples
DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 4 DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 5 DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 6 DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 7
Technical Support
  • R&D support
  • Operation manual guidance
  • 24-hour professional online support
  • Video tutorials
  • Onsite support when required
DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 8
Packaging & Shipping
DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 9 DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 10 DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 11 DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 12
Company Overview

Founded in 1995, Shanghai Dikai Coding Industry Co., Ltd specializes in comprehensive coding solutions including R&D, manufacturing, and sales of quality coding machines and consumables such as TTO, Ink Roll Coders, TIJ, CIJ, Laser, and Hot Stamp Coders.

With 16 branch offices and numerous authorized distributors domestically, we serve over 4,000 end users and 200 packaging machine manufacturers. Our products are exported to more than 100 countries worldwide.

DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 13 DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 14 DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 15 DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 16
Production Capabilities
  • TTO Workshop: Over 1,000 units per month
  • Ink Roll Coder Workshop: Over 1,500 units per month
  • Laser Workshop: Over 80 units per month
DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 17 DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 18 DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 19
Certifications
DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 20 DIKAI D03S Thermal Transfer Overprinter with 32mm Print Head for QR Code and Barcode Printing in Manufacturing Plants 21
Frequently Asked Questions
Why choose Dikai?

With 25 years of experience in developing, manufacturing, and selling quality coding machines and consumables, we are committed to meeting every customer's unique coding and marking requirements.

What's the regular lead time?

Standard lead time is 1-2 weeks after order confirmation. Stocked items ship within 2 working days.

What's the warranty period?

Standard warranty is 12 months from leaving our warehouse.

How is after-sales service handled?

In countries with distributors, we rely on local support networks. We also provide comprehensive online technical support and continuously updated video resources.
