DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply

DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply
Basic Information
Place of Origin: Shanghai, China
Brand Name: DIKAI
Certification: CE, ROHS, MSDS
Minimum Order Quantity: 1
Price: $3,200-3,500
Get Best Price Contact Now
Print Head Width: 53mm Print Resolution: 300DPI
Max Print Area: 53mm*150mm Printing Speed: 2-36 M/minute
Interface: USB; RS232 Power Supply: AC100-240V 50/60HZ
Air Supply: 6bar/90psi(max.) Print Frequency Intermittent: Up To 300PPM
Print Frequency Continuous: Up To 30PPM Power Consumption: 150W
Operation Temperature: 0-40℃ Relative Humidity: 10%~95%(non-condensing)
Weight: 16kg Print Unit Dimensions: 210mm*210mm*185mm
Controller Box Dimensions: 233mm*180mm*128mm
Highlight:

53mm*150mm Max Print Area Thermal Transfer Overprinter

,

6bar/90psi Air Supply TTO Printer

,

AC 220V/50Hz 110V/60Hz Coding Machine

DIKAI D05S Thermal Transfer Overprinter
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 0
With a 53mm printhead, the DIKAI D05S is one of the most cost-effective smart coding machines. It helps customers manage and use manufacturing data for identification, verification, product promotion, and logistic tracing. These solutions are widely applied in food, paper making, medicine, seeds, medical equipment, cosmetics, daily tissue, daily chemicals, and wood industries.
Available in two types: Right hand machine & Left hand machine.
Key Features
  • Continuous & Intermittent printing modes
  • 53mm Kyocera Printhead
  • Real-time, variable date printing
  • 300 DPI resolution
  • Low operational cost
  • Easy to operate
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 1 DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 2

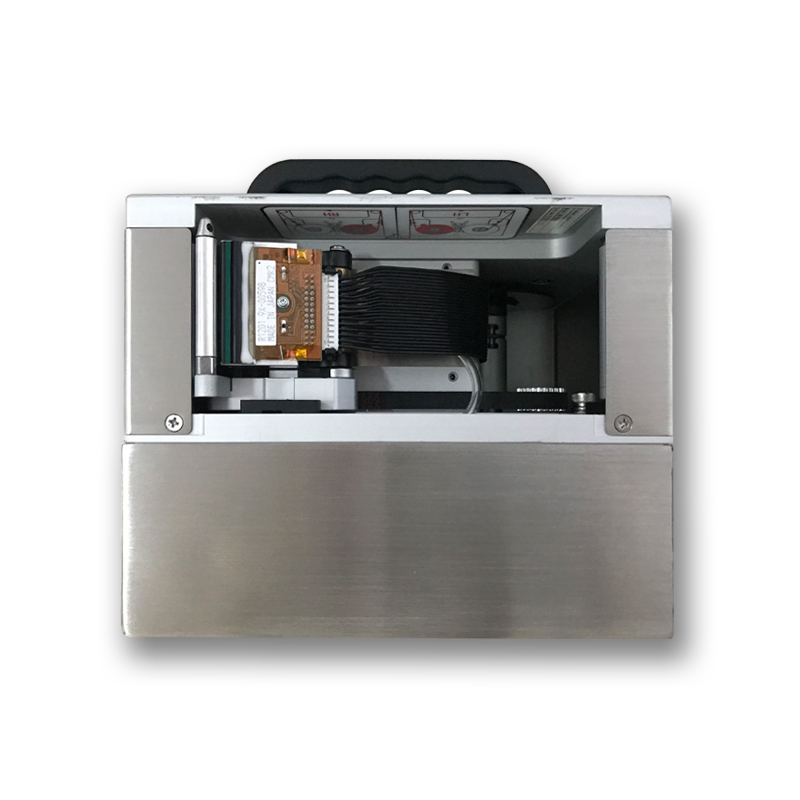

53mm Printhead
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 3

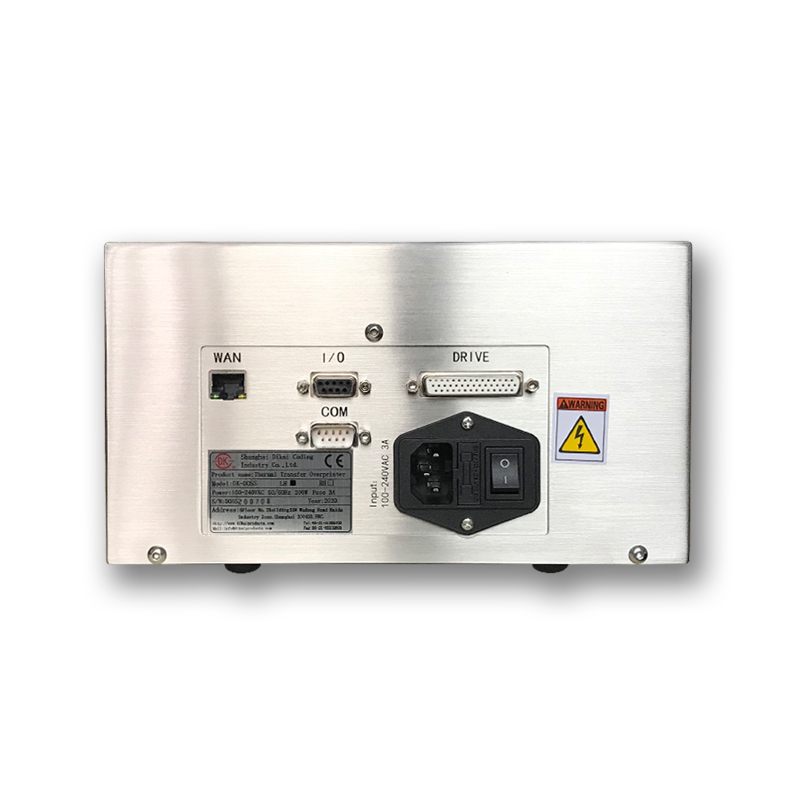

Interface
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 4
Product Specifications
Specification Details
Print Head 53mm, Kyocera; 300DPI
Print Area Intermittent: 53mm*70mm
Continuous: 53mm*150mm
Ribbon Size 55mm*600m
Print Frequency Intermittent: up to 300PPM
Continuous: up to 30PPM
Power 150W
Environmental Operation Temperature 0-40℃
Relative Humidity 10%~95% (non-condensing)
Air Supply 6bar/90PSI (MAX) dry, Clean
Weight Print head: 8.5kg, Control box: 2.0kg
Dimensions (L*W*H) Print Unit: 210mm*210mm*185mm
Controller box: 233mm*180mm*128mm
Note: The prices shown on Alibaba are not final prices. Please consult us for proper solutions for your needs.
Printing Effect
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 5 DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 6
Installations
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 7 DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 8
Packaging & Shipping
1. Standard export cartons with sponge filling for packing protection
2. Package suitable for sea, air, or fast courier shipping
3. Customized packing available per customer requirements
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 9 DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 10
After Sales Service
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 11
Technical Supports
  • R&D supports
  • Operation Manual Guidance
  • Within 24-hour professional online supports
  • Video supports
  • Possible onsite supports
Company Introduction
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 12
Shanghai Dikai Coding Industry Co., Ltd was founded in 1995 and has dedicated itself to being a comprehensive coding solutions provider with R&D, innovation, manufacturing, sales & service of quality coding machines and consumables including TTO, Ink Roll Coder, TIJ, CIJ, Laser, Hot Stamp Coder, Carton Coding Machine, Ink Roll, Ribbon, etc.
Our headquarters is located in Shanghai, China, with 16 branch offices and many authorized distributors domestically, serving more than 4,000 end users and over 200 packing machine manufacturers. Our products have been exported to more than 100 countries and regions since 2006.
DIKAI Vision: To be renowned ID system integrator in the world
DIKAI Values: Customer's benefit comes first
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 13 DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 14 DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 15
Factory
1. 5S management
2. Strict quality control
3. Clear operating instructions
4. Regular training of workers
TTO Workshop
Over 1000 sets per month
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 16
Ink Roll Coder Workshop
Over 1500 sets per month
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 17
Laser Workshop
Over 200 sets per month
Certification
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 18 DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 19
Exhibition
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 20 DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 21 DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 22
Open Cooperation
DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm*150mm Max Print Area and 6bar/90psi Air Supply 23
FAQ
1. Why choose Dikai?
Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We commit to satisfying every customer's different needs in coding and marking.
2. What's the regular lead time for Dikai Products?
Lead time for all Dikai goods is 1-2 weeks after order confirmation. For stocked goods, delivery can be made in 2 working days.
3. What's the warranty of Dikai goods?
Standard warranty is 12 months after leaving Dikai Warehouse.
4. How about your after-sales service?
For countries with distributors, we rely on our distributors for after-sales services. Dikai also provides online technical services and continuously upgraded video support.
