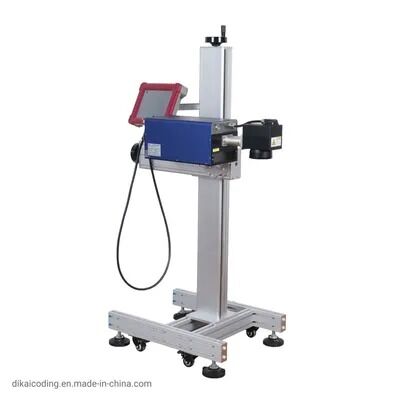

Faith Barcodes Qr Codes Laser Marking Technologies Laser Marking Machine 20W

Faith Barcodes Qr Codes Laser Marking Technologies Laser Marking Machine 20W

20W UV laser marking machine

QR code laser marking technologies

Faith Barcodes laser marking machine

Contact Us
Request A Quote
Faith Barcodes Qr Codes Laser Marking Technologies Laser Marking Machine 20W
Product Details
Model NO.:
DUS3000
Laser Visibility:
Invisible
Applicable Material:
Nonmetal
Cooling System:
Air Cooling
Technical Class:
Pulse Laser
Laser Wavelength:
UV Laser
Laser Classification:
Semiconductor Laser
Marking Method:
Scanning Marking
Marking Speed:
700 Characters Per Second
MTBF:
20,000 Hours
Wavelength:
355nm
Output Power:
5W
Marking Area:
70*70 110*110 175*175 300*300mm Optional
Scan Speed:
≥12000mm/s
Supply Voltage:
AC220V 50Hz
Power Consumption:
1200W
Storage Temperature:
-10ºC-45ºC(No Freeze)
Weight:
120KG
Dimensions:
780mm*660mm*1480mm
Highlight:

20W UV laser marking machine

,

QR code laser marking technologies

,

Faith Barcodes laser marking machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
23000
Delivery Time
5-8 working days
RELATED PRODUCTS
Good price 5W 120KG Laser Batch Coding Machine 220V Ultraviolet Laser Marking Machine online

5W 120KG Laser Batch Coding Machine 220V Ultraviolet Laser Marking Machine

Get Best Price
Good price 1200W UV Laser Marking Machine 355nm Wavelength Water Cooling For Glass online

1200W UV Laser Marking Machine 355nm Wavelength Water Cooling For Glass

Get Best Price
Good price Coding UV PCB Laser Marking Machine 1200W 355nm Wavelength online

Coding UV PCB Laser Marking Machine 1200W 355nm Wavelength

Get Best Price
Good price Printer UV Laser Marking Machine 5W 50Hz IR Beam Positioning For HDPE online Video

Printer UV Laser Marking Machine 5W 50Hz IR Beam Positioning For HDPE

Get Best Price
CONTACT US
info@dikaicoding.net
86-21-51086700
Contact Now
Product Description
Product Introduction
DIKAI DSU3000 UV laser coding machine, using a new intelligent vector control algorithm, marking speed greatly improved. The unique laser control technology can easily mark the best printing effect on the film material. Compact size, low maintenance, no consumable, to provide permanent high-quality coding. Permanent and high contrast marking to ensure product can be tracking, anti-counterfeiting and anti-channelization. New intelligent control algorithm, innovative interact, easy to learn and understand. Up to 700 characters per second. Enhanced anti-electromagnetic interference design ensure stable operation in harsh environments.

Features
▪ Up to 700 characters per second

▪ Compact size can adapt to narrow installation

▪ Permanent identification ensure trakcing

▪ Innovative interfact, esay to learn

▪ One-button startup

▪ MTBF more than 20,000 hours

▪ Non-consumable, cost saving

▪ New intelligent control algorithm


Specification
ApplicationsHDPE, Such as food, pipes, chemical products etc.
Scan ModeX.Y axial simultaneous sacn
Marking Mode9000mm/s (Depend on Materials)
Marking LaseStastic MarkMultiple products can be mark simultaneously
Laser TypeUV Laser
Wavelength355nm
Output5W
Guide LaserInfrared Beam Positioning
Marking Area70*70 110*110 175*175 300*300mm Optional
Scan Speed≥12000mm/s
Software ControllerWinCE Touch Screen
Character TypeFontsSingle/ Double Font
Bar CodesCode39/Code25/EAN-13/Code128
2D CodesQRCode & DM
GraphicPLT Input/Output
Marking ConditionsMarking StatusProduct quantity etc.
Character Size0.1mm-110mm
Input/OutputSensor/Encoder
ConnectionSD card/USB2.0/Communication interface
Laser Installation DirectionNo Limited
CoolingWater Cooling
Power&TempSupply VoltageAC220V 50Hz
Power1200W
Storage Temperature-10ºC-45ºC(No freeze)
Working Temperature
Environment ResistanceStorage Humidity10%-85% (No condensation)
Workin Humidity
Pollution DegreeNo chemicals are produces
DimensionWeight120KG
Specification780mm*660mm*1480mm
*Print characters per second, production line speed depends on packaging material and print content

Print Sample

Company Introduction
Shanghai DIKAI Coding Industry Co., Ltd was founded in 1995, and DIKAI has dedicated itself to comprehensive coding solutions provider with R&D, innovation, manufacturing, sales & service of quality coding machines & consumables. Our headquarters is located in Shanghai, China, we have 16 branches offices and many authorized distributors in domestic. Our products have been exported to more than 100 countries and regions since 2006. Adhering to the company philosophy of "Core Technology, Prominent Service", DIKAI has been committed to flexible packaging coding solutions in long term. DIKAI has accumulated more than 40 authorized patent and owns one US invention patent. Besides, we are aiming at constructing a worldwide distribution network. With intelligent solutions, we hope can become your reliable partner and bring add value to you in near future.

Exhibition


FAQ
1. Why choose Dikai?
-- Our company has dedicated to development, manufacturing and sales of qualified coding machines and consumables for 25 years. Meanwhile, we commit ourselves to satisfy every customer's different needs in coding and marking area.

2. What's the regular lead time for Dikai Products?
-- Lead time for all Dikai good is 1-2 weeks after order confirmation. For the stocked goods, delivery can be made in 2 working days.

3. What's the warranty of Dikai goods?
-- Regularly 12 months after leaving Dikai Warehouse.

4. How about your after-sales service?
-- For the countries where we have distributors, we depend on our distributor to do after sales services. Dikai also provide online technical services besides of continuously upgraded video supports.
