DK Coding, Marks Each Moment
| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | DIKAI |
| Certification: | CE |
| Model Number: | D03S |
| Minimum Order Quantity: | 1 set |
| Price: | USD $ 2700-300 / set |
| Packaging Details: | Printer & Control Box in one carton, Mounting Bracket in another carton. |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 700 sets per month |
| Name: | Thermal Transfer Overprinter | Print Head: | 32mm Width, 300 Dpi (12dots/mm) |
|---|---|---|---|
| Print Area: | Continuous: 32*100mm; Intermittent: 32*60mm | Print Speed: | Continuous: Max. 40 Meters/minute; Intermittent: 450PPM |
| Consumable: | Thermal Transfer Ribbon | After-sales Service Provided: | Overseas Third-party Support Available |
| Print Contents: | Bar Code, QR Code, Image, Variable Information, Etc. | Optional: | Mounting Bracket, Encoder, TTR Ribbon, Rubber Pad, Etc |
| Advantage: | Intermittent And Continuous Mode Combined | Warranty: | 1-Year |
| Application: | Information Coding | Interface: | USB |
| High Light: | 220V Thermal Transfer Overprinter,32x100mm Thermal Transfer Overprinter,150W Qr Code Printing Machine |
||

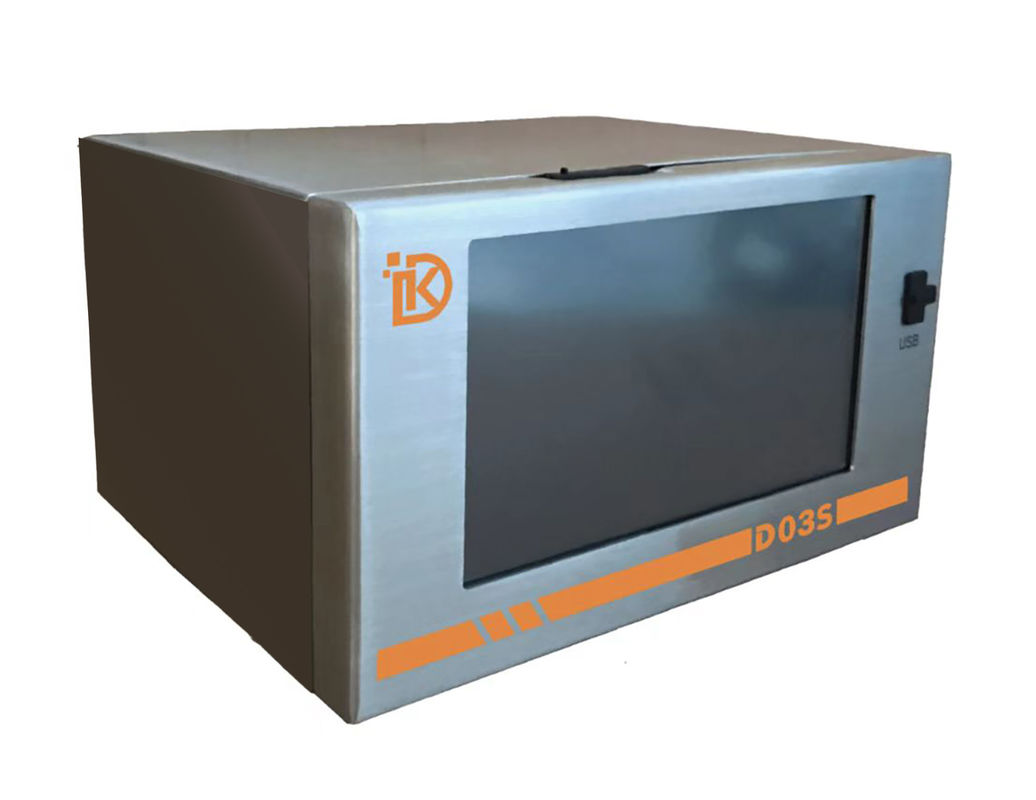

DIKAI D03S Thermal Transfer Overprinter (TTO)
Compared to traditional contact coders such as hot-stamp or roller coders, thermal transfer overprinting offers superior print quality and lower costs.
From label overprinting, to high speed digital coding on vertical bagging machines with flexible packaging, the Dikai thermal transfer printer is able to deliver fast print speeds, minimising downtime and ensuring the lowest possible cost of ownership.
Quick Details
Dikai TTO coders use thermal printheads paired with thermal transfer ribbon to apply a consistent and reliable mark on your products. The D03S and D05S models offer high speed printing of incredible looking variable text, serial numbers, barcodes, and graphics at a razor-sharp 300 DPI. Our TTO machines also feature arm ribbon control to prevent ribbon breakage, and a 600 meter length ribbon provides long run times between ribbon changes. Best of all, Dikai TTO printers minimize the ribbon gap between prints to 0.5mm or less to save ribbon and increase efficiency.
Benefits
Thermal transfer overprinters use a high-resolution thermal printhead, which melts a wax and/or resin-based ink from a very thin thermal transfer ribbon coating onto the surface of your product.
● High Quality Print:
High-Resistance Codes: Thermal transfer overprinter can be used in flexible packaging printing creates a highly resistant product that is able to withstand any chemicals, humidity, UV rays, abrasion and climatic changes that your packaging may encounter on its journey through the supply chain.
● Optimizing your improvements:
Thermal transfer overprinters have 300 DPI resolution ratios; improve the cosmetic level of your packaging; make you more outstanding and appealing among competitors.
● Optimizing your benefits:
Can print real-time date, time and batch No.; can edit print text as you want; super 650-meter ribbon reducing the frequency of changing, saving your production time; user friendly interface making it easy to operate; easy-to-learn editing software. Optimizing your Production line and reducing the cost.
● Protect your products:
Thermal transfer overprinters will not do harm to the package, extending the valid period; TTO prints clear mark avoids the product being removed from the goods shelf at an early time.
● Protect your value:
Thermal transfer overprinter has different dimensions of print head (32mm&53mm) and ribbon (22, 25, 30, 33, and 55) meet variable demands of printing; print gap of TTO can be as small as 0.5mm; super-clear and super adhesive prints protect you from customer complaints. Reduce the cost in every possible ways.
● Protect your Channel:
Variable barcodes and QR codes help track the products through distribution software, anti-counterfeit and avoid mixing, thus to protect your sales channel.
● Protect your Safety:
The cassette of thermal transfer overprinter protects the ribbon and keeps it clean, ensuring the safety of production and products, thus influencing the safety of the company in a profound way.
● Protecting our environment:
Thermal transfer overprinters are energy-saving; low consumption; environment friendly.
● High Speed:
Smooth, waxy surface of the thermal transfer ribbon creates less friction when applying your code onto the product, making it ideal for faster production lines.
● Efficient printing:
Thermal transfer overprinters are designed for reduced downtime and maximised ribbon economy keep your business running smoothly.
Application:
* Horizontal Continuous packaging machine
* Vertical Intermittent packaging machine
* Labeling Machine
* Feeder
Technical Details:
| Specification | |
|---|---|
| Print Head | Kyocera, 32mm; 300DPI |
| Print Area |
Intermittent: 32mm*60mm Continuous: 32mm*100mm |
| Ribbon Size | 33mm*500mI |
| Printing Frequency |
Intermittent: up tp 350PPM Continuous: up to 40 meters/ minute |
| Environmental Operation Temperature | 0-40℃ |
| Relative Humidity | 10%~95% (non-condensing) |
| Power | AC110~220V, 50/60Hz, 150W |
| Air Supply | 6bar/ 90PSI(MAX) dry uncontaminated |
| Weight | Print head: 8.5kg, Control box: 2.0kg |
| Dimension(L*W*H) |
Print Unit: 188mm*190mm*180mm Controller Box: 210mm*180mm*155mm |
