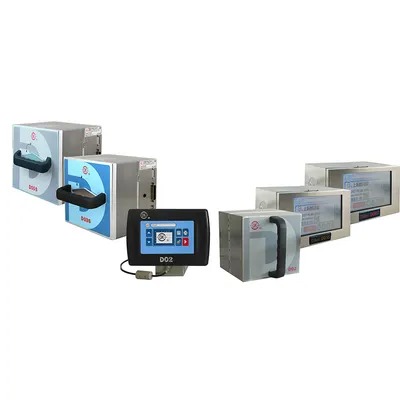

Dikai D03S 32mm Thermal Transfer Overprinter with AC 100-240V Power Supply and 6 Bar Air Supply for Smart Coding

Dikai D03S 32mm Thermal Transfer Overprinter with AC 100-240V Power Supply and 6 Bar Air Supply for Smart Coding
Dikai D03S 32mm Thermal Transfer Overprinter with AC 100-240V Power Supply and 6 Bar Air Supply for Smart Coding Dikai D03S 32mm Thermal Transfer Overprinter with AC 100-240V Power Supply and 6 Bar Air Supply for Smart Coding Dikai D03S 32mm Thermal Transfer Overprinter with AC 100-240V Power Supply and 6 Bar Air Supply for Smart Coding
Basic Information
Brand Name: Dikai
Certification: CE Certification
Minimum Order Quantity: 1
Price: 3000
Get Best Price Contact Now
Model NO.: D03S After-sales Service: Online Tech Support
Warranty: One Year Type: Thermal Foam Coding Machine
Usage: Daily Industrial, Chemical Products, Drug, Food Automatic Grade: Fully Automatic
Principle Of Classification: Thermal Transfer Overprint Application Of Classification: Thermal Transfer Overprinter
Working Patterns: On-Line Supplies: TTR
Packaging: Box Use: Barcode Printer
Black Print Speed: 40 M/Min Max. Resolution: 300dpi
Print Head: 32mm Width, 300 Dpi (12 Dots/mm) Print Area: Continuous: 32*100mm; Intermittent: 32*60mm
Print Speed: Continuous: Max. 40 Meters/Minute; Intermittent: 4 Consumable: Thermal Transfer Ribbon
After-Sales Service Provided: Overseas Third-Party Support Available Print Contents: Bar Code, Qr Code, Image, Variable Information, Et
Optional: Mounting Bracket, Encoder, TTR Ribbon, Rubber Pad Advantage: Intermittent And Continuous Mode Combined
Supply Ability: 700 Sets Per Month Product Name: Dikai D03s Thermal Transfer Printer
Trademark: Dikai Transport Package: Carton Box
Specification: 32*60mm Origin: Shanghai
HS Code: 8456110090
Highlight:

32mm thermal transfer overprinter

,

thermal transfer overprinter with AC power supply

,

smart coding thermal transfer overprinter

Product Description

DK-D03S Thermal Transfer Overprinter

DIKAI D03S Thermal Transfer Printer was designed by our own R&D department. it was released in 2013, intermittent and continuous mode combined in one machine, suitable for both horizontal and vertical packing machines. D03S adpots 300dpi printhead to print bar codes, QR codes,  dates, real time, graphics, pictures, logos and other variable information directly onto packaging, substrate and other materials. The size, position and content of information can be fixed or altered at the D03S user interface.

S Series Advantages: Bi-moto control, up to 0.1mm precise print gap; wider print speed range, 20mm/s to max 670mm/s; add ribbon save modes, improve the usage rate; suitable for automatic material handing line, avoid miss prints and print position deviation, add network interface can communicate to related system.



Features
▪ Printhead 32mm, 300 DPI resolution

▪ Print real time, date and lot number

▪ Max 500m ribbon length reduce machine downtime

▪ Ribbon save mode

▪ Print variable QR Code, barcode, logo, image, etc.

▪ Easy to learn designer program

▪ Ribbon Cassette






Product Parameters
 D03S IntermittentD03S Continuous
Print Head32mm width, 300dpi (12 dots/mm)
Print Area32mmx60mm32mmx150mm
Print Speed6-20m/minup to 40m/min
Frequencymax 300 PPMmax 300 PPM
Ribbon Length500m
Ribbon Width22mm-33mm
Interface VoltageUSB, RS232, Ethernet AC 100-240V 50/60Hz
Power200W
Work Temperature0-40ºC
Relative Humidity10%-95% (non condensity)
Air Supply6 bar/90psi (max), dry, non-polluted air
WeightPrinter Unit: 8.5KG, Controller: 2.0KG
Language AvailableEnglish, French, Russian, German, Spanish, Korea, Jananese, Arabic,Italian, Portuguese, Chinese,etc
DimensionPrinter Unit: 188x190x180mm Controller: 175x235x110mm
Printing Sample



Company Profile

Shanghai DIKAI Coding Industry Co., Ltd was founded in 1995, and DIKAI has dedicated itself to comprehensive coding solutions provider with R&D, innovation, manufacturing, sales & service of quality coding machines & consumables. Our headquarters is located in Shanghai, China, we have 16 branches offices and many authorized distributors in domestic. Our products have been exported to more than 100 countries and regions since 2006. Adhering to the company philosophy of "Core Technology, Prominent Service", DIKAI has been committed to flexible packaging coding solutions in long term. DIKAI has accumulated more than 40 authorized patent and owns one US invention patent. Besides, we are aiming at constructing a worldwide distribution network. With intelligent solutions, we hope can become your reliable partner and bring add value to you in near future.

Packaging & Shipping

FAQ

1. Why choose Dikai?

-- Our company has dedicated to development, manufacturing and sales of qualified coding machines and consumables for 25 years. Meanwhile, we commit ourselves to satisfy every customer's different needs in coding and marking area.

2. What's the regular lead time for Dikai Products?
-- Lead time for all Dikai good is 1-2 weeks after order confirmation. For the stocked goods, delivery can be made in 2 working days.

3. What's the warranty of Dikai goods?
-- Regularly 12 months after leaving Dikai Warehouse.

4. How about your after-sales service?
-- For the countries where we have distributors, we depend on our distributor to do after sales services. Dikai also provide online technical services besides of continuously upgraded video supports.
